These multicore overall screened cables have individually insulated cores laid up in a Foil& Braid screen. These cables are suitable for RS-232 and RS-423 applications.

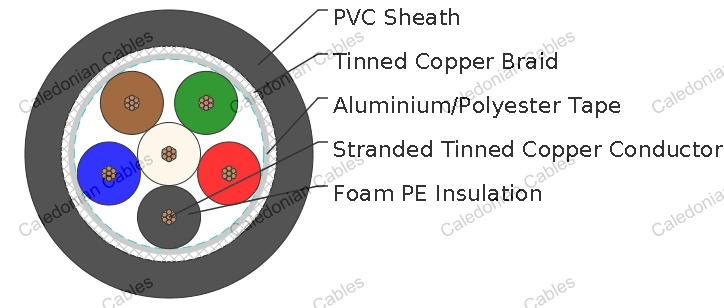

Conductor: Tinned copper wire. Insulation: Foam PE. Overall Screen1: Aluminium/Polyester tape. Overall Screen2: Tinned copper braid, 65% coverage. Sheath: PVC (V type)/LSZH (H type). Insulation Colour: Black, White, Red, Green, Brown, Blue.
| AWG | 28 | |
|---|---|---|
| CONDUCTOR CONSTRUCTION | 7x0.127 | |
| UL STYLE | 2919 | |
| MAXIMUM CONDUCTOR RESISTANCE | Ω/KM | 148.6 |
| VOLTAGE RATING | V | 30 |
| NOMINAL CAPACITANCE CONDUCTOR TO CONDUCTOR | PF/M | 39 |
| NOMINAL CAPACITANCE CONDUCTOR TO SCREEN | PF/M | 72 |
| BENDING RADIUS | 10xOverall Diameter | |
| OPERATING TEMPERATURE | ℃ | -30~80 |
| ORDERING CODE | NO. OF CORES | INSULATION THICKNESS | SHEATH THICKNESS | OVERALL DIAMETER |
|---|---|---|---|---|
| MM | MM | MM | ||
| BE119791V | 6 | 0.4 | 0.6 | 5.7 |
| BE119791H | 6 | 0.4 | 0.6 | 5.7 |
