These multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for RS232 applications, used as audio, control and instrumentation cables.
Conductor : Tinned copper wire.
Insulation : Semi-Rigid PVC.
Overall Screen : Aluminium/Polyester tape.
Drain Wire : Tinned copper wire.
Sheath : PVC (V type)/LSZH (H type).
Insulation Colour : Black/Red.
| AWG | 24 | |
|---|---|---|
| Conductor Construction | 7x0.2 | |
| UL Style | 2464 | |
| Maximum Conductor Resistance | Ω/km | 85 |
| Voltage Rating | V | 300 |
| Nominal Capacitance Conductor to Conductor | pF/m | 131 |
| Nominal Capacitance Conductor to Screen | pF/m | 243 |
| Bending Radius | 10xOverall Diameter | |
| Operating Temperature | ℃ | -30~80 |
| Ordering Code | No. of Pairs | Insulation Thickness | Sheath Thickness | Overall Diameter |
|---|---|---|---|---|
| mm | mm | mm | ||

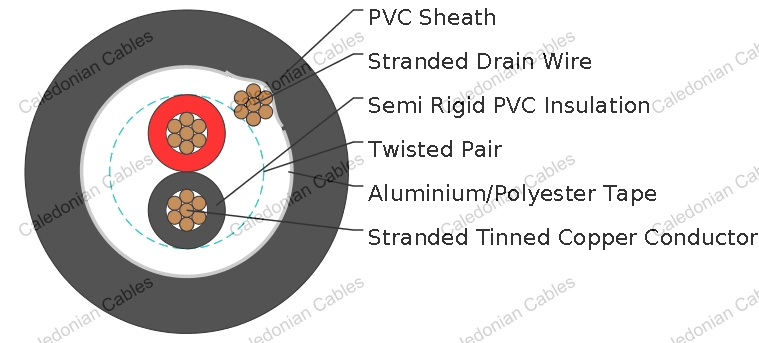

| BE119501V | 1 | 0.25 | 0.81 | 4.0 |

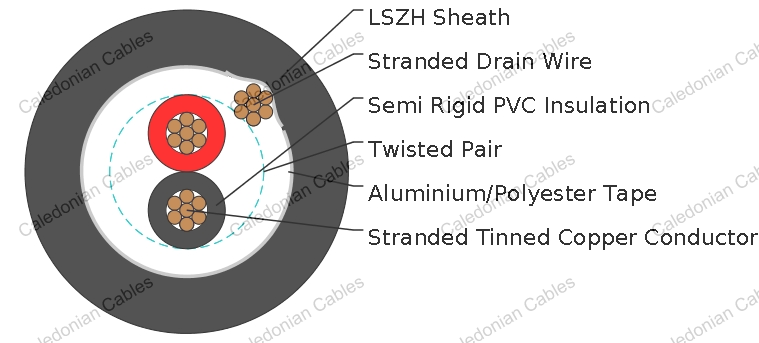

| BE119501H | 1 | 0.25 | 0.81 | 4.0 |
