These multicore overall screened cables have individually insulated cores laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for RS232 applications, used as audio, control and instrumentation cables.

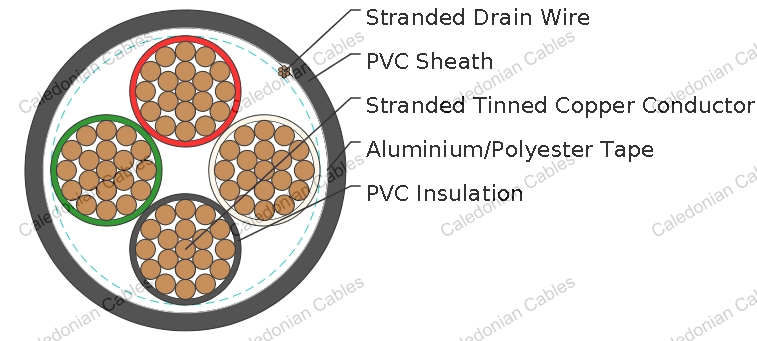

Conductor: Tinned copper wire. Insulation: Semi-Rigid PVC. Overall Screen: Aluminium/Polyester Tape. Drain Wire: Stranded Tinned Copper. Sheath: PVC (V type)/LSZH (H type). Insulation Colour: Red, Green, Black, White.
| AWG | 18 | |
|---|---|---|
| CONDUCTOR CONSTRUCTION | 19x0.254 | |
| UL STYLE | 2464 | |
| MAXIMUM CONDUCTOR RESISTANCE | Ω/KM | 23 |
| VOLTAGE RATING | V | 300 |
| NOMINAL CAPACITANCE CONDUCTOR TO CONDUCTOR | PF/M | 131 |
| NOMINAL CAPACITANCE CONDUCTOR TO SCREEN | PF/M | 236 |
| BENDING RADIUS | 10xOverall Diameter | |
| OPERATING TEMPERATURE | ℃ | -20~80 |
| ORDERING CODE | NO. OF CORES | INSULATION THICKNESS | SHEATH THICKNESS | OVERALL DIAMETER |
|---|---|---|---|---|
| MM | MM | MM | ||
| BE119418V | 4 | 0.28 | 0.89 | 6.2 |
| BE119418H | 4 | 0.28 | 0.89 | 6.2 |
