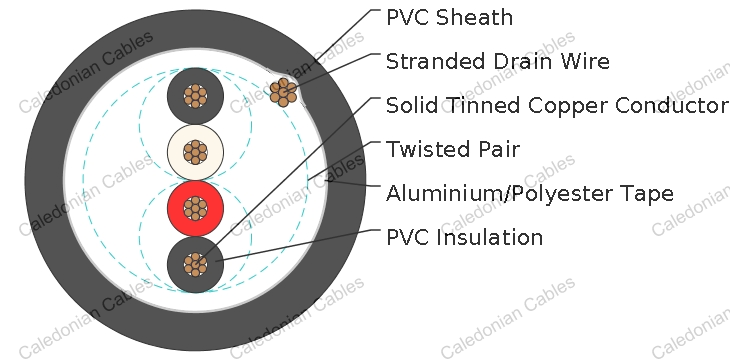

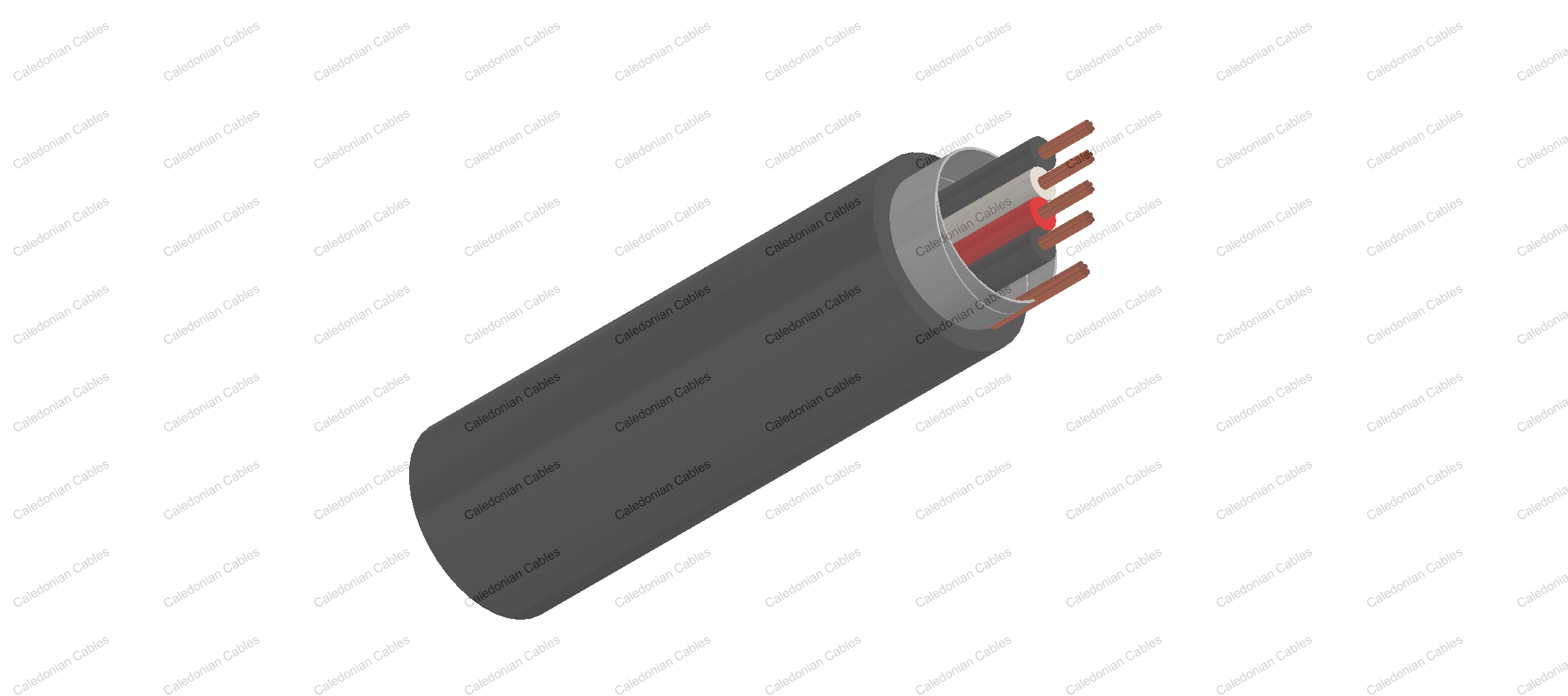

These multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for used as audio, control and instrumentation cables.
Conductor: Tinned copper wire.
Insulation: PVC.
Overall Screen: Aluminium/Polyester tape.
Drain Wire: Tinned copper wire.

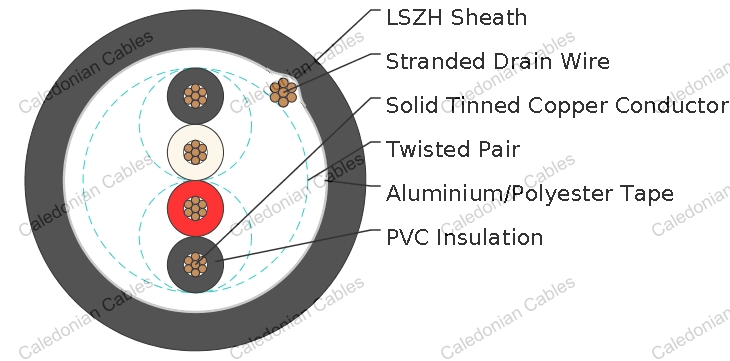

Sheath: PVC (V type)/LSZH (H type).
Insulation Colour: Black/Red, Black/White.
| AWG | 22 | |
|---|---|---|
| CONDUCTOR CONSTRUCTION | Solid | |
| UL STYLE | 2464 | |
| MAXIMUM CONDUCTOR RESISTANCE | Ω/KM | 54.8 |
| VOLTAGE RATING | V | 300 |
| NOMINAL CAPACITANCE CONDUCTOR TO CONDUCTOR | PF/M | 115 |
| NOMINAL CAPACITANCE CONDUCTOR TO SCREEN | PF/M | 164 |
| BENDING RADIUS | 10xOverall Diameter | |
| OPERATING TEMPERATURE | ℃ | -20~80 |
| ORDERING CODE | NO. OF CORES | INSULATION THICKNESS | SHEATH THICKNESS | OVERALL DIAMETER |
|---|---|---|---|---|
| MM | MM | MM | ||
| BE119302V | 2 | 0.33 | 0.81 | 6.2 |
| BE119302H | 2 | 0.33 | 0.81 | 6.2 |
