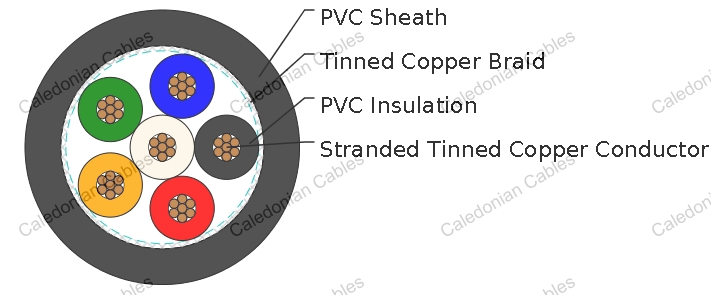

These multicore overall screened cables have individually insulated cores laid up in a tinned copper braid screen, suitable for used as control cables.
Conductor: Tinned copper wire.
Insulation: PVC.
Overall Screen: Tinned copper braid, 85% coverage.

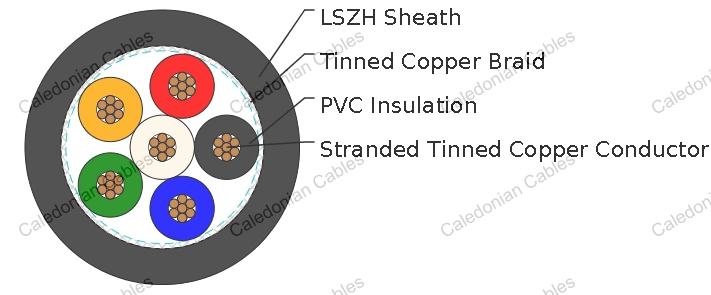

Sheath: PVC (V type)/LSZH (H type).
Insulation Colour: Black, White, Red, Green, Orange, Blue.
| AWG | 20 | |
|---|---|---|
| CONDUCTOR CONSTRUCTION | 7x0.32 | |
| UL STYLE | 2464 | |
| MAXIMUM CONDUCTOR RESISTANCE | Ω/KM | 34.1 |
| VOLTAGE RATING | V | 300 |
| NOMINAL CAPACITANCE CONDUCTOR TO CONDUCTOR | PF/M | 85 |
| NOMINAL CAPACITANCE CONDUCTOR TO SCREEN | PF/M | 164 |
| BENDING RADIUS | 10xOverall Diameter | |
| OPERATING TEMPERATURE | ℃ | -20~80 |
| ORDERING CODE | NO. OF CORES | INSULATION THICKNESS | SHEATH THICKNESS | OVERALL DIAMETER |
|---|---|---|---|---|
| MM | MM | MM | ||
| BE119260V | 6 | 0.41 | 0.81 | 7.8 |
| BE119260H | 6 | 0.41 | 0.81 | 7.8 |
