These multicore overall screened cables have individually insulated cores laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for used as audio, control and instrumentation cables.

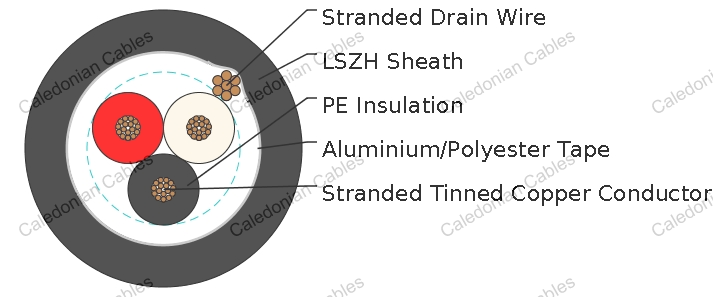

Conductor: Tinned copper wire. Insulation: PE. Overall Screen: Aluminium/Polyester tape. Drain Wire: Tinned copper wire. Sheath: PVC (V type)/LSZH (H type). Insulation Colour: Black, Red, Clear.
| AWG | 18 | |
|---|---|---|
| CONDUCTOR CONSTRUCTION | 16x0.25 | |
| UL STYLE | 2093 | |
| MAXIMUM CONDUCTOR RESISTANCE | Ω/KM | 23 |
| VOLTAGE RATING | V | 300 |
| NOMINAL CAPACITANCE CONDUCTOR TO CONDUCTOR | PF/M | 79 |
| NOMINAL CAPACITANCE CONDUCTOR TO SCREEN | PF/M | 157 |
| BENDING RADIUS | 10xOverall Diameter | |
| OPERATING TEMPERATURE | ℃ | -20~60 |
| ORDERING CODE | NO. OF CORES | INSULATION THICKNESS | SHEATH THICKNESS | OVERALL DIAMETER |
|---|---|---|---|---|
| MM | MM | MM | ||
| BE118770V | 3 | 0.46 | 0.84 | 6.3 |
| BE118770H | 3 | 0.46 | 0.84 | 6.3 |
