These multicore overall screened cables have individually insulated cores laid up in a tinned copper braid screen, suitable for used as communication and instrumentation cables.

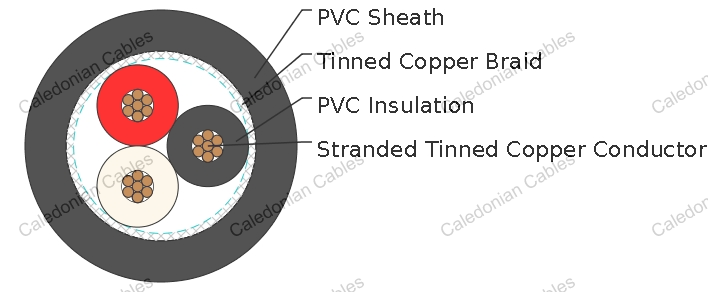

Conductor: Tinned copper wire. Insulation: PVC. Overall Screen: Tinned copper braid, 70% coverage. Drain Wire: Stranded Tinned Copper. Sheath: PVC (V type)/LSZH (H type). Insulation Colour: Black, Red, White.
| AWG | 22 | |
|---|---|---|
| CONDUCTOR CONSTRUCTION | 7x0.254 | |
| UL STYLE | 2095 | |
| MAXIMUM CONDUCTOR RESISTANCE | Ω/KM | 54.8 |
| VOLTAGE RATING | V | 300 |
| NOMINAL CAPACITANCE CONDUCTOR TO CONDUCTOR | PF/M | 112 |
| NOMINAL CAPACITANCE CONDUCTOR TO SCREEN | PF/M | 197 |
| BENDING RADIUS | 10xOverall Diameter | |
| OPERATING TEMPERATURE | ℃ | -20~80 |
| ORDERING CODE | NO. OF CORES | INSULATION THICKNESS | SHEATH THICKNESS | OVERALL DIAMETER |
|---|---|---|---|---|
| MM | MM | MM | ||
| BE118735V | 3 | 0.38 | 0.64 | 5.1 |
| BE118735H | 3 | 0.38 | 0.64 | 5.1 |
