These multicore overall screened cables have individually insulated cores laid up in an aluminum/polyester tape with a drain wire. These cables are suitable for used as audio, control and instrumentation cables.

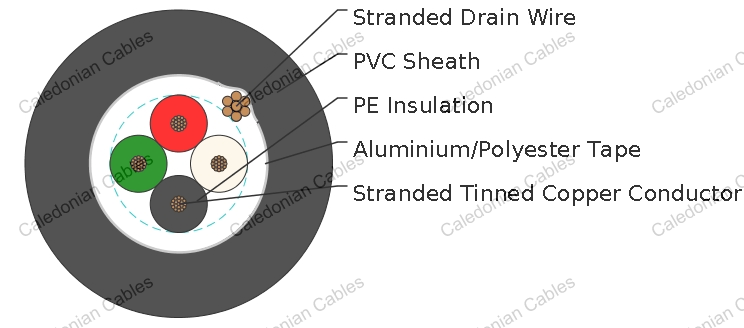

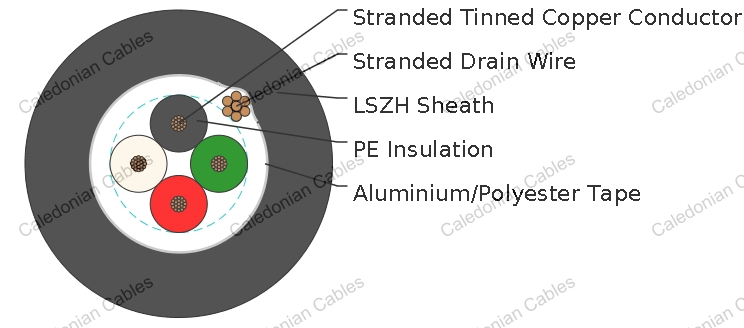

Conductor: Tinned copper wire. Insulation: PE. Overall Screen: Aluminium/Polyester tape. Drain Wire: Tinned copper covered steel. Sheath: PVC (V type)/LSZH (H type). Insulation Colour: Black, Red, Green, Clear.
| AWG | 22 | |
|---|---|---|
| CONDUCTOR CONSTRUCTION | 19x0.16 | |
| UL STYLE | 2094 | |
| MAXIMUM CONDUCTOR RESISTANCE | Ω/KM | 54.8 |
| VOLTAGE RATING | V | 300 |
| NOMINAL CAPACITANCE CONDUCTOR TO CONDUCTOR | PF/M | 72 |
| NOMINAL CAPACITANCE CONDUCTOR TO SCREEN | PF/M | 138 |
| BENDING RADIUS | 10xOverall Diameter | |
| OPERATING TEMPERATURE | ℃ | -40~75 |
| ORDERING CODE | NO. OF CORES | INSULATION THICKNESS | SHEATH THICKNESS | OVERALL DIAMETER |
|---|---|---|---|---|
| MM | MM | MM | ||
| BE118729V | 4 | 0.41 | 1.30 | 6.5 |
| BE118729H | 4 | 0.41 | 1.30 | 6.5 |
