These cables have individually screened pairs laid up and a tinned copper drain wire. These cables are suitable for used as audio, control and computer cables.

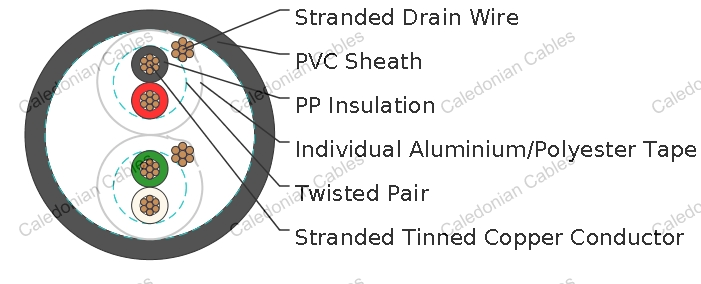

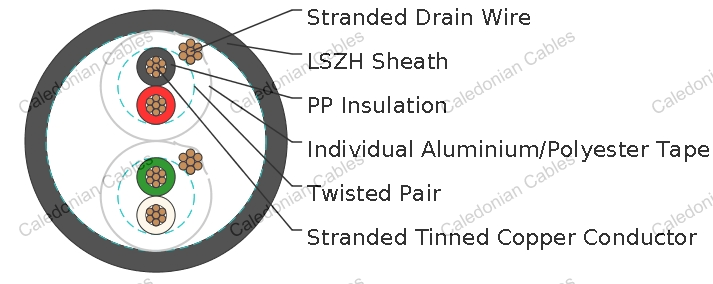

Conductor: Tinned copper wire.
Insulation: PP.
Individual Screen: Aluminium/Polyester Tape.
Drain Wire: Tinned copper wire.
Sheath: PVC/LSZH.
Insulation Colour: Red & Black, Green & White.
| AWG | 22 | |
|---|---|---|
| CONDUCTOR CONSTRUCTION | 7x0.254 | |
| MAXIMUM CONDUCTOR RESISTANCE | Ω/KM | 54.8 |
| VOLTAGE RATING | V | 300 |
| NOMINAL CAPACITANCE CONDUCTOR TO CONDUCTOR | PF/M | 108 |
| NOMINAL CAPACITANCE CONDUCTOR TO SCREEN | PF/M | 203 |
| BENDING RADIUS | 10xOverall Diameter | |
| OPERATING TEMPERATURE | ℃ | -20~60 |
| ORDERING CODE | NO. OF PAIRS | INSULATION THICKNESS | SHEATH THICKNESS | OVERALL DIAMETER |
|---|---|---|---|---|
| MM | MM | MM | ||
| BE118723V | 2 | 0.2 | 0.5 | 4.3 |
| BE118723H | 2 | 0.2 | 0.5 | 4.3 |
