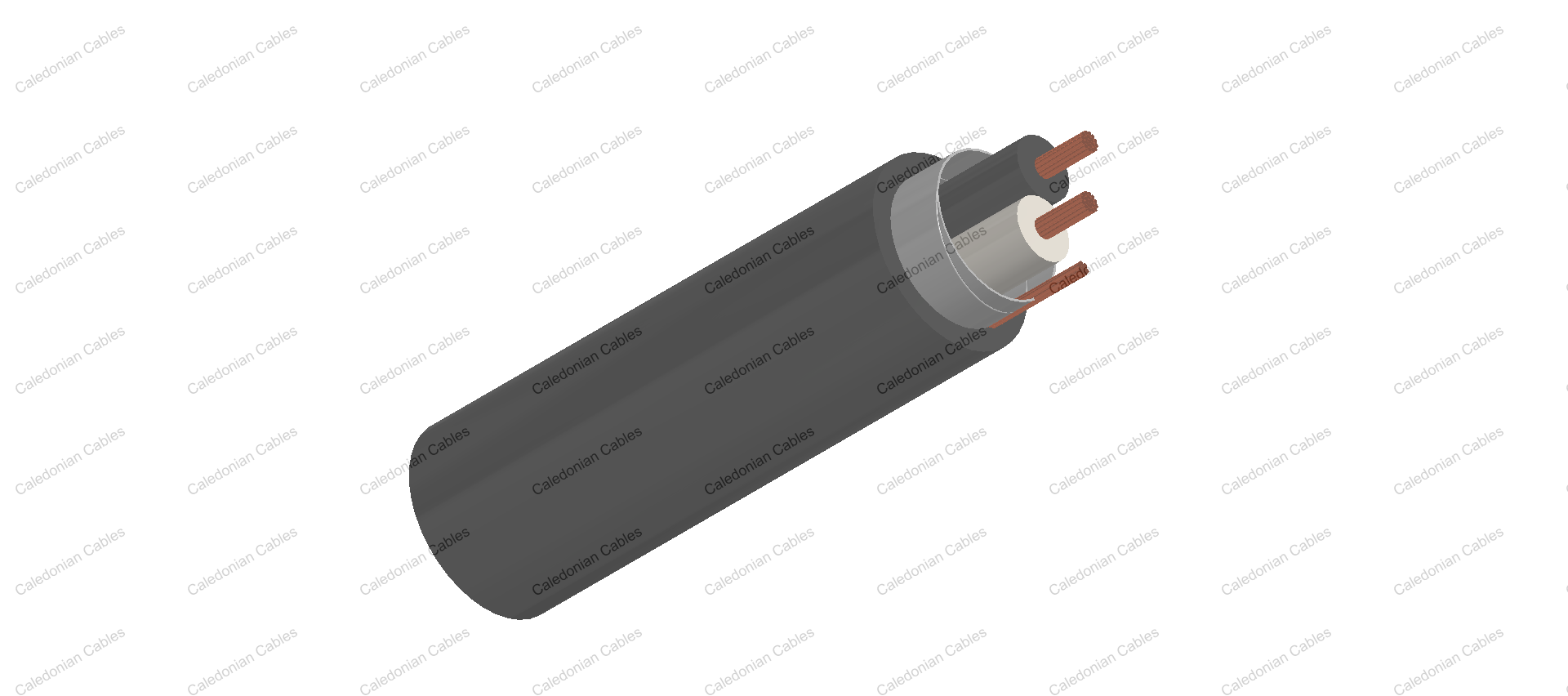

These multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for used as audio, control and instrumentation cables.

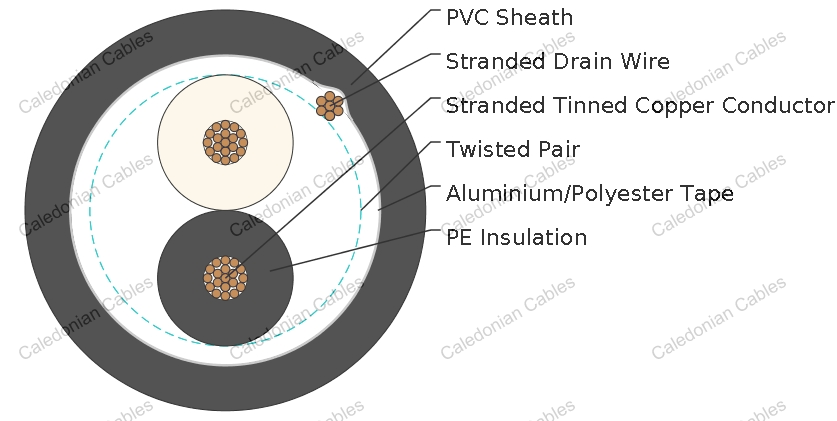

Conductor: Tinned copper wire.
Insulation: PE.
Overall Screen: Aluminium/Polyester Tape.
Drain Wire: Tinned copper wire.
Sheath: PVC/LSZH.
Insulation Colour: Black, Clear.
| AWG | 12 | |
|---|---|---|
| CONDUCTOR CONSTRUCTION | 19x0.46 | |
| UL STYLE | 20253 | |
| MAXIMUM CONDUCTOR RESISTANCE | Ω/KM | 8 |
| VOLTAGE RATING | V | 600 |
| NOMINAL CAPACITANCE CONDUCTOR TO CONDUCTOR | PF/M | 82 |
| NOMINAL CAPACITANCE CONDUCTOR TO SCREEN | PF/M | 161 |
| BENDING RADIUS | 10xOverall Diameter | |
| OPERATING TEMPERATURE | ℃ | -20~80 |
| ORDERING CODE | NO. OF PAIRS | INSULATION THICKNESS | SHEATH THICKNESS | OVERALL DIAMETER |
|---|---|---|---|---|
| MM | MM | MM | ||
| BE118718V | 1 | 0.94 | 0.86 | 10.2 |
| BE118718H | 1 | 0.94 | 0.86 | 10.2 |
