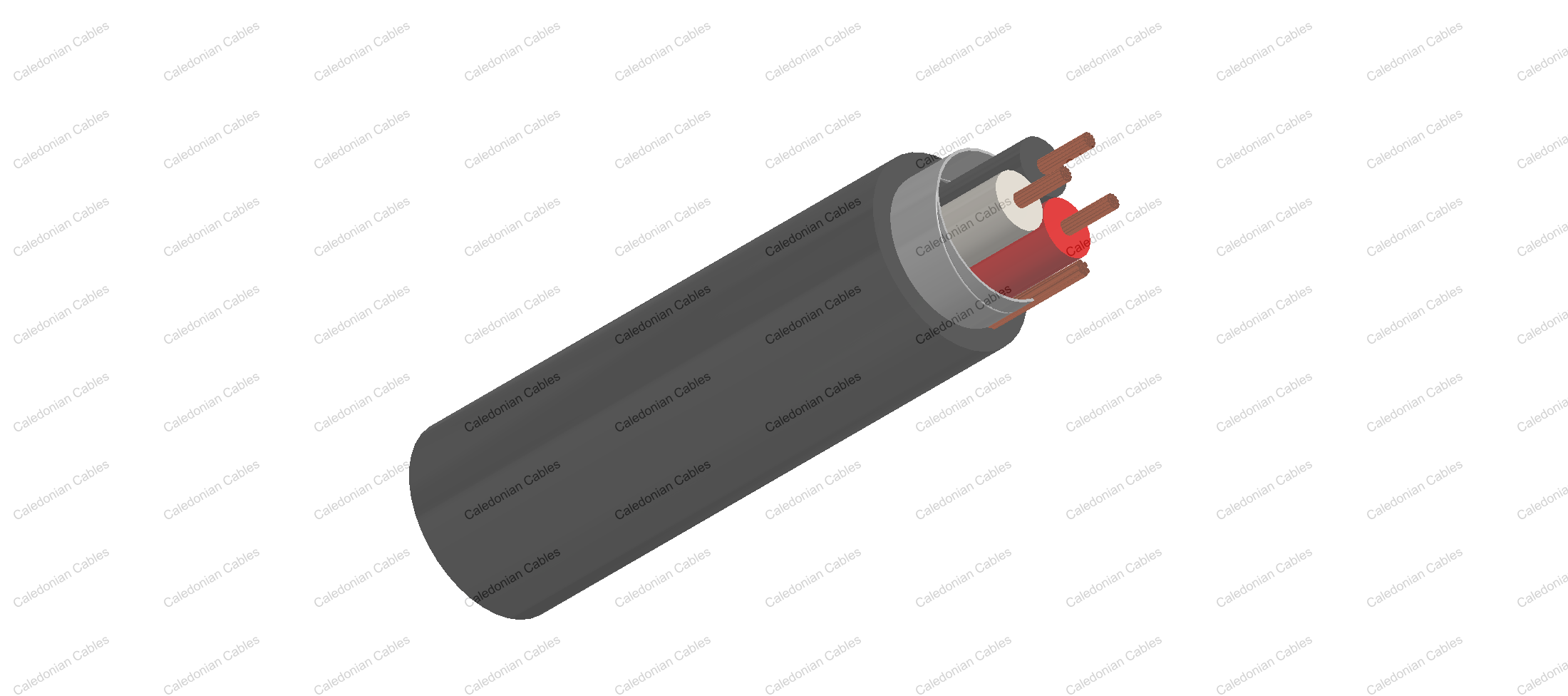

These multicore overall screened cables have individually insulated cores laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for used as audio, control and instrumentation cables.

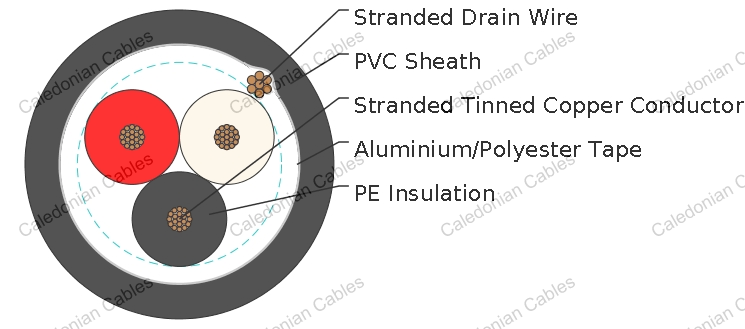

Conductor: Tinned copper wire. Insulation: PE. Overall Screen: Aluminium/Polyester tape. Drain Wire: Tinned copper wire. Sheath: PVC (V type)/LSZH (H type). Insulation Colour: Black, Red, Clear.
| AWG | 16 | |
|---|---|---|
| CONDUCTOR CONSTRUCTION | 19x0.287 | |
| UL STYLE | 20253 | |
| MAXIMUM CONDUCTOR RESISTANCE | Ω/KM | 15.8 |
| VOLTAGE RATING | V | 600 |
| NOMINAL CAPACITANCE CONDUCTOR TO CONDUCTOR | PF/M | 85 |
| NOMINAL CAPACITANCE CONDUCTOR TO SCREEN | PF/M | 164 |
| BENDING RADIUS | 10xOverall Diameter | |
| OPERATING TEMPERATURE | ℃ | -20~60 |
| ORDERING CODE | NO. OF CORES | INSULATION THICKNESS | SHEATH THICKNESS | OVERALL DIAMETER |
|---|---|---|---|---|
| MM | MM | MM | ||
| BE118618V | 3 | 0.79 | 0.79 | 8.3 |
| BE118618H | 3 | 0.79 | 0.79 | 8.3 |
