These multipair overall screened cables have pairs laid up in a braid screen. These cables are suitable for used as audio, control and instrumentation cables.

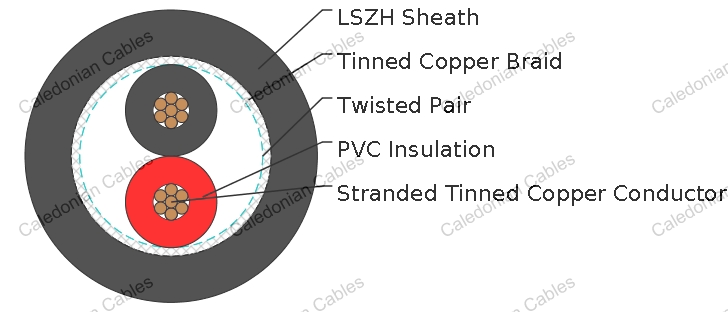

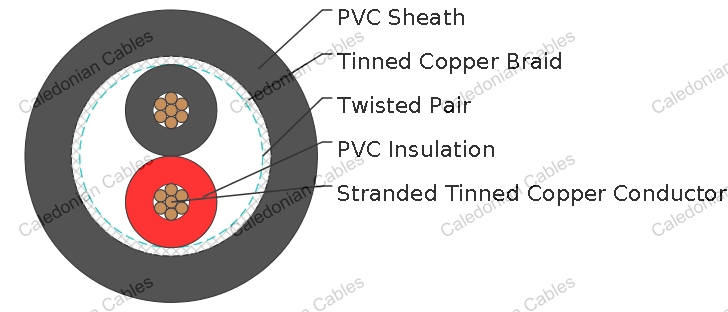

Conductor: Tinned copper wire. Insulation: PVC. Separator: Polyester Tape. Overall Screen: Tinned copper braid, 86% coverage. Sheath: PVC (V type)/LSZH (H type). Insulation Colour: Black/Red.
| AWG | 22 | |
|---|---|---|
| CONDUCTOR CONSTRUCTION | 7x0.254 | |
| UL STYLE | 2095 | |
| MAXIMUM CONDUCTOR RESISTANCE | Ω/KM | 54.8 |
| VOLTAGE RATING | V | 300 |
| NOMINAL CAPACITANCE CONDUCTOR TO CONDUCTOR | PF/M | 161 |
| NOMINAL CAPACITANCE CONDUCTOR TO SCREEN | PF/M | 282 |
| BENDING RADIUS | 10xOverall Diameter | |
| OPERATING TEMPERATURE | ℃ | -20~80 |
| ORDERING CODE | NO. OF CORES | INSULATION THICKNESS | SHEATH THICKNESS | OVERALL DIAMETER |
|---|---|---|---|---|
| MM | MM | MM | ||
| BE118441V | 1 | 0.38 | 0.64 | 4.9 |
| BE118441H | 1 | 0.38 | 0.64 | 4.9 |
