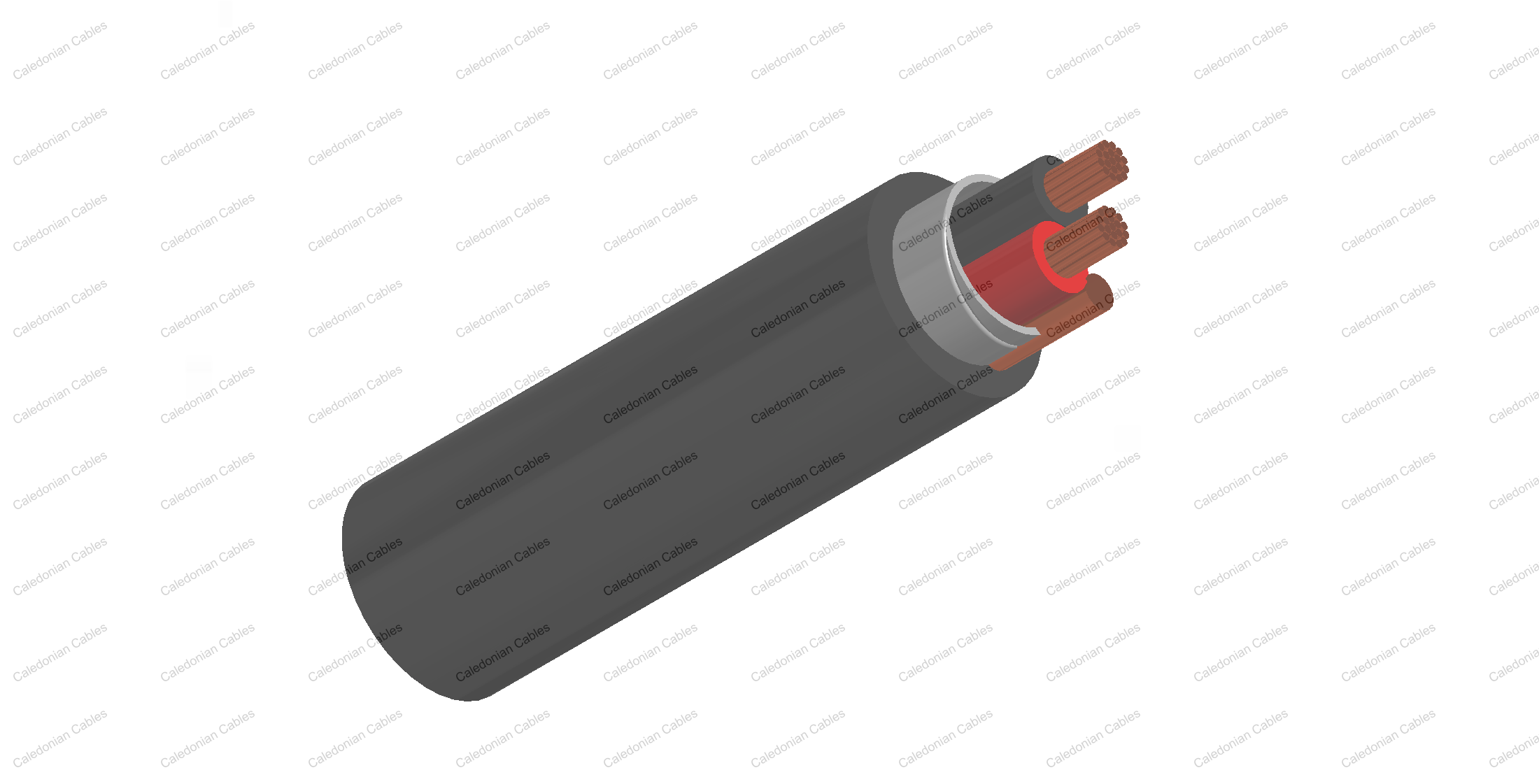

Single Pair Overall Screen - Belden Equivalent 5200FE

Intercom/PA Systems, Sound/Audio Systems

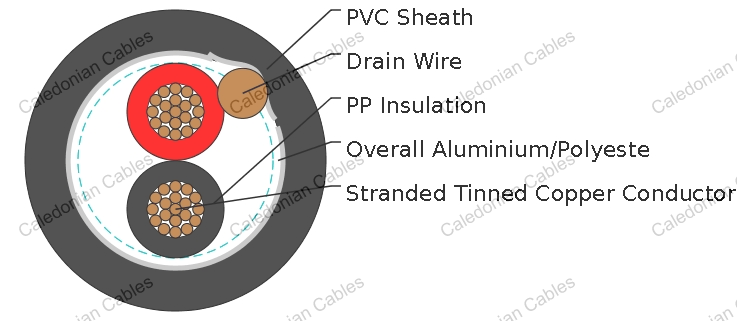

Conductor : Stranded copper.

Insulation : PP.

Drain Wire : Tinned copper wire.

Overall Screen1 : Aluminium/Polyester tape.

Sheath : PVC.

Insulation Colour : Black & Red.

AWG		16
UL Flammability		1666
Nominal Conductor DCR	Ohm/1000ft	14.4
Nominal Inductance	μH/ft	0.14
Voltage Rating	V	300
Nominal Capacitance Conductor to Conductor	pF/ft	58
Nominal Capacitance Conductor to Screen	pF/ft	114
Bending Radius		10xOverall Diameter
Operating Temperature	℃	-20~75

Ordering Code	No. of Pairs	Insulation Thickness	Sheath Thickness	Overall Diameter
		mm	mm	mm
BE115200H	1	0.20	0.43	4.78
