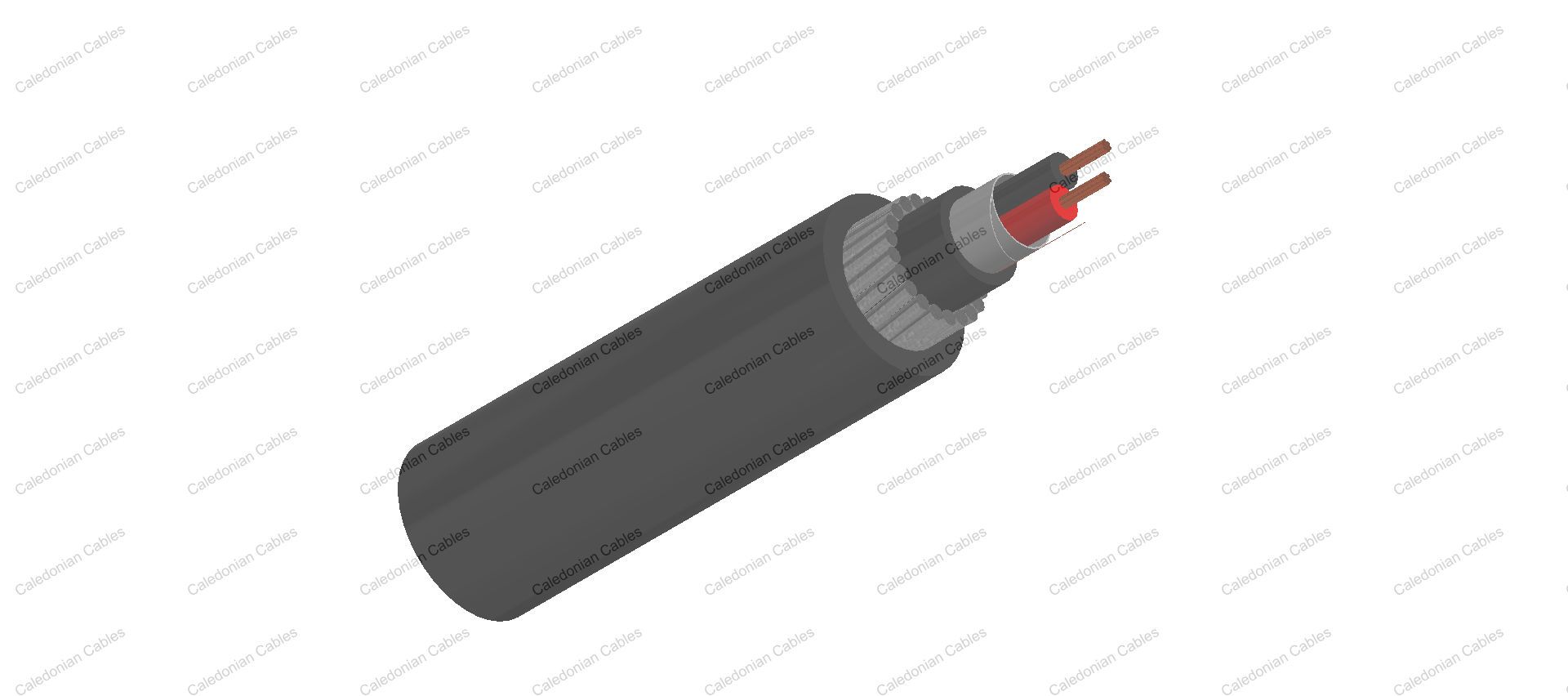

Multipair Overall Screened Armoured Cables-Belden Equivalent 26514

These multipair overall screened armoured cables provide excellent protections. They are ACIC armoured cables, used as instrumentation cables.

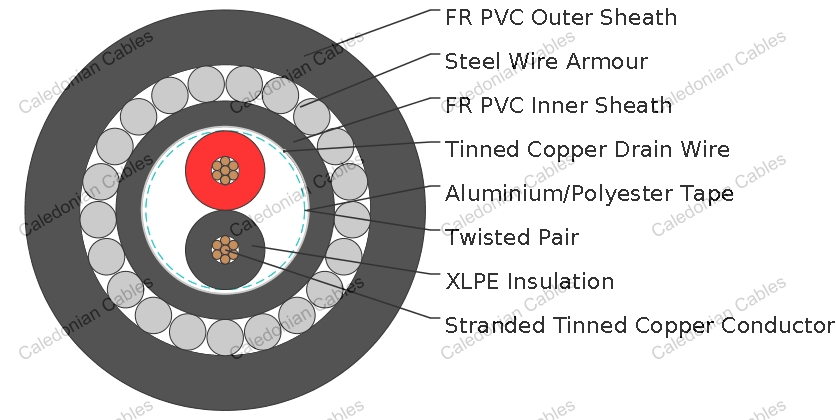

Conductor: Tinned copper wire

Insulation: XLPE.

Overall Screen: Aluminium/ Polyester tape.

Drain Wire: 20 AWG (7X28) tinned copper wire.

Inner Sheath: FR PVC.

Armour: Steel wire armour

Outer Sheath: FR PVC.

Insulation Colour: Black, Red. Other colours are available upon your request.

AWG		18
CONDUCTOR CONSTRUCTION		7x26
NOMINAL CONDUCTOR DC RESISTANCE @20℃	Ω/KM	22
NOMINAL OUTER SHIELD DC RESISTANCE @ 20℃	Ω/KM	33
VOLTAGE RATING	V	300
BENDING RADIUS		12xOverall Diameter
OPERATING TEMPERATURE	℃	-40~90

ORDERING CODE	NO. OF PAIRS	INSULATION THICKNESS	SHEATH THICKNESS	OVERALL DIAMETER
		MM	MM	MM
BE1126514V SWA	1	0.7	1.5	12.64±1
