Multipair Overall Screened Armoured Cables-Belden Equivalent 26503

Application

These multipair overall screened armoured cables provide excellent protections. They are ACIC armoured cables, used as instrumentation cables.

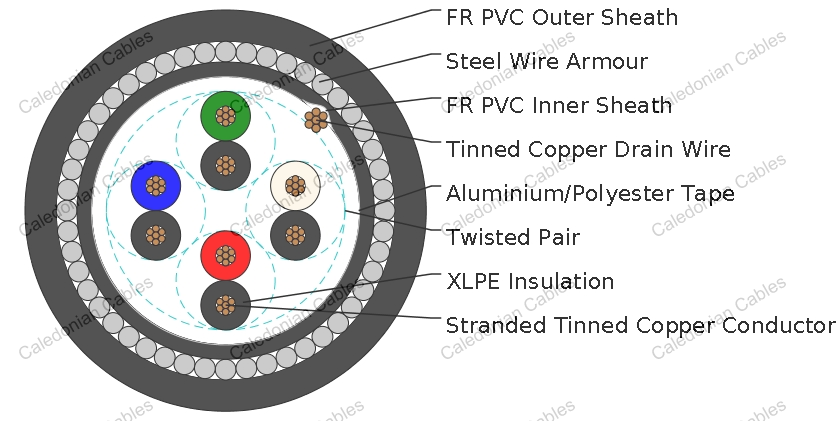

Construction

Conductor: Tinned copper wire.

Insulation: XLPE.

Overall Screen: Aluminium/Polyester tape.

Drain Wire: 18 AWG (7X26) tinned copper wire.

Inner Sheath: FR PVC.

Armour: Steel wire armour
Outer Sheath: FR PVC

Insulation Colour: Black/Red and Numbered 1, Black/White and Number 2, Black/Green and Number 3, Black/Blue and Number 4. Other colours are available upon your request.

Electrical & Mechanical Characteristics

Dimensions
