Multipair Overall Screened Armoured Cables-Belden Equivalent 26500

These multipair overall screened armoured cables provide excellent protections. They are ACIC armoured cables, used as instrumentation cables.

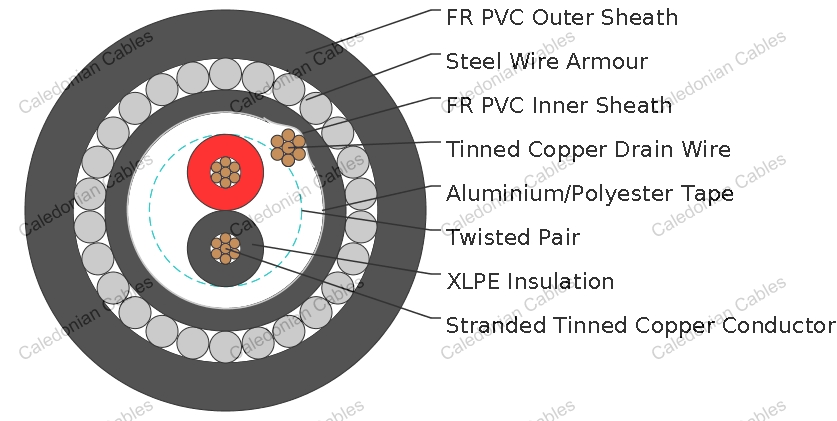

Conductor: Conductor: Tinned copper wire

Insulation: XLPE.

Overall Screen: Aluminium/ Polyester tape.

Drain Wire: 18 AWG (7X26) tinned copper wire

Inner Sheath: FR PVC.

Armour: Steel wire armour.

Outer Sheath: FR PVC.

Insulation Colour: Black, Red. Other colours are available upon your request.

AWG		16
CONDUCTOR CONSTRUCTION		7x24
NOMINAL CONDUCTOR DC RESISTANCE @20℃	Ω/KM	14
NOMINAL OUTER SHIELD DC RESISTANCE @ 20℃	Ω/KM	13
VOLTAGE RATING	V	300
BENDING RADIUS		11xOverall Diameter
OPERATING TEMPERATURE	℃	-40~90

ORDERING CODE	NO. OF PAIRS	INSULATION THICKNESS	SHEATH THICKNESS	OVERALL DIAMETER
		MM	MM	MM
BE1126500V SWA	1	0.7	1.5	13.24±1
