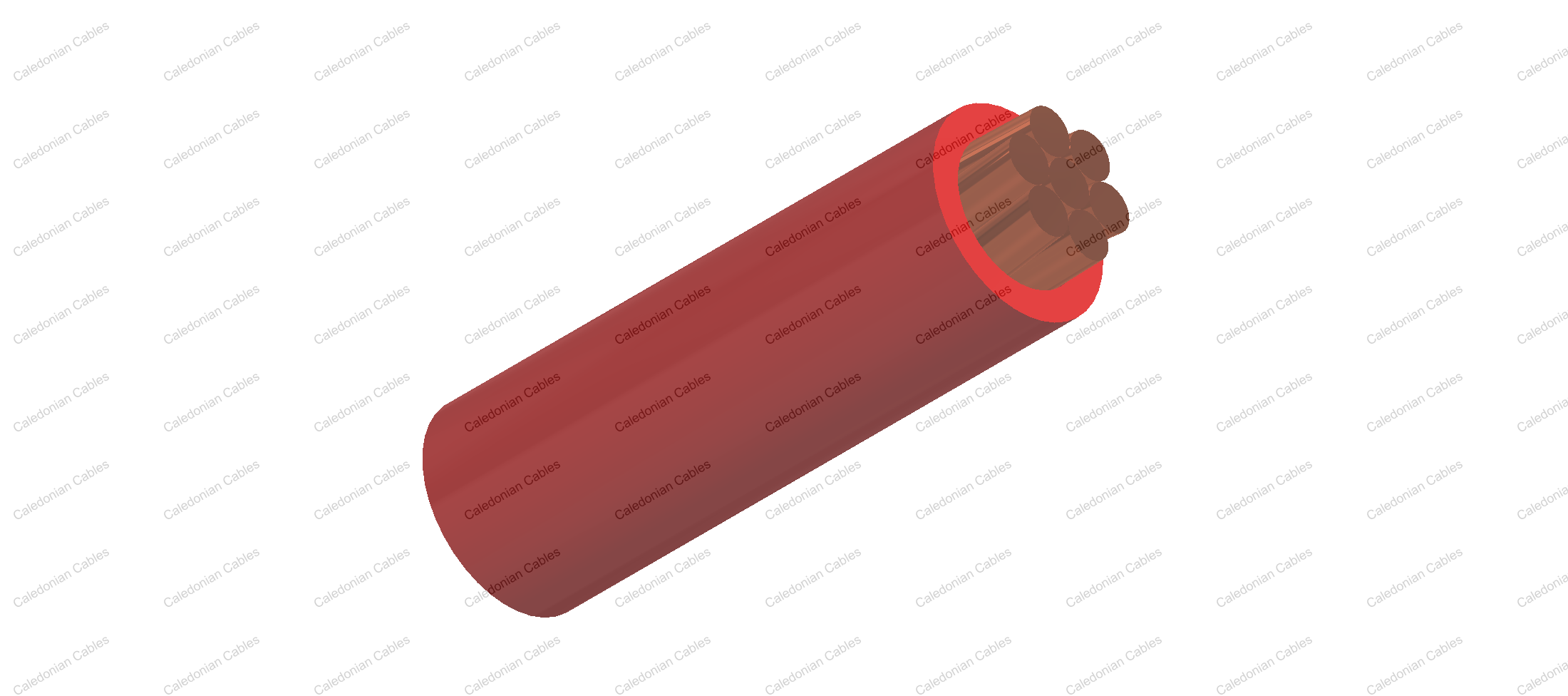

WXC

Application and Description

This XLPE insulated low-voltage cable is designed for used at nominal voltage of 60v dc (60V AC rms) or surface vehicles electrical systems.

Construction

  • Conductor: Soft-annealed copper according to ASTM B
  • Insulation: XLPE Ultra-Thin wall flame-retardant,halogen-free
  • Standard Compliance: SAE J1678

Special properties:

Flexible

Technical Parameters

Operating temperature:–40 °C to +125°C

Dimensions and Weight

  Conductor Construction Insulation Cable
Size Nominal cross- section No. and Dia. of Wires Diameter of
Conductor
max.		 Nominal
thickness		 Overall
Diameter
max.		 Weight
Approx.
AWG mm2 No./mm mm mm mm kg/km
22 1x0.35 7/0.25 0.76 0.20 1.35 4
20 1x0.50 7/0.32 0.97 0.20 1.55 7
18 1x0.80 19/0.23 1.17 0.20 1.75 8
16 1x1.3 19/0.28 1.45 0.20 2.03 12
14 1x2 19/0.36 1.8 0.20 2.39 19
12 1x3 19/0.45 2.3 0.24 3.00 30

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
