    GPT

    Application and Description

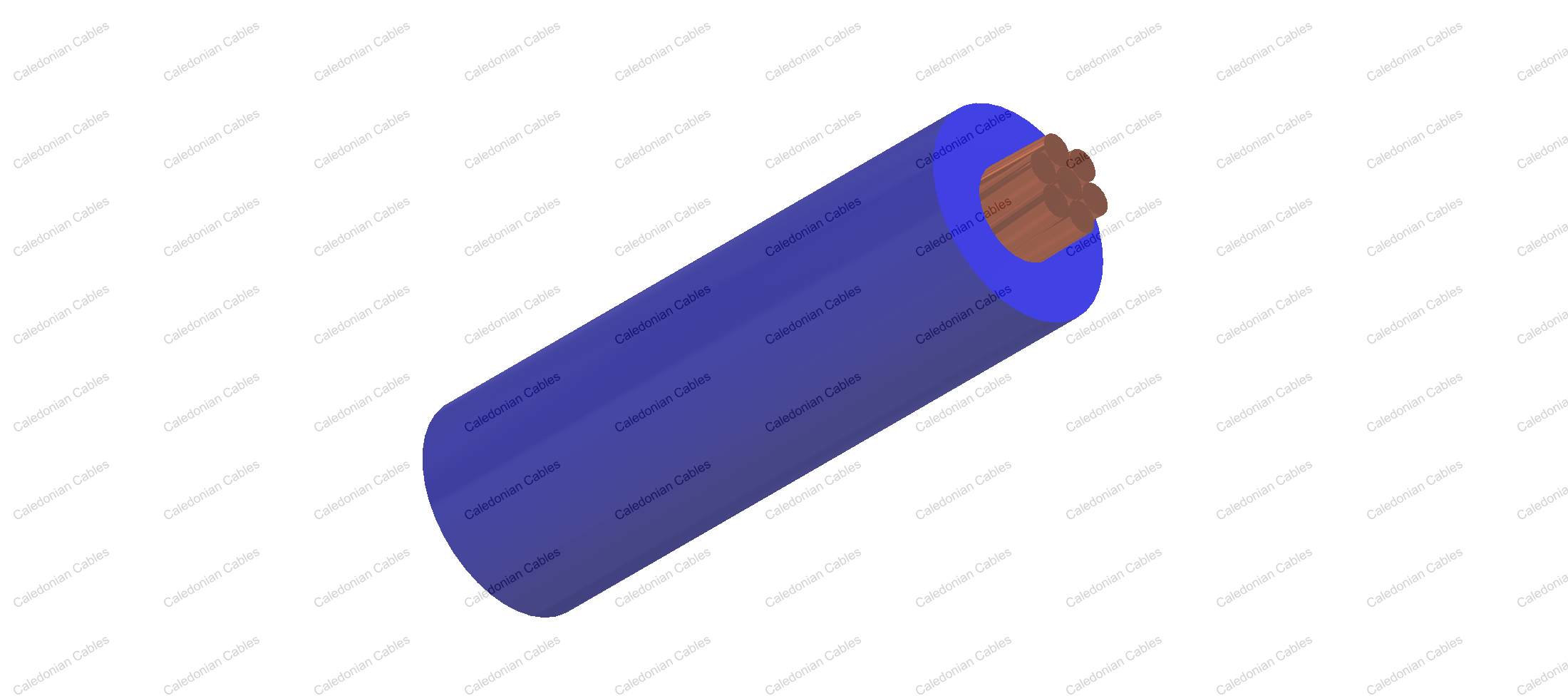

    This PVC insulated single-core cable is used in automotive applications for general circuit wiring and automotive or marine applications where 105°C is required.

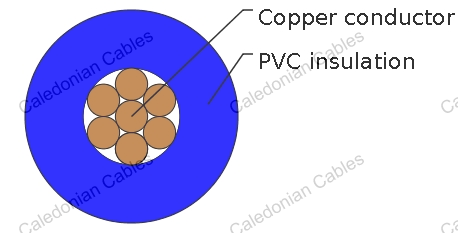

    Construction

    • Conductor: Soft-annealed copper according to ASTM B3
    • Insulation: PVC
    • Standard Compliance: SAE J1128

    Technical Parameters

    Operating temperature:–40 °C to +80 °C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Size Nominal cross- section No. and Dia. of Wires Diameter
    max.
    Thickness
    Wall
    min.
    Thickness
    Wall
    nom.
    Overall
    Diameter
    max.
    Weight
    Approx.
    AWG mm2 No./mm mm mm mm mm kg/km
    22* 1 x 10.35 7/0.25 0.76 - 0.58 2.10 7
    20 1 x 0.50 7/0.32 0.97 0.41 0.58 2.40 10
    18 1 x 0.80 16/0.25 1.17 0.41 0.58 2.50 12
    18 1 x 0.80 19/0.23 1.17 0.41 0.58 2.50 12
    16 1 x 1.00 19/0.28 1.45 0.41 0.58 2.90 17
    14 1 x 2.00 19/0.36 1.80 0.41 0.58 3.20 25
    12 1x 3.00 19/0.45 2.29 0.46 0.66 3.80 38
    10 1 x 5.00 19/0.57 2.87 0.55 0.79 4.70 59
    8** 1 x 8.00 19/0.724 3.26 0.66 0.94 6.00 96

    *for Ford ESF M1L56-A Applications only
    ** For SAE J1128 and UTMS applications only
    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
