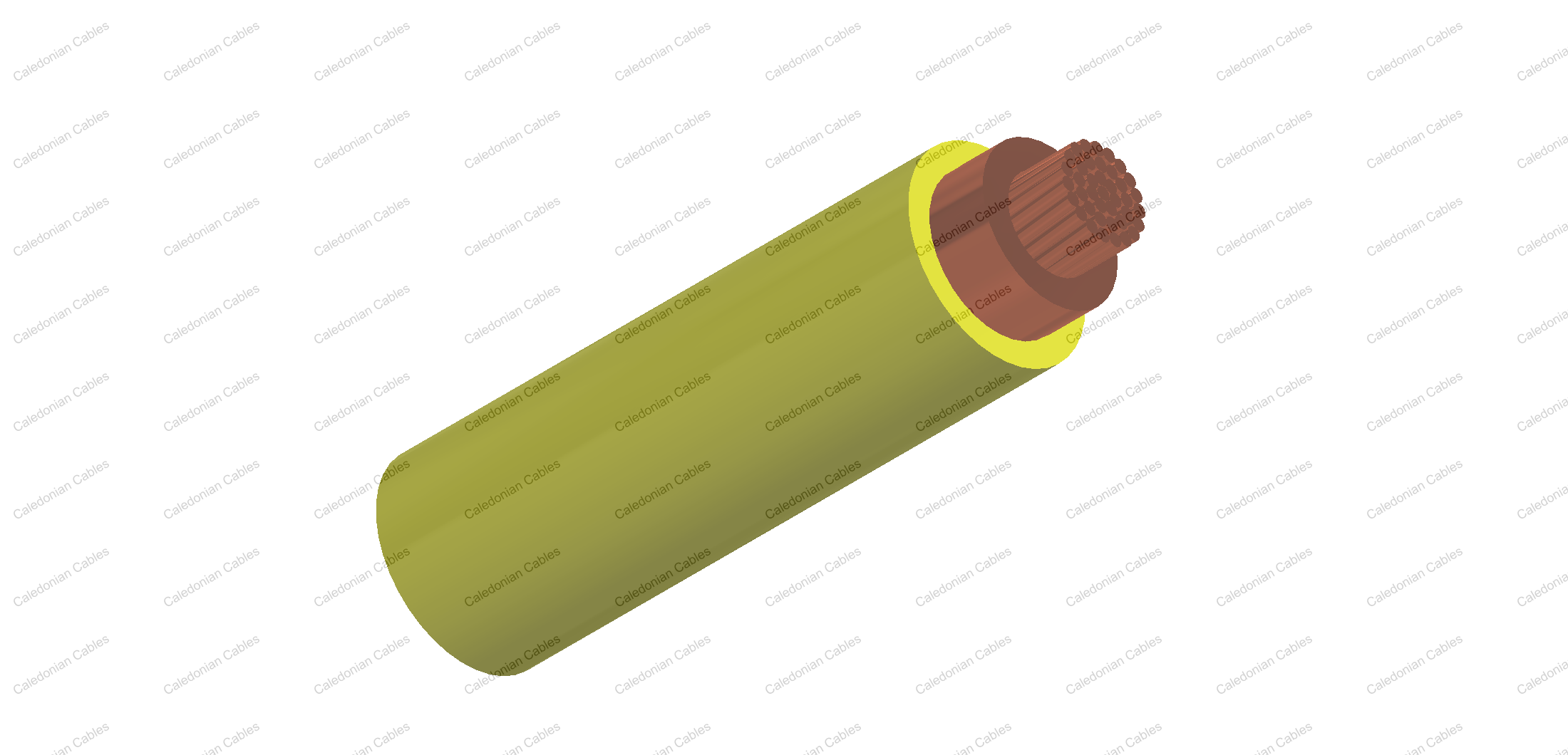

    FLYY

    Application and Description

    This PVC insulated single-core unshielded low-tension wire is used for automobiles, Motorcycles and other motor vehicles.

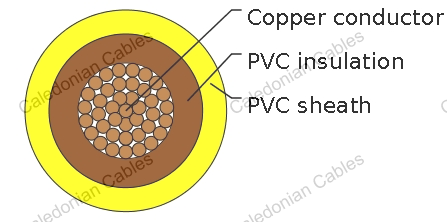

    Construction

    Conductor : Cu-ETP1 bare according to DIN EN 13602

    Insulation : PVC

    Sheath : PVC

    Standard Compliance : ISO 6722 Class B

    Technical Parameters

    Operating temperature : –40°C to +105°C

    Dimensions and Weight

      Conductor Insulation Cable
    Nominal Cross-section No.and Dia.of Wires Diameter max. Electrical Resistance at 20°C max. Thickness Wall nom. Diameter
    of Core
    Sheath
    Thickness
    nom.
    Overall Diameter min. Overall Diameter max. Weight approx.
    mm² No./mm mm mΩ/m mm mm mm mm mm kg/km
    1x0.50 16/0.21 1.00 37.10 0.60 2.10 0.40 2.70 3.10 14
    1x0.75 24/0.21 1.20 24.70 0.60 2.30 0.40 3.00 3.30 17
    1x1.00 32/0.21 1.35 18.50 0.60 2.50 0.40 3.20 3.60 20
    1x1.50 30/0.26 1.70 12.70 0.60 2.80 0.50 3.70 4.10 28
    1x2.00 40/0.26 2.00 9.42 0.60 3.00 0.50 3.90 4.30 33
    1x2.50 50/0.26 2.20 7.60 0.70 3.50 0.50 4.30 4.80 41

    * Note : Other configurations, sizes, colors and length not specified herein are available upon request.
