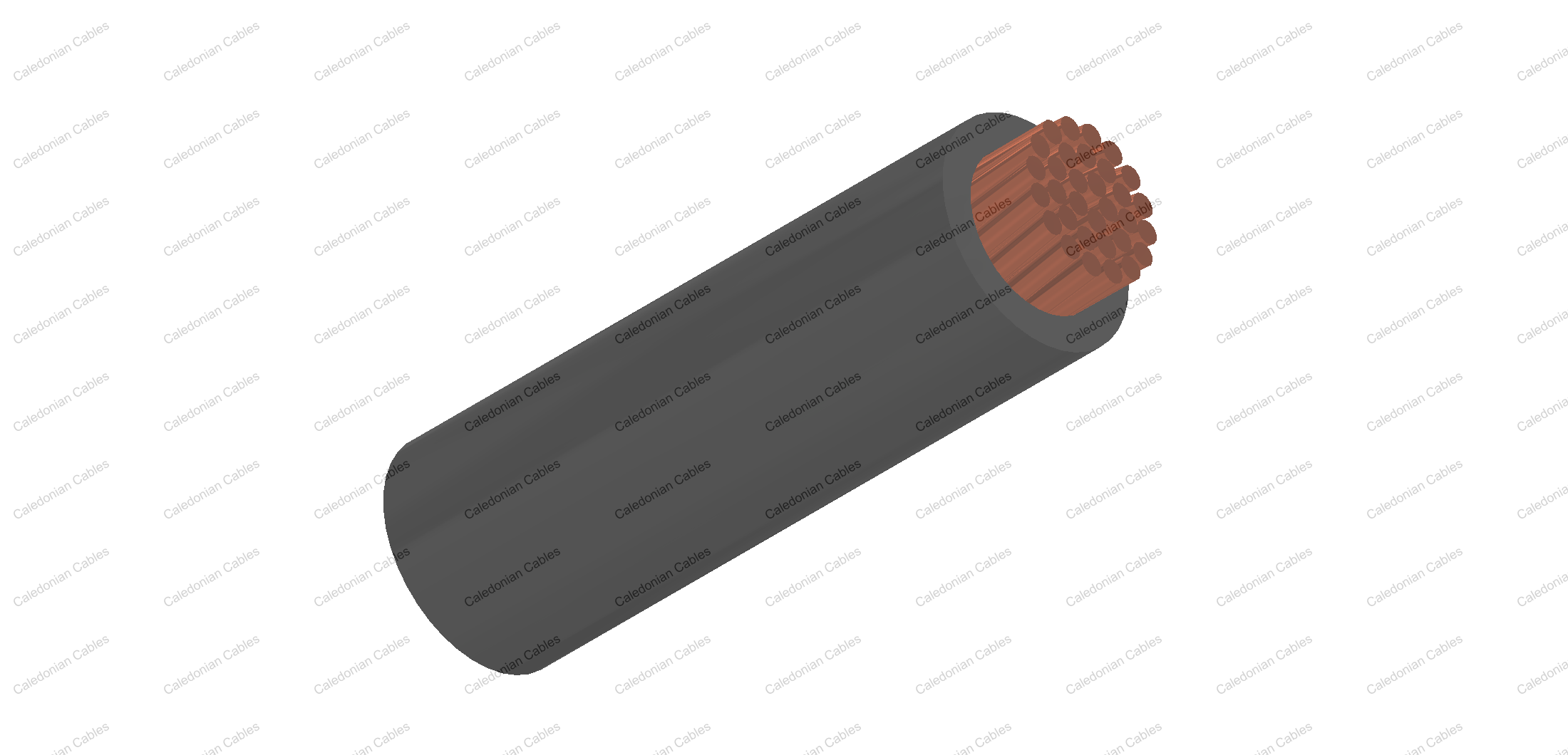

This PVC insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting ,charging,lighting,signal and instrument panel circuits.
Cold bending test according to ISO 6722 at –50 °C.
Short-term and long-term ageing according to ISO 6722, Class B.

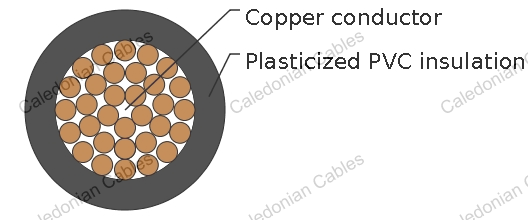

Flexible conductors with PVC Thin wall insulation with increased mechanical strength
Operating temperature: –40°C to +250°C
| Conductor Construction | Insulation | Cable | |||||
|---|---|---|---|---|---|---|---|
| Nominal cross- section | No. and Dia. of ires | Diameter of Conductor max. |
Electrical Resistance at 20°C Bare/Tinned max. |
Nominal Thickness | Overall Diameter min. |
Overall Diameter max. |
Weight approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | kg/km | |
| 1x0.5 | 16/0.20 | 1.0 | 37.1 | 0.28 | 1.4 | 1.6 | 6 |
| 1x0.75 | 24/0.20 | 1.2 | 24.7 | 0.6 | 2.2 | 2.5 | 33 |
| 1x1.00 | 32/0.20 | 1.4 | 18.5 | 0.3 | 1.8 | 2.1 | 57 |
| 1x1.50 | 30/0.25 | 1.7 | 12.7 | 0.3 | 2.2 | 2.4 | 111 |
| 1x2.50 | 50/0.25 | 2.1 | 7.6 | 0.7 | 3.3 | 3.7 | 278 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
