    FLYW

    Application and Description

    This PVC insulated single-core wire is used for automobiles, motorcycles and other motor vehicles. It has good heat resistance.

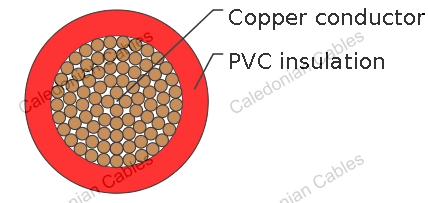

    Construction

    Conductor : Cu-ETP1 bare according to DIN EN 13602

    Insulation : PVC

    Standard Compliance : ISO 6722 Class B

    Technical Parameters

    Operating temperature : –40°C to +105°C

    Dimensions and Weight

      Conductor Insulation Cable
    Nominal Cross-section No.and Dia.of Wires Diameter max. Electrical Resistance at 20°C max. Thickness Wall nom. Overall Diameter min. Overall Diameter max. Weight approx.
    mm² No./mm mm mΩ/m mm mm mm kg/km
    1x0.50 16 /0.20 1.00 37.10 0.48 2.00 2.30 8
    1x0.75 24/0.20 1.20 24.70 0.48 2.20 2.50 11
    1x1.00 32/0.20 1.35 18.50 0.48 2.40 2.70 15
    1x1.50 30/0.25 1.70 12.70 0.48 2.70 3.00 20
    1x2.50 50/0.25 2.20 7.60 0.56 3.30 3.60 32
    1x4.00 56/0.31 2.75 4.71 0.64 4.00 4.40 48
    1x6.00 84/0.31 3.30 3.14 0.64 4.60 5.00 68
    1x10.00 80/0.40 4.50 1.82 0.80 6.00 6.50 117
    1x16.00 126/0.40 5.20 1.16 0.80 8.00 8.30 193
    1x25.00 196/0.40 6.50 0.70 1.04 10.10 10.40 274
    1x35.00 276/0.40 7.70 0.50 1.04 11.30 11.60 397
    1x50.00 396/0.40 9.20 0.30 1.20 13.20 13.50 547
    1x70.00 556/0.40 11.00 0.20 1.20 15.20 15.50 769
    1x95.00 741/0.40 14.80 0.20 1.28 17.00 18.00 990

    * Note : Other configurations, sizes, colors and length not specified herein are available upon request.
