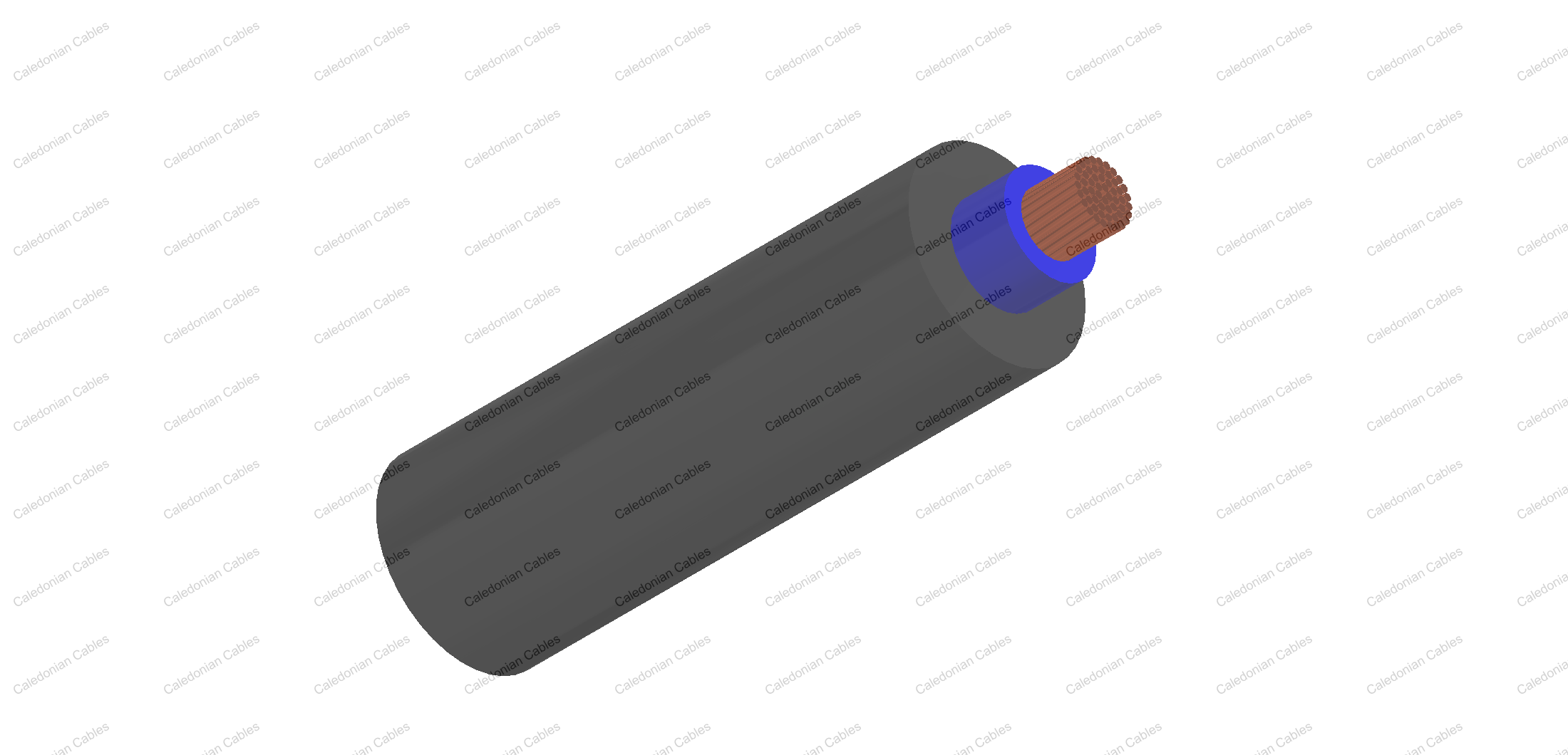

This PVC insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting ,charging,lighting,signal and instrument panel circuits.
Flame retardant, extra flexibility, cold resistance

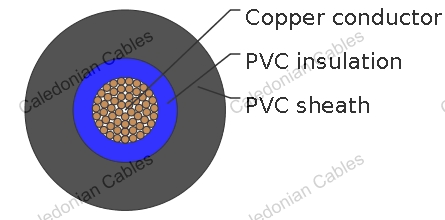

Flexible conductors with PVC thick wall insulation with increased mechanical strength
Operating temperature: –40°C to +105°C
| Conductor Construction | Insulation | Cable | ||||||
|---|---|---|---|---|---|---|---|---|
| Nominal cross- section | No. and Dia. of ires | Diameter of Conductor max. |
Electrical Resistance at 20°C Bare/Tinned max. |
Nominal Thickness | Sheath Wall Thickness |
Overall Diameter min. |
Overall Diameter max. |
Weight approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | kg/km | |
| 1x4 | 56/0.31 | 2.75 | 4.7 | 0.8 | 2.0 | 8.0 | 8.4 | 123 |
| 1x6 | 84/0.31 | 3.3 | 3.1 | 0.8 | 2.0 | 8.6 | 9.0 | 149 |
| 1x10 | 80/0.41 | 4.5 | 1.82 | 1.0 | 3.0 | 12.2 | 12.8 | 267 |
| 1x16 | 126/0.41 | 6.3 | 1.16 | 1.0 | 2.0 | 11.5 | 12.1 | 279 |
| 1x50 | 396/0.41 | 10.5 | 0.368 | 0.8 | 1.4 | 14.5 | 15.1 | 587 |
| 1x50 | 1600/0.21 | 10.9 | 0.386 | 0.8 | 1.4 | 14.5 | 15.1 | 592 |
| 1x70 | 2200/0.21 | 13.3 | 0.272 | 1.0 | 1.6 | 17.5 | 18.3 | 870 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
