    FLY

    Application and Description

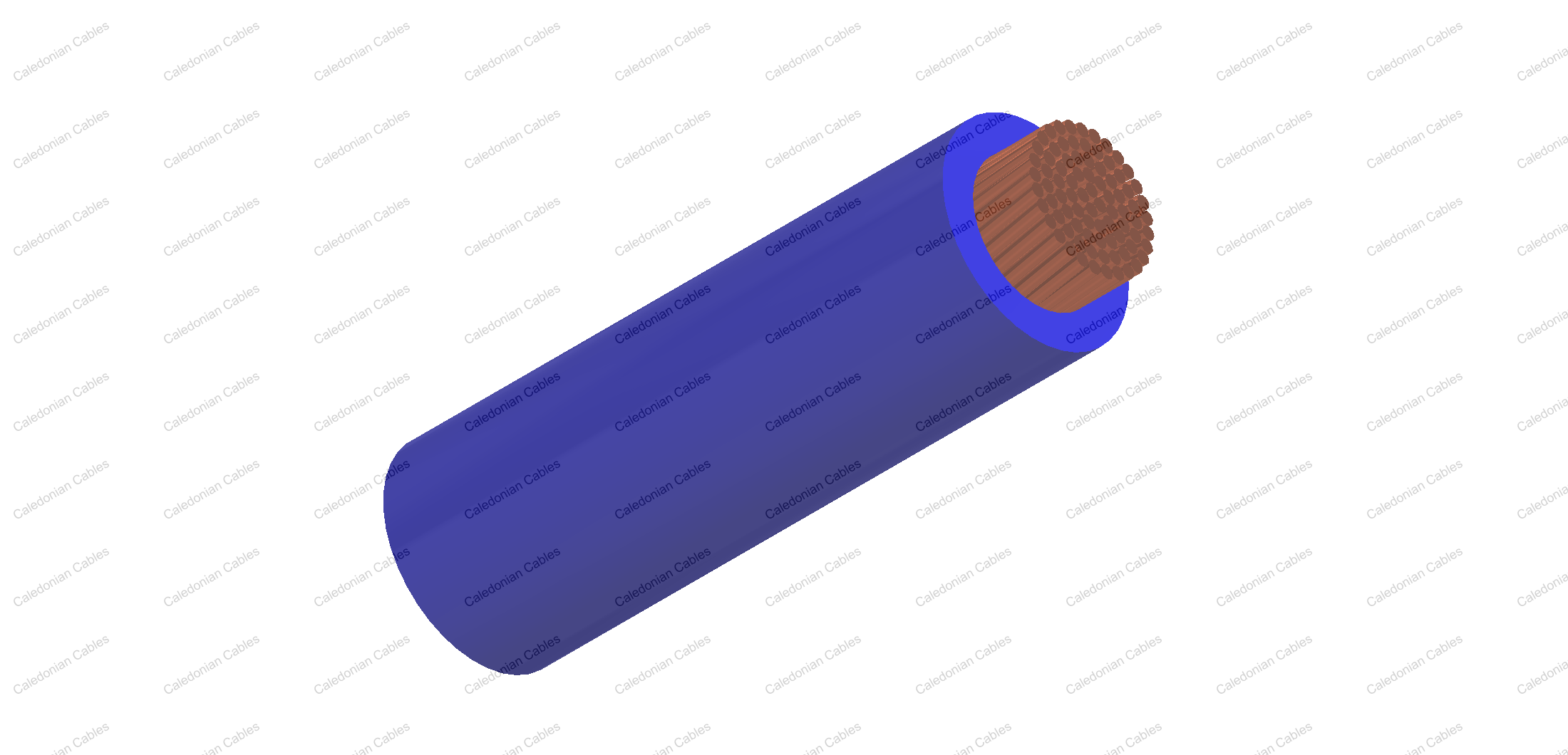

    This PVC insulated single-core unshielded low-tension wire is used for automobiles.

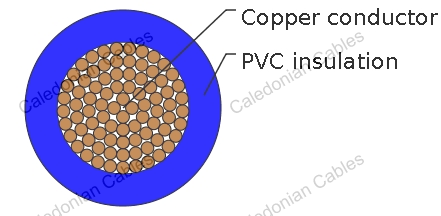

    Construction

    Conductor : Cu-ETP1 bare according to DIN EN 13602

    Insulation : PVC

    Standard Compliance : ISO 6722 Class B

    Special Properties

    Conductors >6mm² are suitable for use as battery cables

    Technical Parameters

    Operating temperature : –40°C to +105°C

    Dimensions and Weight

      Conductor Insulation Cable
    Nominal Cross-section No.andDia.of Wires Diameter max. Electrical Resistance at 20°C max. Thickness Wall nom. Overall Diameter min. Overall Diameter max. Weight approx.
    mm2 No./mm mm mΩ/m mm mm mm kg/km
    1x0.50 16 /0.21 1.00 37.10 0.48 2.00 2.30 8
    1x0.75 24/0.21 1.20 24.70 0.48 2.20 2.50 12
    1x1.00 32/0.21 1.35 18.50 0.48 2.40 2.70 15
    1x1.50 30/0.26 1.70 12.70 0.48 2.70 3.00 20
    1x2.00 40/0.26 2.00 9.42 0.60 2.90 3.20 26
    1x2.50 50/0.26 2.20 7.60 0.70 3.30 3.70 32
    1x3.00 60/0.26 2.50 6.00 0.70 3.50 3.90 37
    1x4.00 56/0.31 2.75 4.71 0.80 4.00 4.40 49
    1x6.00 84/0.31 3.30 3.14 0.80 4.60 5.00 68
    1x10.00 80 /0.41 4.50 1.82 0.80 6.00 6.50 117
    1x16.00 126/0.41 6.30 1.16 0.80 7.50 8.30 193
    1x25.00 196/0.41 7.80 0.74 1.04 9.50 10.40 274
    1x35.00 276/0.41 9.00 0.53 1.04 10.60 11.60 397
    1x50.00 400/0.41 10.50 0.37 1.20 12.90 13.50 547
    1x70.00 555/0.41 12.50 0.26 1.20 14.80 15.50 769
    1x95.00 740/0.41 14.80 0.200 1.28 17.00 18.00 990
    1x120.00 960/0.41 16.50 0.15 1.60 18.70 19.70 1250

    * Note : Other configurations, sizes, colors and length not specified herein are available upon request.
