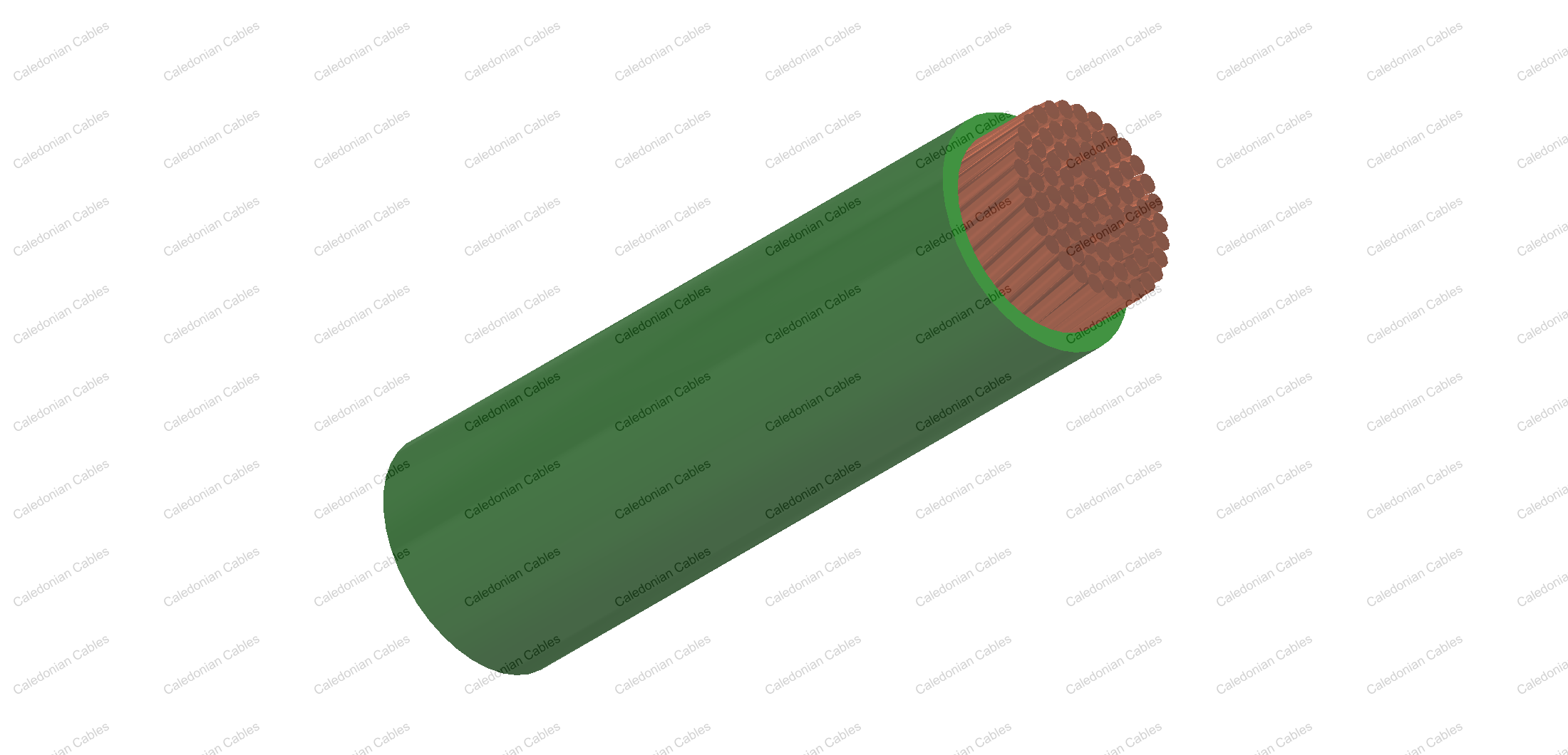

    FLRYW

    Application and Description

    This PVC insulated automotive cable is used for cable harnesses.

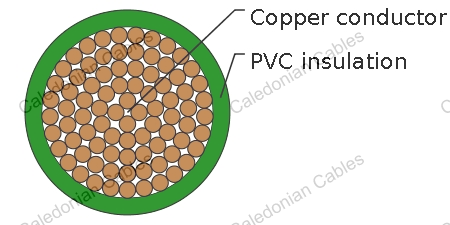

    Construction

    • Conductor: Cu-ETP1 bare according to DIN EN 13602
    • Insulation: PVC
    • Standard Compliance: ISO 6722 Class C

    Technical Parameters

    Operating temperature: –40°C to +105°C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal
    cross- section
    No. and Dia. of Wires Diameter
    of Conductor max.
    Electrical
    resistance at 20°C max.
    Nominal thickness Overall Diameter Min. Overall Diameter Max. Weight approx.
    mm2 No./mm mm mΩ/m mm mm mm kg/km
    1x0.35 12/0.21 0.90 54.5 0.20 1.2 1.4 4.5
    1x0.50 16/0.21 1.00 38.2 0.22 1.4 1.6 6.6
    1x0.75 24/0.21 1.20 25.4 0.24 1.7 1.9 9
    1x1.00 32/0.21 1.35 19.1 0.24 1.9 2.1 11
    1x1.50 30/0.26 1.70 13.0 0.24 2.2 2.4 16
    1x2.00 50/0.26 1.90 9.69 0.28 2.5 2.8 22
    1x2.50 45/0.31 2.20 7.80 0.28 2.7 3.0 26
    1x3.00 56/0.31 2.40 6.36 0.28 2.9 3.2 32.5
    1x4.00 56/0.31 2.75 4.80 0.32 3.4 3.7 42
    1x6.00 84/0.31 3.30 3.20 0.32 4.0 4.3 61
    1x10.0 80/0.41 4.50 1.85 0.48 5.4 5.8 108
    1x16.0 126/0.41 6.30 1.18 0.52 5.2 6.5 170
    1x25.0 196/0.41 7.80 0.76 0.52 7.9 8.7 265

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
