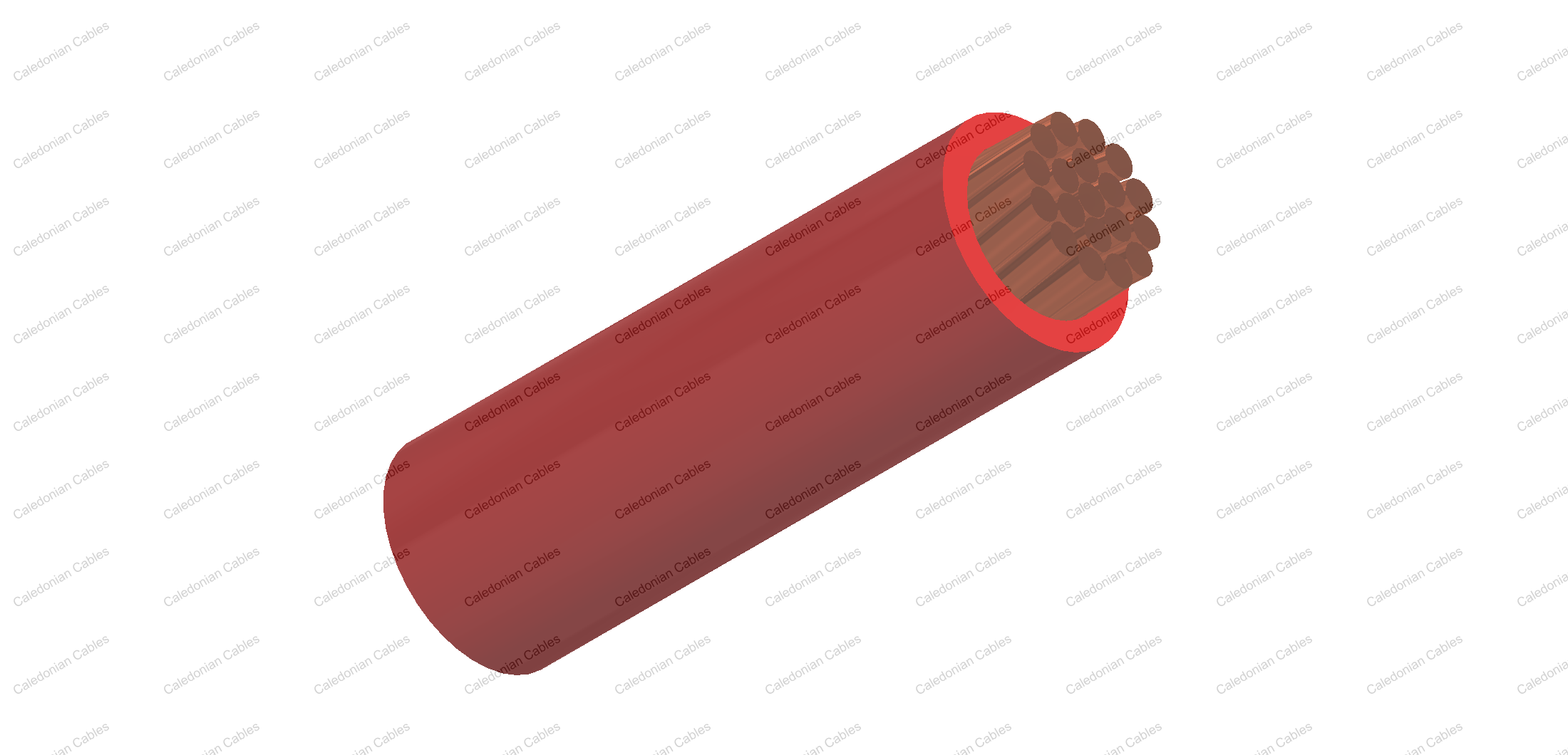

    FLRYW-A

    Application and Description

    This PVC insulated single-core cable is used as low-tension electric wire for automobiles.

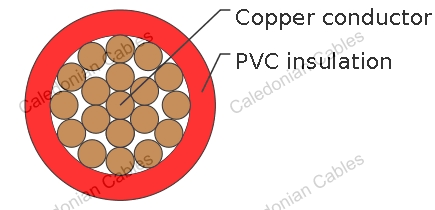

    Construction

    • Conductor: Cu-ETP1 bare according to DIN EN 13602
    • Insulation: PVC
    • Standard Compliance: ISO 6722 Class C

    Special properties:

    Heat resistant cable
    Suitable for application inside the engine compartment

    Technical Parameters

    Operating temperature: –50°C to +125°C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal
    cross- section
    No. and Dia. of Wires Diameter of Conductor max. Electrical resistance at
    20°C max.
    Nominal thickness Overall Diameter Min. Overall Diameter Max. Weight approx.
    mm2 No./mm mm mΩ/m mm   mm kg/km
    1x0.35 7/0.26 0.8 54.4 0.20 1.2 1.3 5
    1x0.50 19/0.19 1.0 37.1 0.22 1.4 1.6 7
    1x0.75 19/0.23 1.2 24.7 0.24 1.7 1.9 9
    1x1.00 19/0.26 1.35 18.5 0.24 1.9 2.1 11
    1x1.25 19/0.30 1.7 14.9 0.24 2.1 2.3 12
    1x1.50 19/0.32 1.7 12.7 0.24 2.2 2.4 16
    1 x2.00 19/0.38 2.0 9.42 0.28 2.5 2.8 22

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
