    FLRYK

    Application and Description

    This PVC insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting ,charging,lighting,signal and instrument panel circuits.

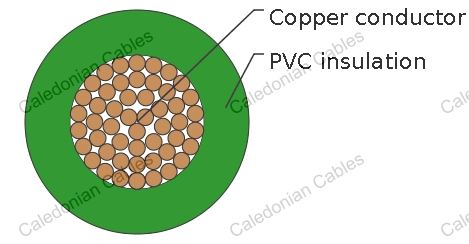

    Construction

    • Conductor: Cu-ETP1 bare according to DIN EN 13602
    • Insulation: PVC insulation(Cold resistant)
    • Standard Compliance: ISO 6722 Class B

    Special properties

    Cold bending test according to ISO 6722 at –50 °C.
    Short-term and long-term ageing according to ISO 6722, Class B.

    Technical Parameters

    Operating temperature: –50°C to +105°C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal
    cross- section
    No. and Dia. of Wires Diameter
    of Conductor max.
    Electrical
    resistance at 20°C max.
    Nominal thickness Overall Diameter Min. Overall Diameter Max. Weight approx.
    mm2 No./mm mm mΩ/m mm mm mm kg/km
    1x0.50 16 /0.21 1.0 37.7 0.22 1.4 1.6 7
    1x1.00 32/0.21 1.4 18.5 0.30 2.3 2.1 12
    1x1.50 30/0.26 1.7 12.7 0.24 2.2 2.4 17
    1x2.50 50/0.26 2.1 7.6 0.70 3.5 3.7 33

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
