    FLRY11Y

    Application and Description

    This PVC insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting ,charging,lighting,signal and instrument panel circuits.

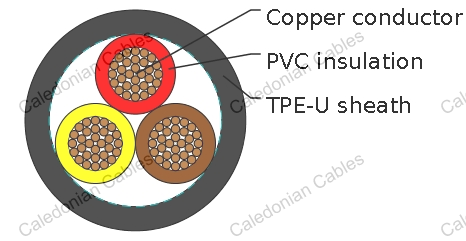

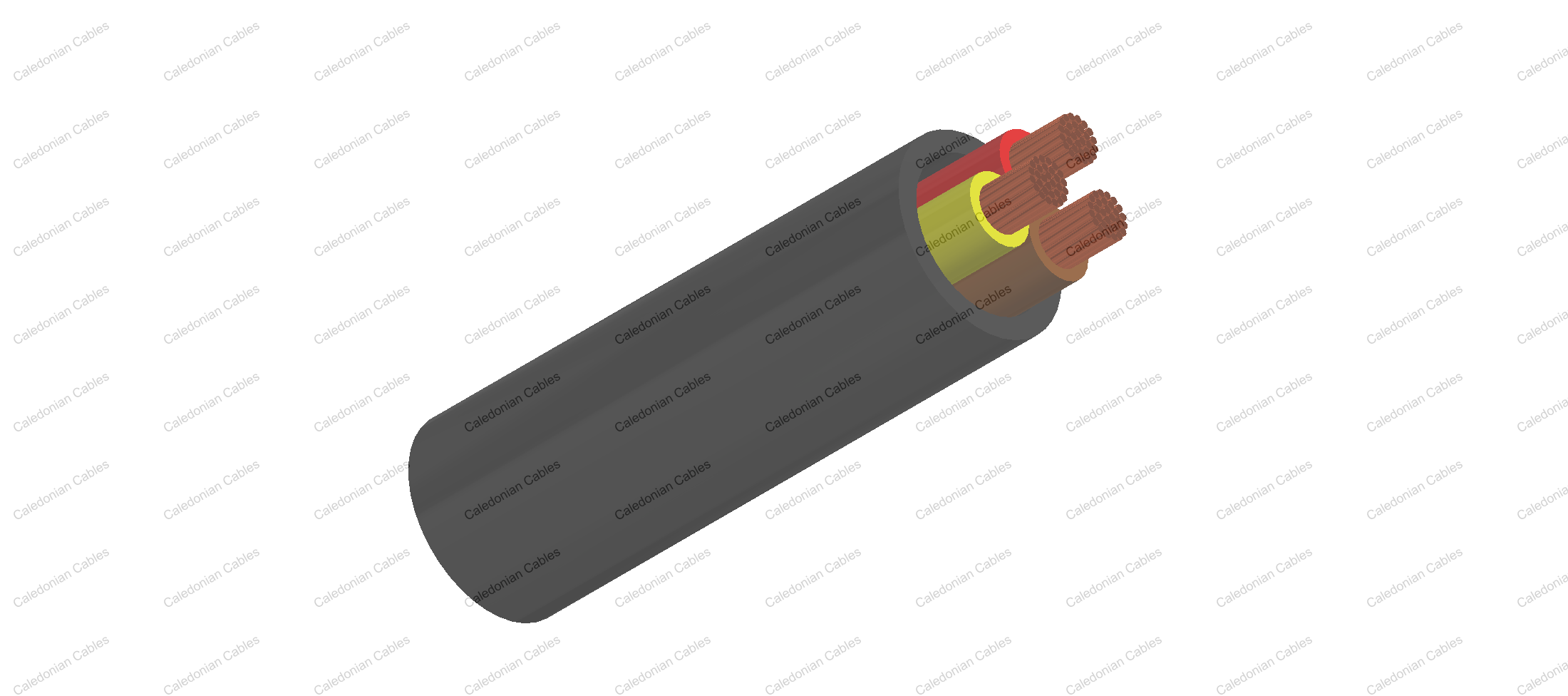

    Construction

    • Conductor: Cu-ETP1 bare according to DIN EN 13602
    • Insulation: PVC
    • Outer Sheath:TPE-U
    • Standard: ISO 6722 Class B

    Special properties:

    Flame retardant
    Highly resistant against acids,lyes,petrol and diesel

    Technical Parameters

    Operating temperature: –40°C to +105°C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of Wires Diameter
    max.
    Electrical
    Resistance at
    20°C
    Max.
    Nominal
    Thickness
    Diameter
    of Core
    Sheath
    Thickness
    Overall
    Diameter
    min.
    Overall
    Diameter
    max.
    Weight
    Approx.
    mm2 No./mm mm mΩ/m mm mm mm mm mm kg/km
    2x0.75 42/0.16 1.2 24.7 0.4 1.9 0.8 5.2 5.6 47
    3x1 32/0.21 1.5 18.5 0.35 2.0 0.7 5.6 6.0 54
    3x1.5 30/0.26 1.7 13.3 0.4 2.4 0.75 6.5 6.9 71

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
