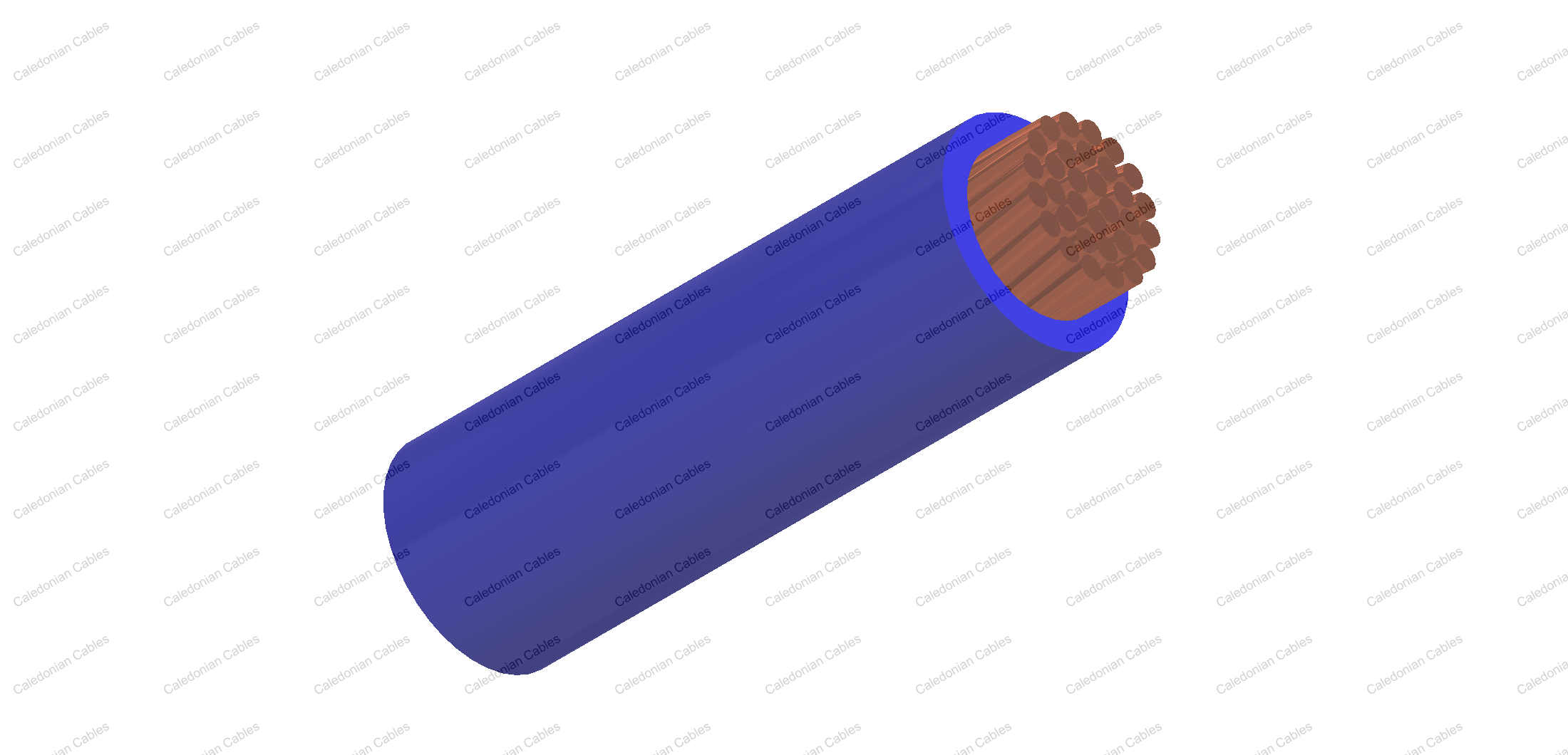

    FLRY-B

    Application and Description

    This PVC insulated single-core cable with symmetrical conductor structure (type B) and thin wall is used for automobiles, Motorcycles electrical equipment in high temperature condition

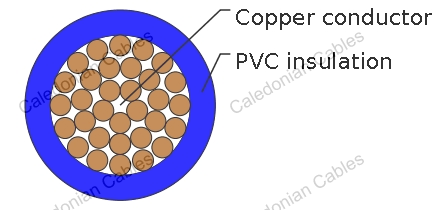

    Construction

    • Conductor: Cu-ETP1 bare or tinned according to DIN EN13602
    • Insulation: PVC
    • Standard Compliance: ISO 6722 Class B

    Technical Parameters

    Operating temperature: –40°C to 105°C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal
    cross- section
    No. and Dia. of Wires Diameter of Conductor max. Resistance at 20°C Bare/Tinned
    max.
    Thickness Wall min. Overall Diameter Max. Weight approx.
    mm2 No./mm mm mΩ/m mm mm kg/km
    1x0.35 12/0.21 0.90 52.00/5.50 0.20 1.40 5
    1x0.50 16/0.21 1.00 37.10/38.20 0.22 1.60 7
    1x0.75 24/0.21 1.20 24.70/25.40 0.24 1.90 9
    1x1.00 32/0.21 1.35 18.50/19.10 0.24 2.10 11
    1x1.50 30/0.26 1.70 12.70/13.00 0.24 2.40 16
    1x2.00 30/0.31 1.90 9.31/9.59 0.24 2.60 22
    1x2.50 50/0.26 2.20 7.60/7.80 0.28 3.00 26
    1x3.00 45/0.31 2.40 6.21/6.40 0.28 3.20 33
    1x4.00 56/0.31 2.75 4.70/4.80 0.32 3.70 42
    1x6.00 84/0.31 3.30 3.10/3.20 0.32 4.30 61
    1x10.00 80/0.41 4.50 1.82/1.85 0.48 6.00 108
    1x16.00 126/0.41 6.30 1.16/1.18 0.52 7.90 170
    1x25.00 196/0.41 7.80 0.743/0.757 0.52 9.40 265

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
