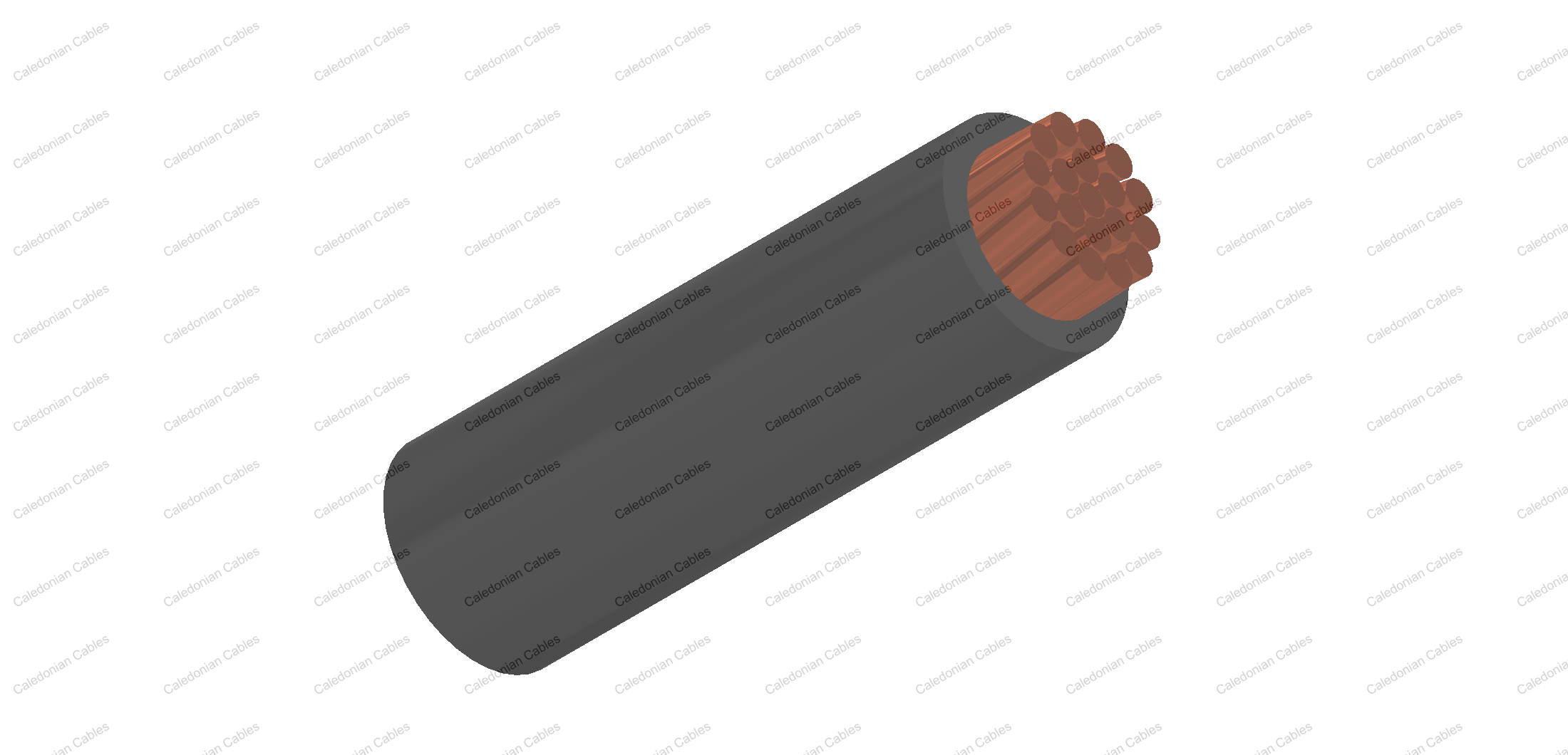

    FLR9Y-A

    Application and Description

    This PP insulated single-core cable is used for cable harnesses, Halogen-free.

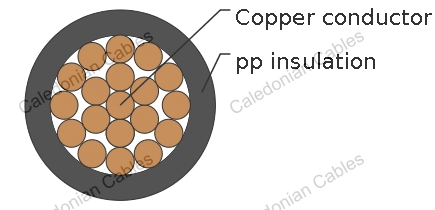

    Construction

    Conductor : Cu-ETP1 bare according to DIN EN 13602

    Insulation : Polypropylene insulation(PP)

    Standard Compliance : ISO 6722 Class C

    Technical Parameters

    Operating temperature : –40°C to +125°C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of ires Diameter of Conductor max. Electrical Resistance at 20°C Bare/Tinned max. Nominal Thickness Overall Diameter min. Overall Diameter max. Weight approx.
    mm² No./mm mm mΩ/m mm   mm kg/km
    1x0.22 7/0.21 0.70 86.5 0.20 1.10 1.20 3.1
    1x0.35 7/0.26 0.70 55.5 0.20 1.20 1.30 4.5
    1x0.50 19/0.19 1.00 38.2 0.22 1.40 1.60 6.6
    1x0.75 19/0.23 1.20 25.4 0.24 1.70 1.90 9.0
    1x1.00 19/0.26 1.35 19.1 0.24 1.90 2.10 11
    1x1.50 19/0.32 1.70 13.0 0.24 2.20 2.40 16
    1x2.50 19/0.41 2.20 7.82 0.28 2.70 3.00 26
    1x4.00 37/0.38 2.70 4.92 0.32 3.40 3.70 42
    1x6.00 37/0.45 3.40 3.23 0.32 4.00 4.30 61

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
