    FLR7Y-B

    Application and Description

    This ETFE insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting ,charging,lighting,signal and instrument panel circuits.

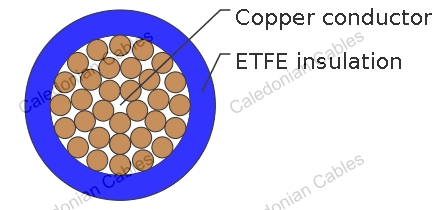

    Construction

    • Conductor: Cu-ETP1 bare/tinned according to DIN EN 13602
    • Insulation: ETFE
    • Standard Compliance: ISO 6722 Class F

    Special properties:

    Highly resistant against acids,lyes,petrol and diesel/Excellent chmical resistance/Good mechanical & thermal properties

    Technical Parameters

    Operating temperature: –45°C to +180°C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of ires Diameter of Conductor
    max.
    Electrical Resistance at 20°C Bare/Tinned
    max.
    Nominal Thickness Overall Diameter
    min.
    Overall Diameter
    max.
    Weight approx.
    mm2 No./mm mm mΩ/m mm   mm kg/km
    1x0.35 12/0.21 0.9 54/55.5 0.2 1.2 1.4 5
    1x0.5 16/0.21 1.0 37.1/38.2 0.22 1.4 1.6 7
    1x0.75 24/0.21 1.2 24.7/25.4 0.24 1.7 1.9 10
    1x1 32/0.21 1.35 18.5/19.1 0.24 1.9 2.1 12
    1x1.5 30/0.26 1.7 12.7/13.0 0.24 2.2 2.4 18
    1x2.5 50/0.26 2.2 7.6/7.82 0.28 2.7 3.0 30
    4 56/0.31 2.75 4.71/4.85 0.32 3.4 3.7 42
    6 84/0.31 3.3 3.14 0.32 4.0 4.3 62

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
