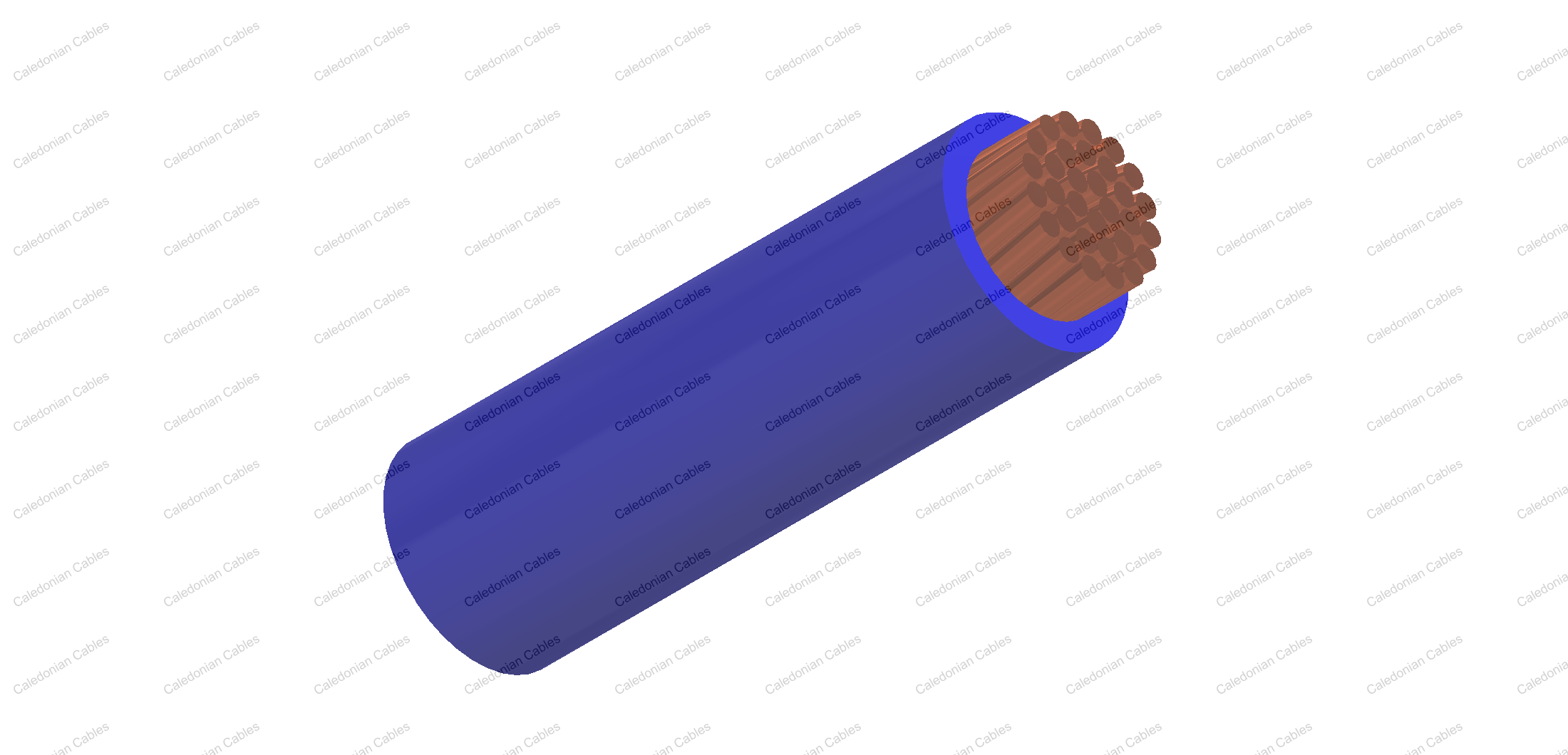

    FLR5Y-B

    Application and Description

    This PTFE insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting ,charging,lighting,signal and instrument panel circuits.

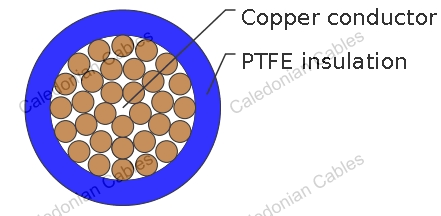

    Construction

    • Conductor: Silver or Nickel plated copper according to DIN EN 13602
    • Insulation: PTFE
    • Standard Compliance: ISO 6722 Class H

    Special properties:

    Excellent resistance to chemicals

    Technical Parameters

    Operating temperature: –40°C to 260°C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of ires Diameter of Conductor
    max.
    Electrical Resistance at 20°C
    max.
    Nominal Thickness Overall Diameter
    min.
    Overall Diameter
    max.
    Weight approx.
    mm2 No./mm mm mΩ/m mm   mm kg/km
    1x 0.35 12/0.21 0.9 87.9 0.20 1.25 1.35 5
    1x 0. 5 16/0.21 1.0 56.8 0.22 1.4 1.6 6
    1x 0. 75 24/0.21 1.2 38.6 0.24 1.7 1.9 9
    1x1 32/0.21 1.4 25.7 0.24 1.75 1.95 11
    1x 1.5 30/0.26 1.7 19.3 0.24 2.1 2.3 16
    1x 2.5 50/0.26 2.2 13.2 0.28 2.5 2.8 26
    1x 4 56/0.31 2.75 4.91 0.32 3.05 3.35 40
    1x 6 84/0.31 3.4 3.27 0.32 3.85 4.15 61

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
