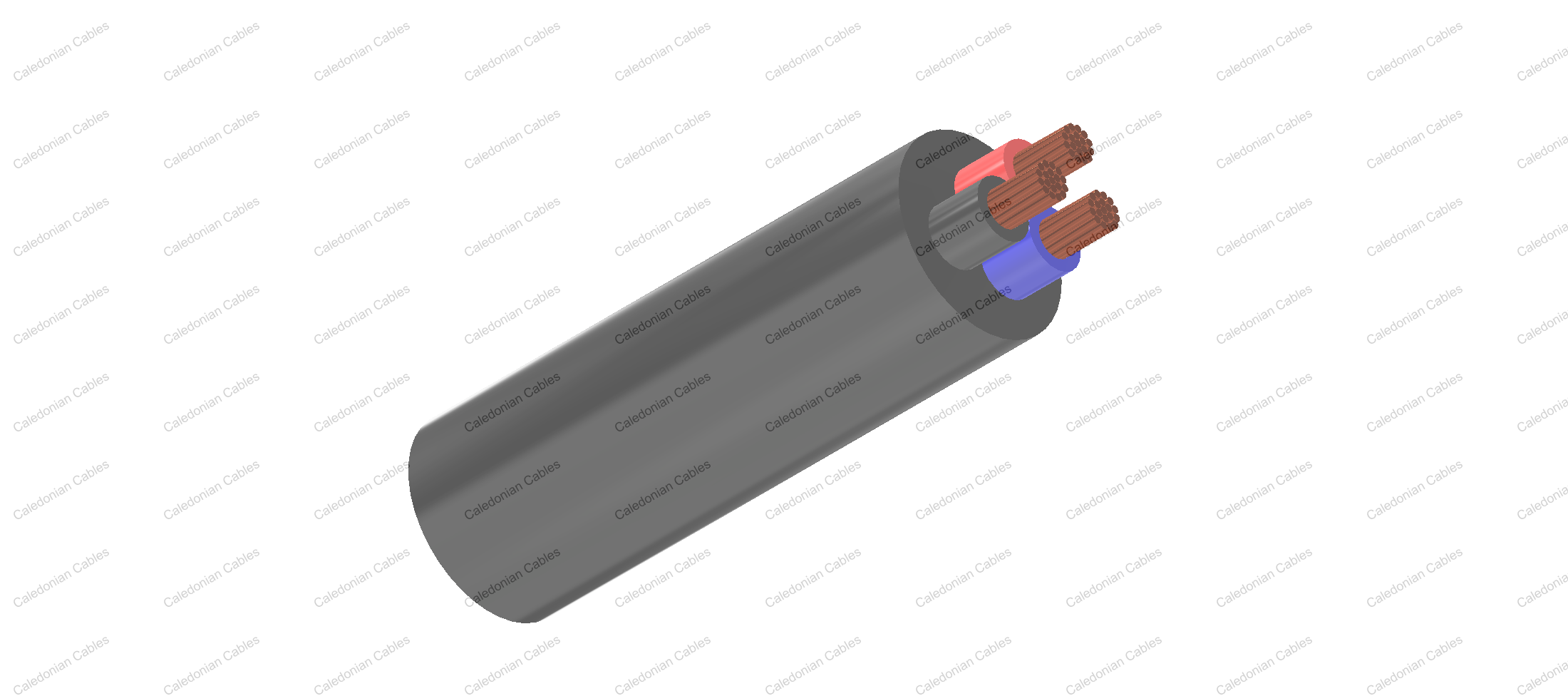

    FLR31Y11Y

    Application and Description

    This TPE insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting ,charging,lighting,signal and instrument panel circuits.

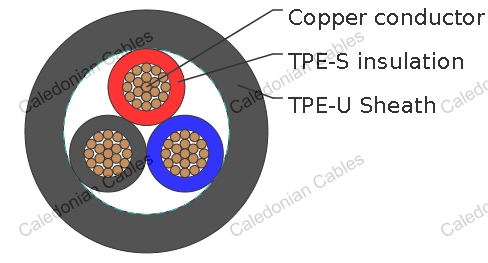

    Construction

    • Conductor: Cu-ETP1 bare according to DIN EN 13602
    • Insulation: TPE-S
    • Outer Sheath:TPE-U
    • Standard: ISO 6722 Class C

    Special properties:

    Flame retardant
    Highly resistant against acids,lyes,petrol and diesel

    Technical Parameters

    Operating temperature: –40°C to +125°C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of Wires Diameter
    max.
    Electrical
    Resistance at
    20°C
    Max.
    Nominal
    Thickness
    Diameter
    of Core
    Sheath
    Thickness
    Overall
    Diameter
    min.
    Overall
    Diameter
    max.
    Weight
    Approx.
    mm2 No./mm mm mΩ/m mm mm mm mm mm kg/km
    2x0.50 28/0.16 1.0 37.1 0.3 1.5 0.7 4.3 4.7 38
    2x0.50 28/0.16 1.0 37.1 0.3 1.5 1.0 4.8 5.2 45
    2x0.75 42/0.16 1.2 24.7 0.3 1.8 1.2 6.0 6.4 64
    2x0.75 96/0.11 1.2 24.7 0.3 1.8 1.2 6.0 6.4 48
    3x0.5 19/0.19 1.0 37.1 0.3 1.6 0.8 5.0 5.2 47
    3x1.0 19/0.26 1.2 18.5 0.35 2.0 0.8 5.7 6. 7
    4x0.5 28/0.16 1.0 37. 0.3 1.5 1.2 6.0 6.4 76
    4x0.5 64/0. 1.0 37. 0.3 1.6 1.2 6.0 6.4 5
    5x0.5 64/0. 1.0 37. 0.3 1.6 1.0 6.0 6.4 54

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
