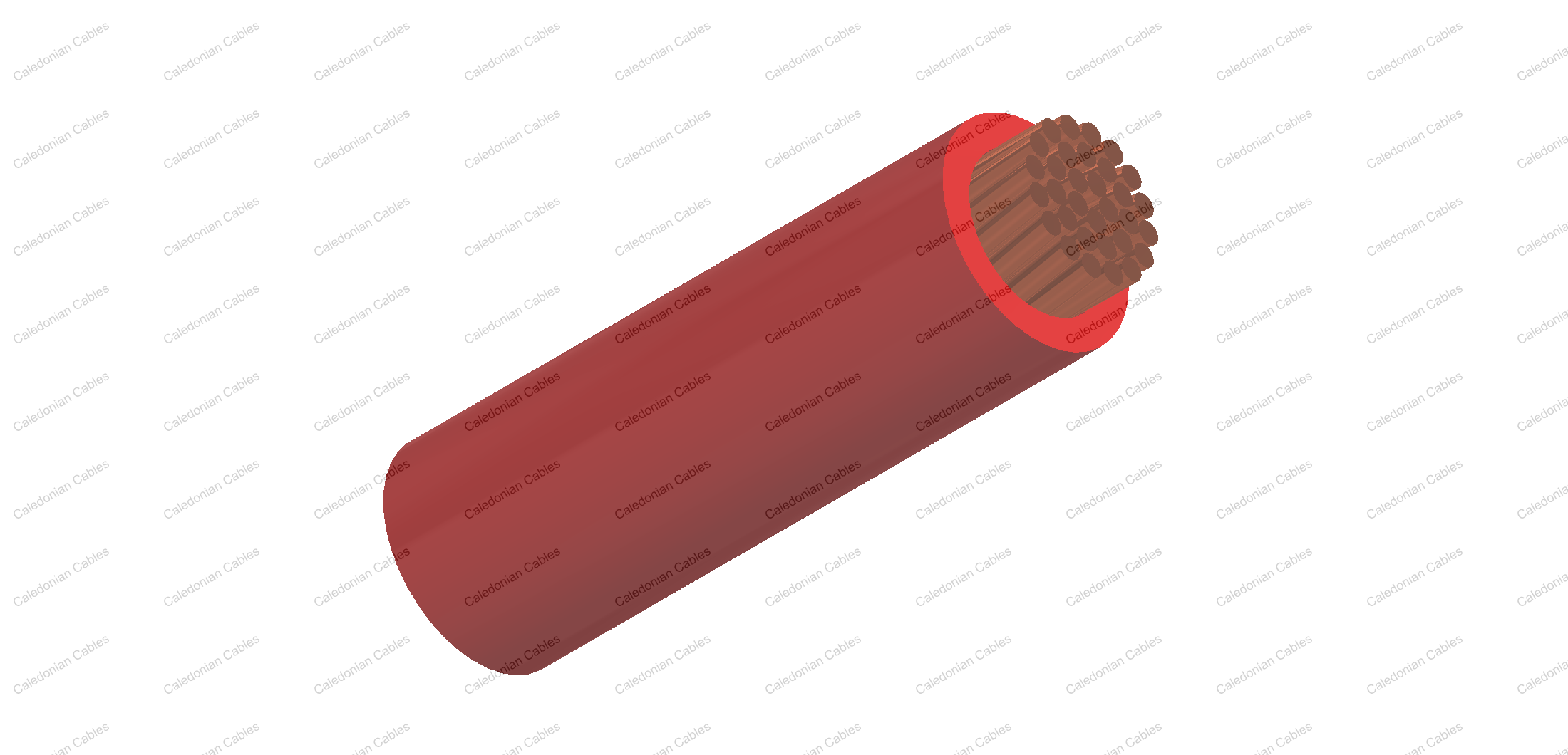

    FLR2X-B

    Application and Description

    This XLPE insulated single-core cable is used in motor and battery ground low voltage circuit applications with high temperatures (Rated for continuous use from -40°C up to 125°C), tight spaces, and where aging and abrasion resistance are necessary.

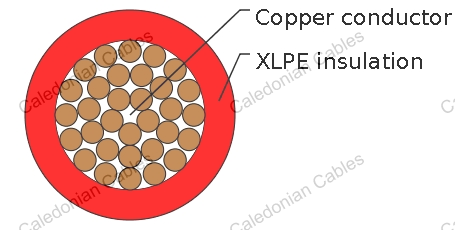

    Construction

    Conductor : Annealed stranded copper(Type B)

    Insulation : XLPE

    Standard Compliance : ISO 6722 Class C

    Technical Parameters

    Operating temperature : –40°C to 125°C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of Wires Diameter of Conductor max. Electrical resistance at 20°C max. Nominal thickness Overall Diameter Min. Overall Diameter Max. Weight approx.
    mm² No./mm mm mΩ/m mm   mm kg/km
    0.35 12/0.21 0.9 52 0.2   1.4 4.5
    0.5 16/0.21 1.1 37.1 0.28 1.4 1.6 6.5
    0.75 24/0.21 1.3 24.7 0.3 1.7 1.9 9
    1 32/0.21 1.5 18.5 0.3 1.9 2.1 12
    1.5 30/0.26 1.8 12.7 0.3 2.2 2.4 16.5
    2.0 28/0.31 2.0 9.69 0.28 2.65 2.8 22
    2.5 50/0.26 2.2 7.6 0.35 2.7 3.0 27
    3 44/0.31 2.4 6.36 0.32 3.25 3.4 35
    4 56/0.31 2.8 4.71 0.4 3.4 3.7 43
    6 84/0.31 3.4 3.14 0.4 4.0 4.3 61
    10 80/0.41 4.5 1.82 0.6 5.3 6.0 108
    16 126/0.41 5.8 1.16 0.65 6.4 7.2 161
    20 152/0.41 6.3 0.955 0.65 7.0 7.8 200
    25 196/0.41 7.2 0.743 0.65 7.9 8.7 257

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
