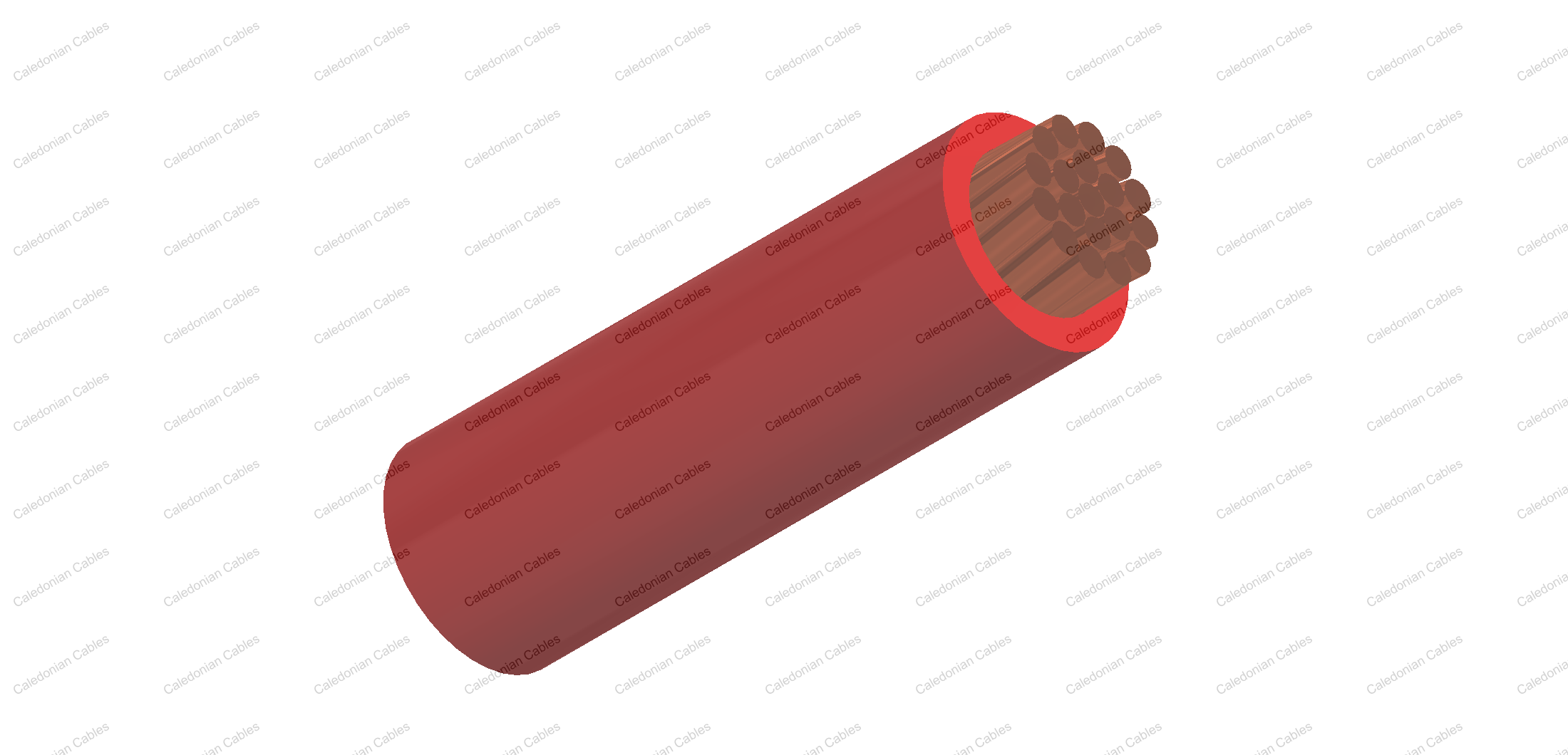

This XLPE insulated single-core cable is used in motor and battery ground low voltage circuit applications with high temperatures (Rated for continuous use from -40°C up to 125°C), tight spaces, and where aging and abrasion resistance are necessary.

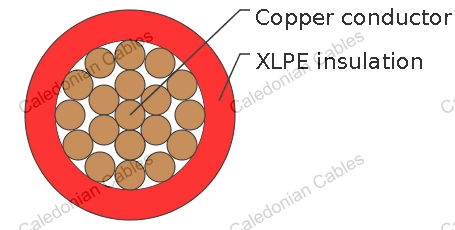

Conductor : Annealed stranded copper(Type A)
Insulation : XLPE
Standard Compliance : ISO 6722 Class C
Operating temperature : –40°C to 125°C
| Conductor Construction | Insulation | Cable | |||||
|---|---|---|---|---|---|---|---|
| Nominal Cross-Section | No. and Dia. of Wires | Diameter of Conductor Max. | Resistance at 20°C Bare/Tinned Max. | Nominal Thickness | Overall Diameter Min. | Overall Diameter Max. | Weight Approx. |
| mm² | No./mm | mm | mΩ/m | mm | mm | kg/km | |
| 0.22 | 7/0.21 | 0.7 | 86.5 | 0.2 | 1.15 | 1.2 | 3.4 |
| 0.35 | 7/0.27 | 0.9 | 54.4 | 0.25 | 1.2 | 1.3 | 4. |
| 0.5 | 19/0.19 | 1.1 | 37.1 | 0.28 | 1.4 | 1.6 | 7 |
| 0.75 | 19/0.24 | 1.3 | 24.7 | 0.3 | 1.7 | 1.9 | 9.5 |
| 1 | 19/0.27 | 1.5 | 18.5 | 0.3 | 1.9 | 2.1 | 12 |
| 1.5 | 19/0.33 | 1.8 | 12.7 | 0.3 | 2.2 | 2.4 | 17 |
| 2.0 | 19/0.38 | 2.0 | 9.42 | 0.28 | 2.8 | 2.85 | 26 |
| 2.5 | 37/0.28 | 2.2 | 7.6 | 0.35 | 2.7 | 3.0 | 27 |
* Note: Other configurations, sizes, colors and length not specified herein are available upon request.
