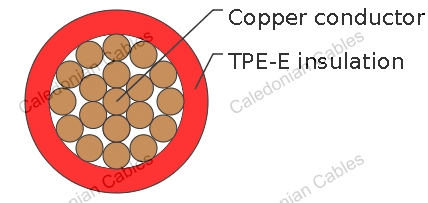

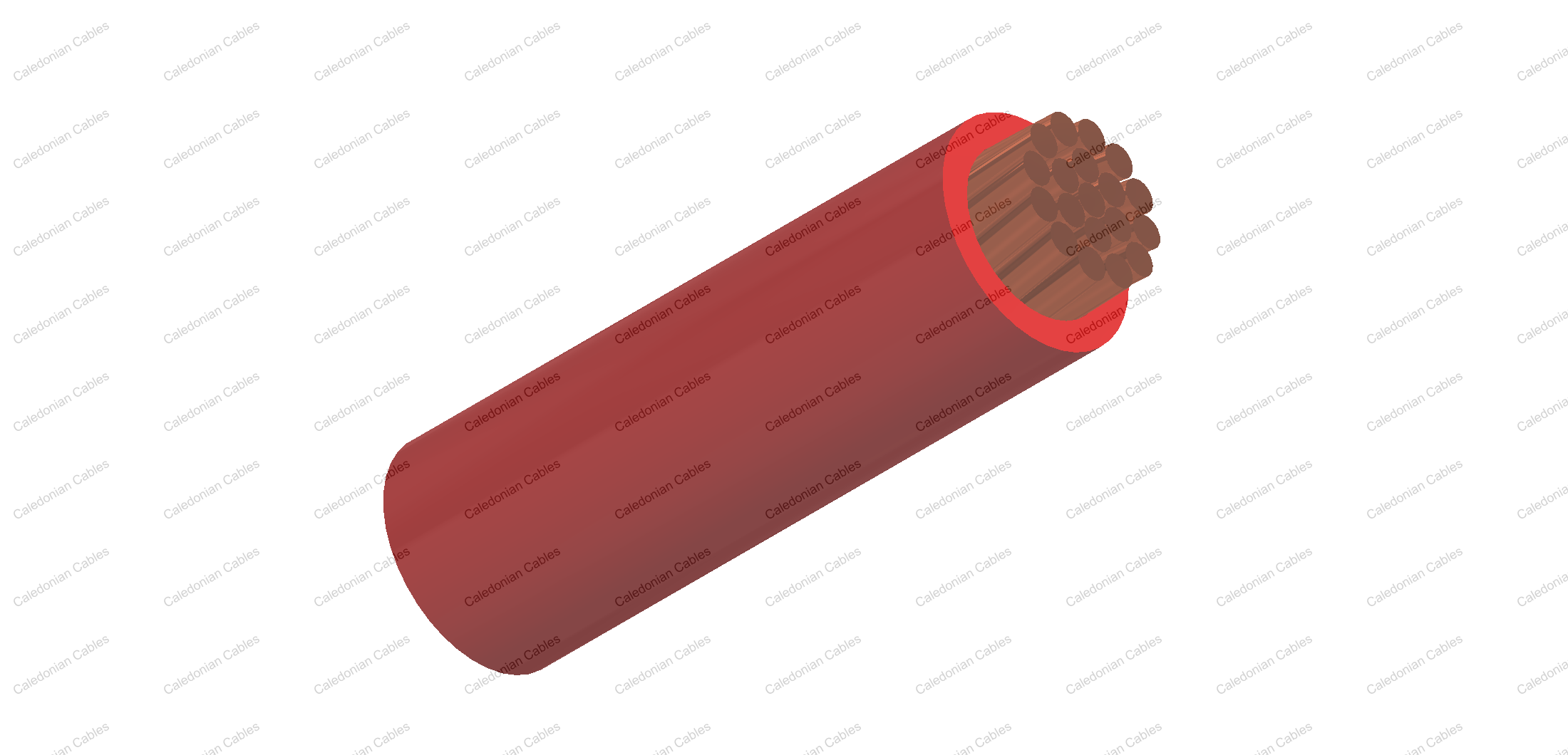

This TPE insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting ,charging,lighting,signal and instrument panel circuits.
Limited resistance to hydrolysis
Operating temperature: –40°C to +150°C
| Conductor Construction | Insulation | Cable | |||||
|---|---|---|---|---|---|---|---|
| Nominal cross- section | No. and Dia. of ires | Diameter of Conductor max. |
Electrical Resistance at 20°C Bare/Tinned max. |
Nominal Thickness | Overall Diameter min. |
Overall Diameter max. |
Weight approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | kg/km | |
| 1x 0.22 | 7/0.21 | 0.7 | 84.8 | 0.2 | 1.1 | 1.2 | 3 |
| 1x 0.35 | 7/0.26 | 0.8 | 52 | 0.2 | 1.2 | 1.6 | 5 |
| 1x 0. 5 | 19/0.19 | 1.0 | 37.1 | 0.22 | 1.4 | 1.6 | 6 |
| 1x 0. 75 | 19/0.23 | 1.2 | 24.7 | 0.24 | 1.7 | 1.9 | 9 |
| 1x1 | 19/0.26 | 1.35 | 18.5 | 0.24 | 1.9 | 2.1 | 11 |
| 1x 1.5 | 19/0.32 | 1.7 | 12.7 | 0.24 | 2.2 | 2.4 | 17 |
| 1x 2 | 19/0.37 | 2.0 | 9.42 | 0.28 | 2.5 | 2.8 | 21 |
| 1x 2.5 | 19/0.41 | 2.2 | 7.6 | 0.28 | 2.7 | 3.0 | 26 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
