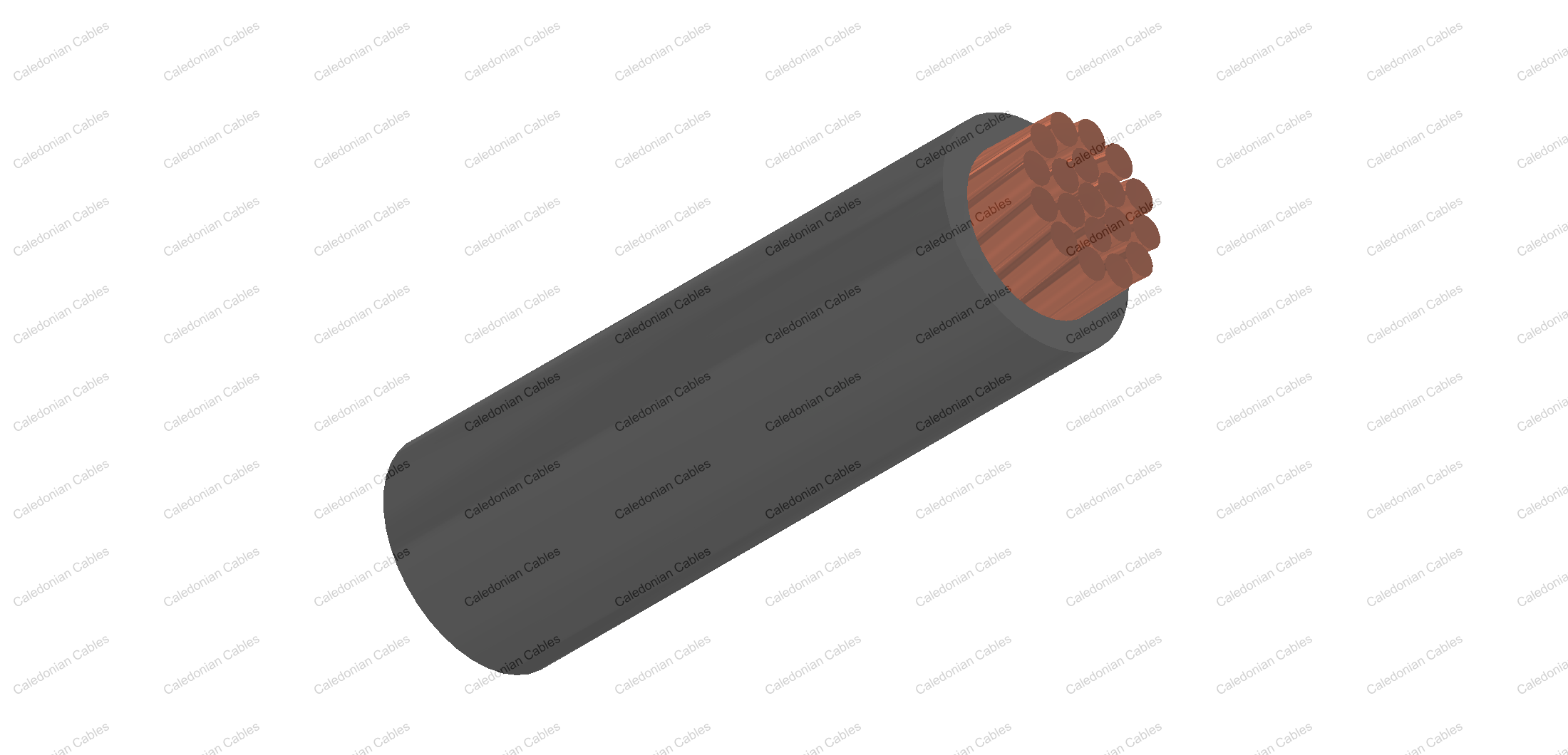

    FLR12Y-A

    Application and Description

    This TPE-E insulated single-core cable is used for cable harnesses.

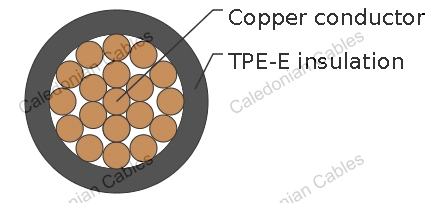

    Construction

    • Conductor: Cu-ETP1 bare according to DIN EN 13602
    • Insulation: TPE-E
    • Standard Compliance: ISO 6722 Class D

    Technical Parameters

    Operating temperature: –40°C to +150°C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of ires Diameter of Conductor
    max.
    Electrical Resistance at 20°C Bare/Tinned
    max.
    Nominal Thickness Overall Diameter
    min.
    Overall Diameter
    max.
    Weight approx.
    mm2 No./mm mm mΩ/m mm   mm kg/km
    1x0.22 7/0.21 0.70 86.5 0.20 1.1 1.20 3.1
    1x0.35 7/0.26 0.70 55.5 0.20 1.2 1.30 4.5
    1x0.50 19/0.19 1.00 38.2 0.22 1.4 1.60 6.6
    1x0.75 19/0.23 1.20 25.4 0.24 1.7 1.90 9.0
    1x1.00 19/0.26 1.35 19.1 0.24 1.9 2.10 11
    1x1.50 19/0.32 1.70 13.0 0.24 2.2 2.40 16
    1x2.50 19/0.41 2.20 7.82 0.28 2.7 3.00 26

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
