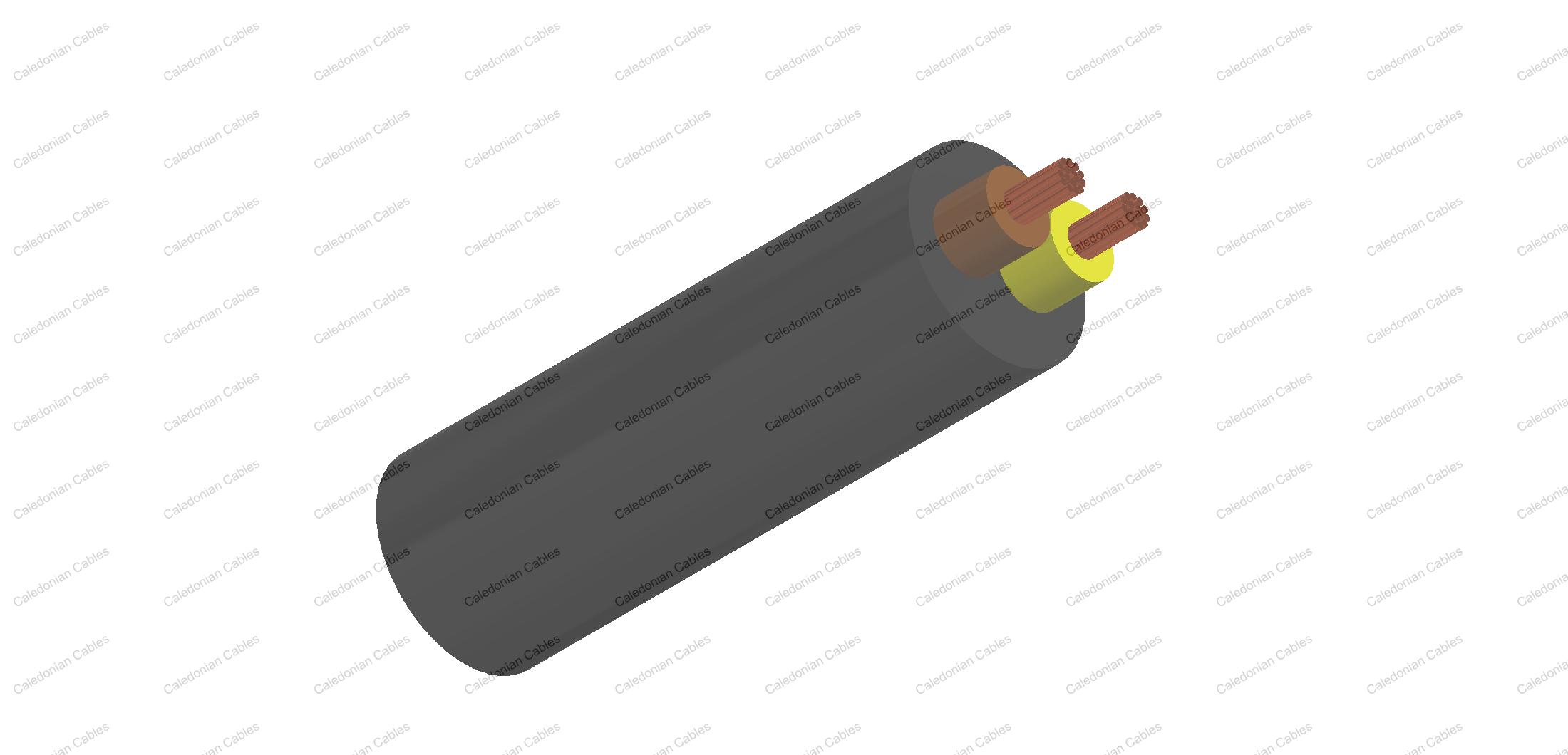

This EVA insulated , PUR sheathed multi-cores cable is used for ABS braking systems, wiring inside the engine compartment.

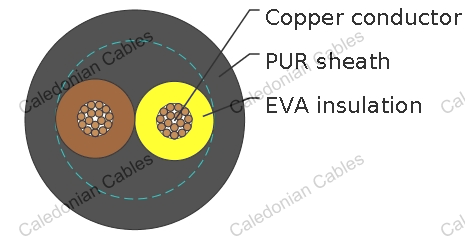

Conductor : Cu-ETP1 tinned according to DIN EN 13602
Insulation : Ethylene vinyl acetate (EVA)
Sheath : Polyurethane (PUR)
Sheath colour : Black
Standard : ISO 6722 Class C
Good flexibility and Good reversed bending strength. Conductors with 3 and 4 cores for additional functions. Also suitable for wiring inside the engine compartment.
Operating temperature : –40°C to +125 °C
| Conductor Construction | Insulation | Cable | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Nominal cross- section | No. and Dia. of Wires | Diameter max. | Electrical Resistance at 20°C Max. | Thickness Wall nom. | Diameter of Core | Sheath Thickness | Overall Diameter min. | Overall Diameter max. | Weight Approx. |
| mm² | No./mm | mm | mΩ/m | mm | mm | mm | mm | mm | kg/km |
| 2x0.50 | 16/0.21 | 1.00 | 40.10 | 0.60 | 2.20 | 0.85 | 5.90 | 6.30 | 44 |
| 2x0.75 | 40/0.16 | 1.10 | 27.10 | 0.60 | 2.20 | 0.90 | 6.40 | 6.80 | 49 |
| 2x1.50 | 30/0.26 | 1.70 | 13.70 | 0.60 | 2.80 | 0.90 | 7.60 | 8.00 | 66 |
| 3x0.50 | 16/0.21 | 1.00 | 40.10 | 0.60 | 2.20 | 0.90 | 6.00 | 6.40 | 51 |
| 3x1.50 | 30/0.26 | 1.70 | 13.70 | 0.70 | 2.90 | 1.10 | 8.10 | 8.70 | 107 |
*Note : Other configurations, sizes, colors and length not specified herein are available upon request.
