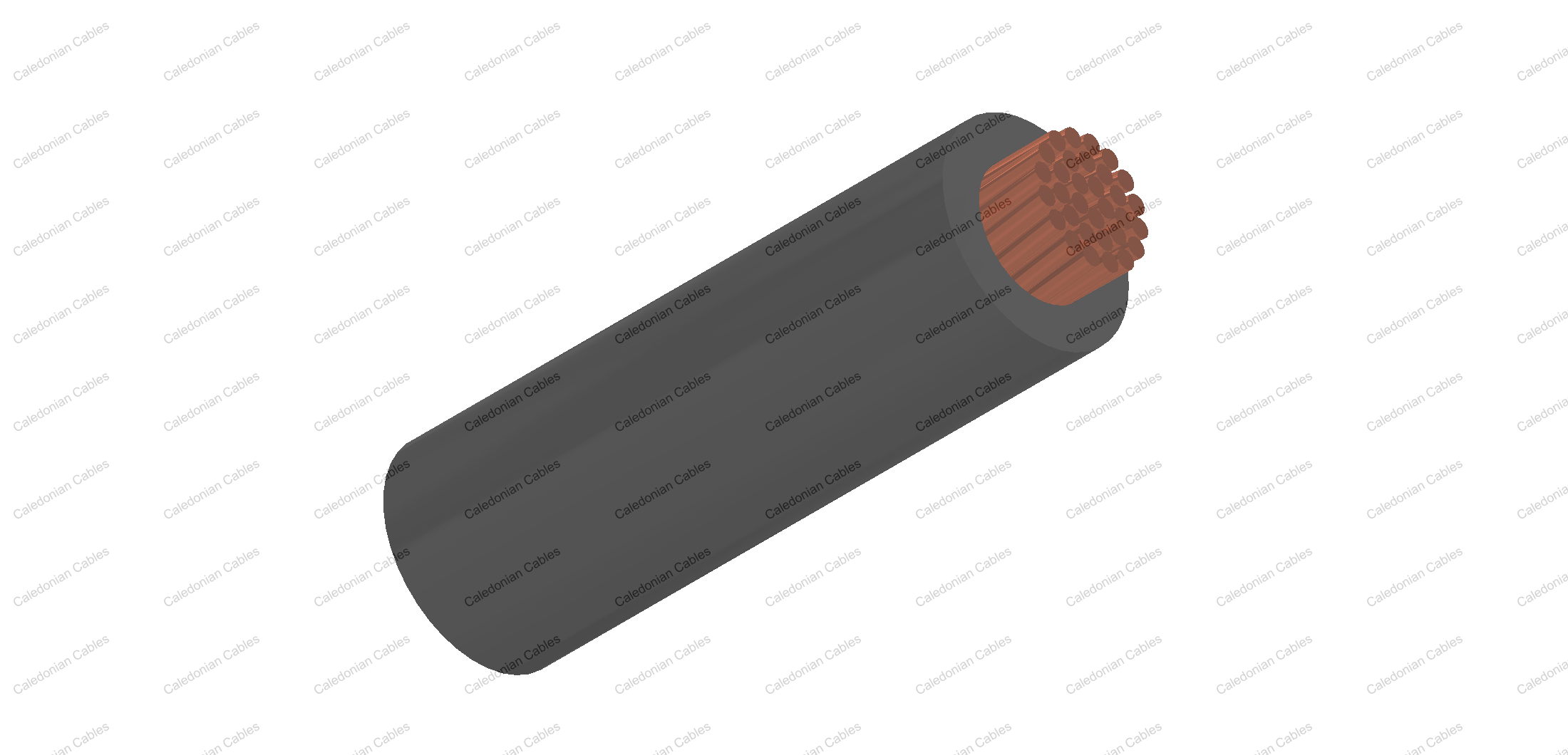

    FL4G

    Application and Description

    This EVA insulated single-core cable is used for cable harnesses.

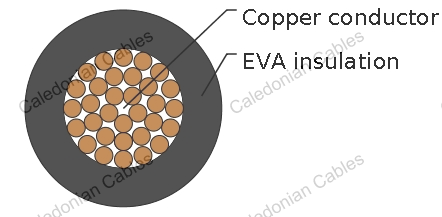

    Construction

    • Conductor: Cu-ETP1 bare or tinned according to DIN EN13602
    • Insulation: Cross-linked ethylene/vinylacetate insulation(EVA)
    • Standard Compliance: ISO 6722 Class D

    Technical Parameters

    Operating temperature: –40°C to 140°C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of ires Diameter max. Resistance at 20°C max. Thickness Wall min. Overall Diameter Weight approx.
    mm2 No./mm mm mΩ/m mm mm kg/km
    1x0.50 16/0.21 1.10 38.2 0.48 2.3 9
    1x0.75 24/0.21 1.30 25.4 0.48 2.5 11
    1x1.00 32/0.21 1.50 19.1 0.48 2.7 14
    1x1.50 30/0.26 1.80 13.0 0.48 3.0 19
    1x2.50 50/0.26 2.20 7.82 0.56 3.6 30
    1x4.00 56/0.31 2.75 4.85 0.64 4.4 53
    1x6.00 84/0.31 3.40 3.23 0.64 5.0 68

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
