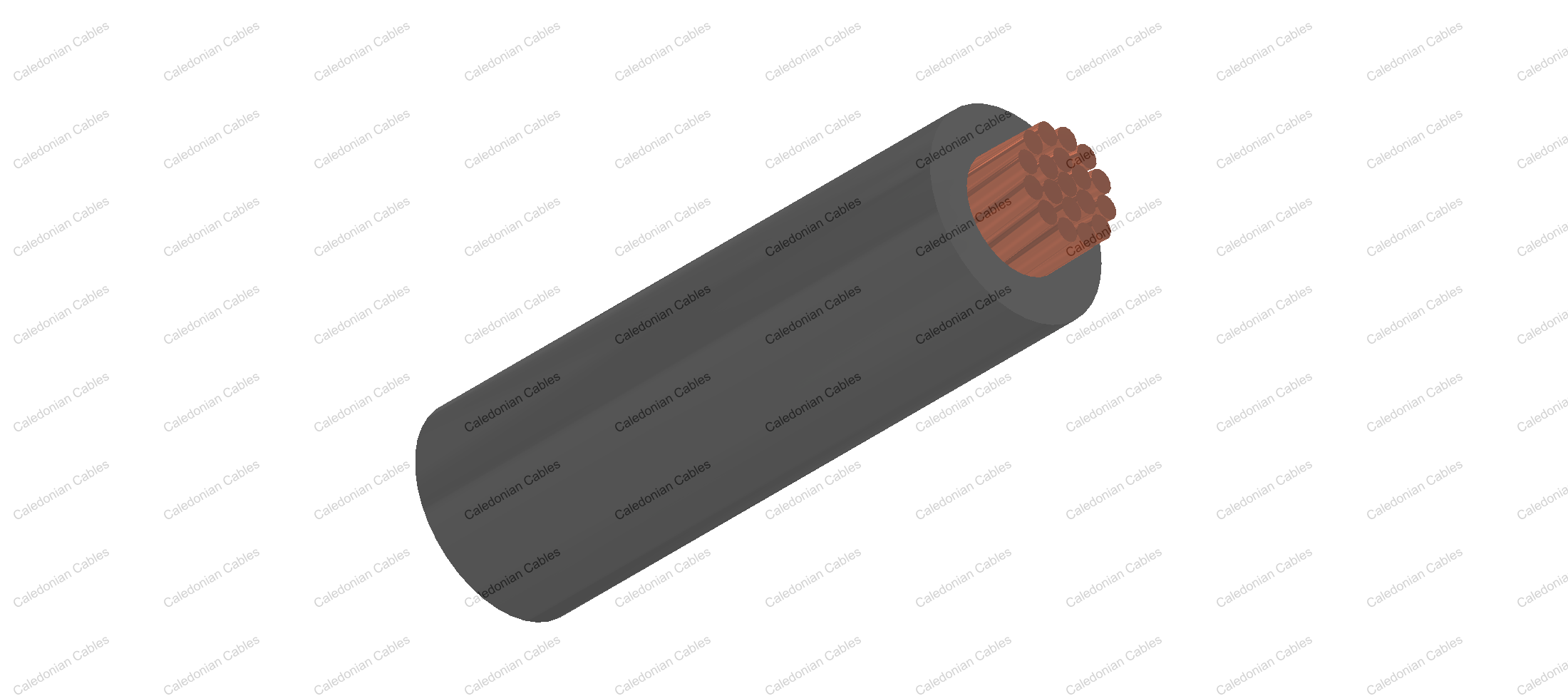

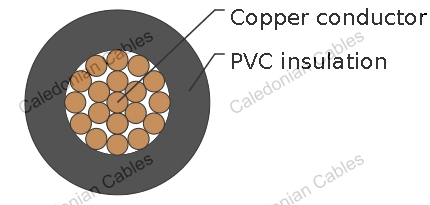

This PVC insulated single-core cable is used for automobiles, vehicles and Motorcycles.
Operating temperature: –40 °C to +100 °C
Rated voltage:25VA and 60 VDC
| Conductor Construction | Insulation | Cable | |||||
|---|---|---|---|---|---|---|---|
| Nominal cross- section | No. and Dia. of Wires | Diameter max. |
Electrical Resistance at 20°C Max. |
Thickness Wall nom. |
Overall Diameter min. |
Overall Diameter max. |
Weight Approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | kg/km |
| 1x0.3f | 19/0.16 | 0.8 | 48.6 | 0.3 | 1.4 | 1.5 | 5 |
| 1x0.5f | 19/0.16 | 1.0 | 34.6 | 0.3 | 1.6 | 1.7 | 7 |
| 1x0.75f | 19/0.23 | 1.2 | 23.6 | 0.3 | 1.8 | 1.9 | 10 |
| 1x1.25f | 37/0.21 | 1.5 | 14.6 | 0.3 | 2.1 | 2.2 | 14 |
The "f" in the nominal size column indicates a flexible conductor with a finer wire diameter.
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
