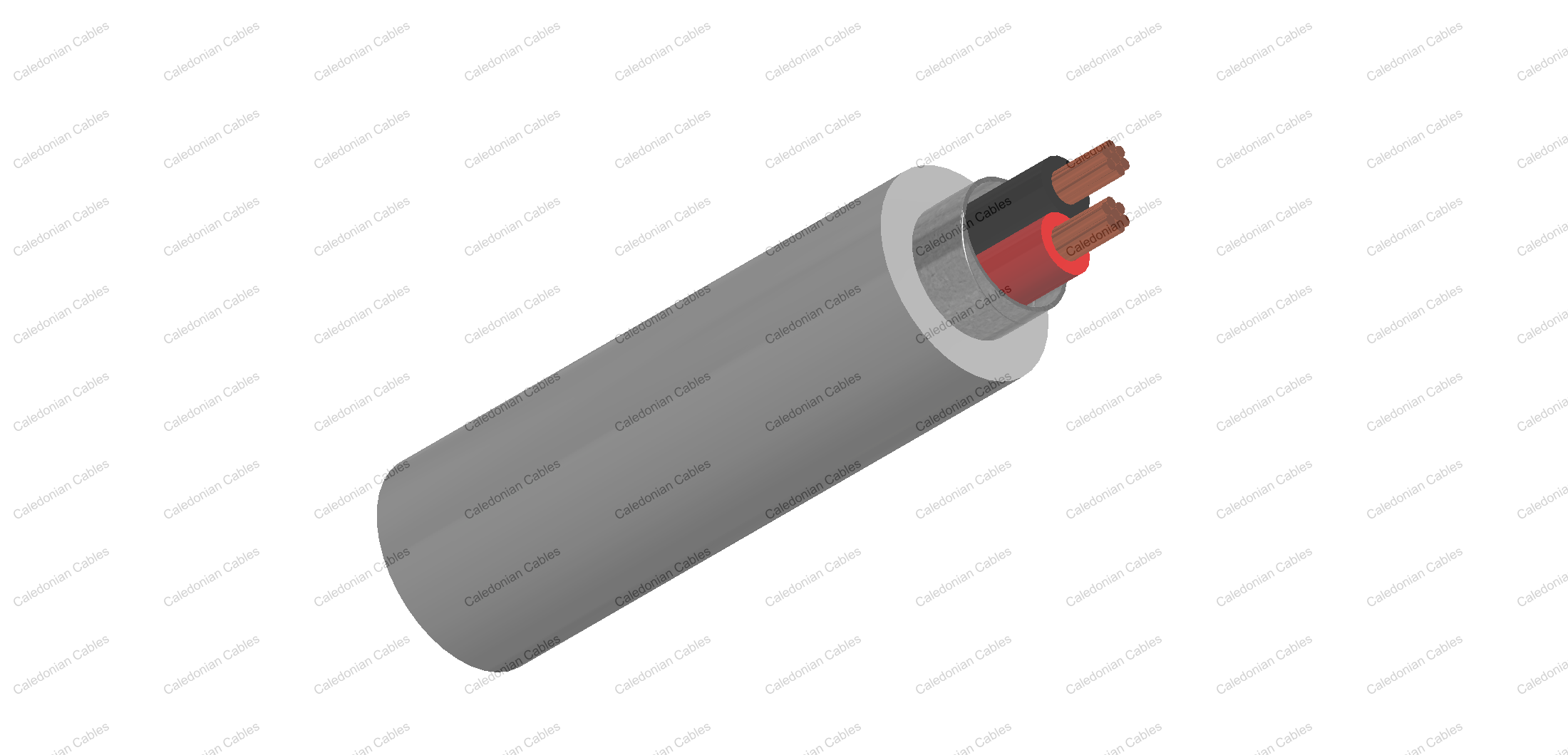

    AVSS-BS

    Application and Description

    This PVC insulated cable is used in low electrostatic capacitance in automobiles(vehicles). Thinner insulation than AVS type. Suitable for the consideration of the shielding characteristic.

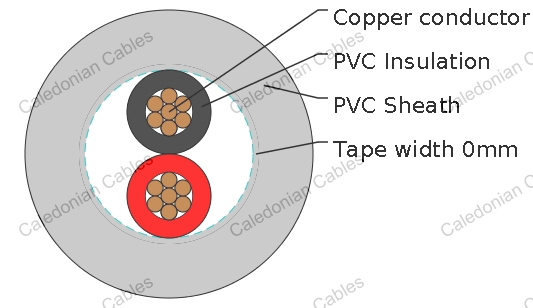

    Construction

    • Conductor: Annealed stranded copper
    • Insulation: PVC
    • Shield: Tin coated annealed copper
    • Sheath: PVC
    • Standard Compliance: JASO D611; ES SPEC

    Technical Parameters

    Operating temperature:–40 °C to +120 °C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of Wires Diameter
    max.
    Electrical
    Resistance at
    20°C
    Max.
    Thickness
    Wall
    nom.
    Overall
    Diameter
    min.
    Overall
    Diameter
    max.
    Weight
    Approx.
    mm2 No./mm mm mΩ/m mm mm mm kg/km
    1/0.3 70.26 0.8 50.2 0.3 3.2 3.4 17
    2/0.3 7/0.26 0.8 50.2 0.3 4.6 4.8 28
    3/0.3 7/0.26 0.8 50.2 0.3 4.8 5.0 35
    4/0.3 7/0.26 0.8 50.2 0.3 5.2 5.4 43
    1/0.5 7/0.32 1.0 32.7 0.3 3.4 3.6 22
    2/0.5 7/0.32 1.0 32.7 0.3 5.0 5.2 36
    3/0.5 7/0.32 1.0 32.7 0.3 5.3 5.5 45
    4/0.5 7/0.32 1.0 32.7 0.3 5.7 5.9 55
    1/0.85 19/0.24 1.2 21.7 0.3 3.5 3.7 25
    2/0.85 19/0.24 1.2 21.7 0.3 5.4 5.6 42
    3/0.85 19/0.24 1.2 21.7 0.3 5.6 5.9 58
    4/0.85 19/0.24 1.2 21.7 0.3 6. 6.3 64
    1/1.25 19/0.29 1.5 14.9 0.3 3.9 4.1 33
    2/1.25 19/0.29 1.5 14.9 0.3 6.0 5.2 56
    3/1.25 19/0.29 1.5 14.9 0.3 6.4 6.6 72
    4/1.25 19/0.29 1.5 14.9 0.3 6.9 7.1 90

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
