    ATW-FEP

    Japanese Standard Automotive Cable

    Application and Description

    This FEP insulated single-core cable is used for wiring of car engine room, electrical and electronic components and other product up to 200°C temperature.

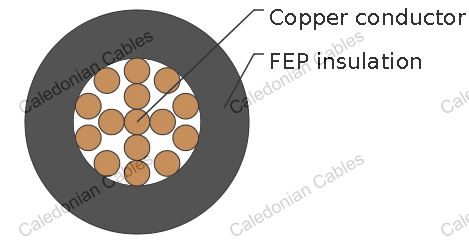

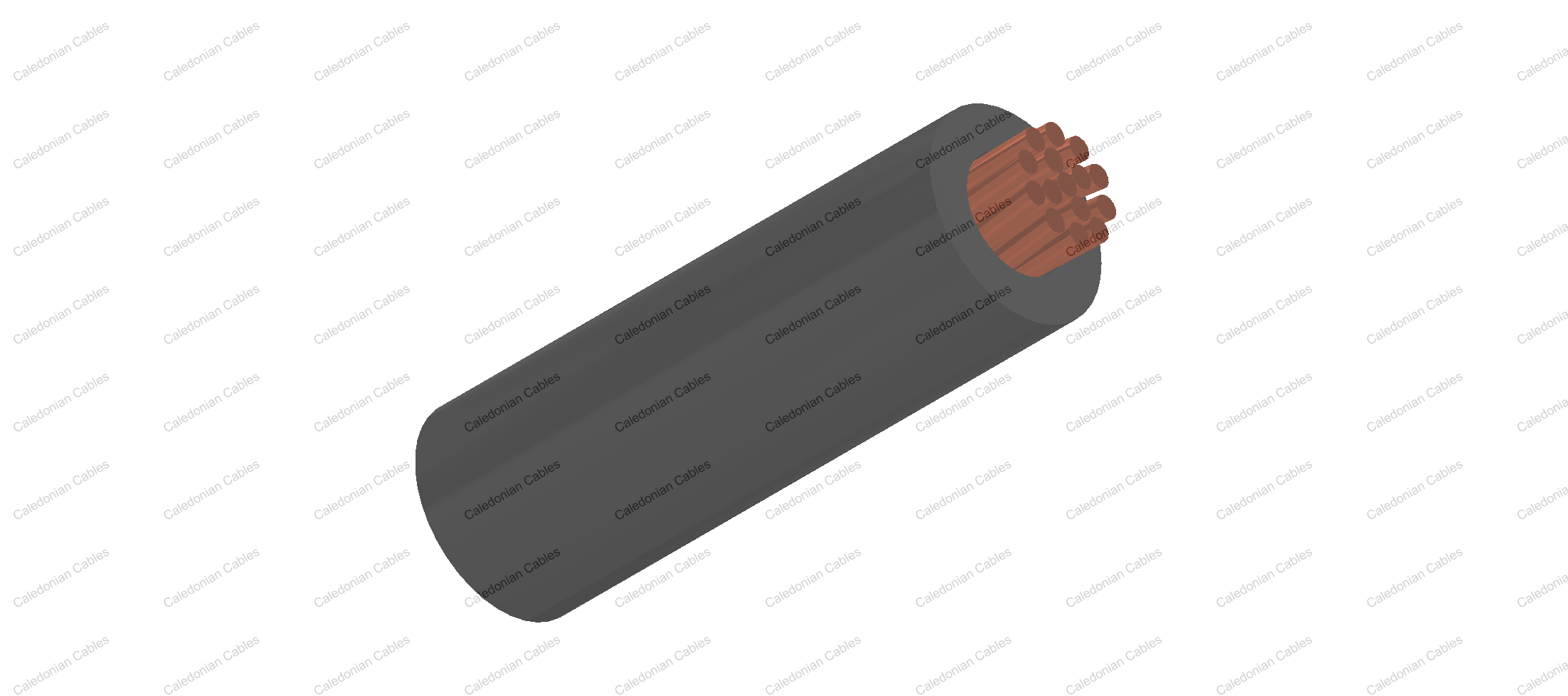

    Construction

    • Conductor: Tin coated annealed stranded copper
    • Insulation: Teflon(FEP)
    • Standard Compliance: ES SPEC

    Technical Parameters

    Operating temperature:–40 °C to +200°C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of Wires Diameter
    max.
    Electrical
    Resistance at
    20°C
    Max.
    Thickness
    Wall
    nom.
    Overall
    Diameter
    min.
    Overall
    Diameter
    max.
    Weight
    Approx.
    mm2 No./mm mm mΩ/m mm mm mm kg/km
    1x0.30 15/0.18 0.8 51.5 0.3 1.4 1.5 5.9
    1x0.50 20/0.18 0.9 38.6 0.3 1.6 1.7 7.6
    1x0.85 34/0.18 1.2 25.8 0.3 1.8 1.9 11
    1x1.25 50/0.18 1.5 15.5 0.3 2.1 2.2 15.5
    1x2.00 81/0.18 1.9 9.78 0.4 2.6 2.7 25
    1x3.00 120/0.18 2.6 6.62 0.4 3.4 3.6 39
    1x5.00 210/0.18 3.3 3.81 0.5 4.2 4.5 63

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
