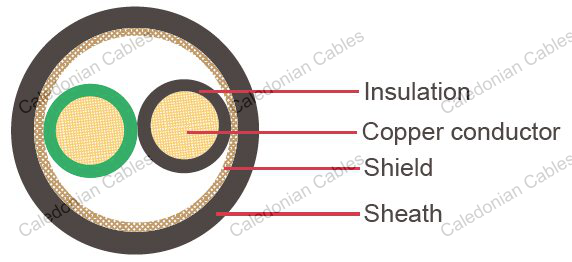

This XLPE insulated cable is used in low voltage signal circuits in automobiles. Superior heat resistance with irradiated PE. Suitable for the consideration of the shielding characteristic.
Operating temperature:–40 °C to +120 °C
| Conductor Construction | Insulation | Cable | |||||
|---|---|---|---|---|---|---|---|
| Nominal cross- section | No. and Dia. of Wires | Diameter max. |
Electrical Resistance at 20°C Max. |
Thickness Wall nom. |
Overall Diameter min. |
Overall Diameter max. |
Weight Approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | kg/km |
| 0.5 | 20/0.18 | 0.93 | 0.037 | 0.6 | 3.7 | 3.9 | 21 |
| 0.85 | 34/0.18 | 1.21 | 0.022 | 0.6 | 4.2 | 4.4 | 27 |
| 1.25 | 50/0.18 | 1.50 | 0.015 | 0.6 | 4.5 | 4.7 | 31 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
