    AEX-BS

    Application and Description

    This XLPE insulated single-core cable is used in low voltage circuits in automobiles(vehicles and motorcycles) ,Superior heat resistance with irradiated PE,Suitable for the consideration of very flexibility and thermal resistance.

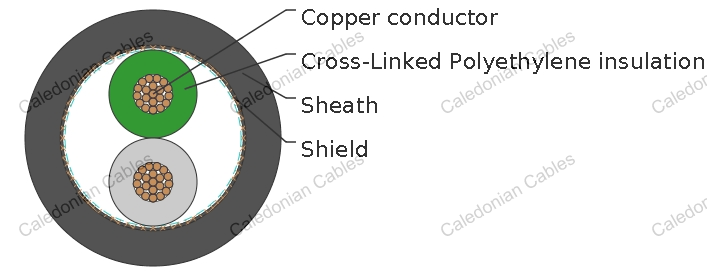

    Construction

    • Conductor: Annealed standed copper
    • Insulation: Cross-linked Polyethylene (XLPE)
    • Standard Compliance: ES SPEC

    Technical Parameters

    Operating temperature:–40 °C to +135 °C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of Wires Diameter
    max.
    Electrical
    Resistance at
    20°C
    Max.
    Thickness
    Wall
    nom.
    Overall
    Diameter
    min.
    Overall
    Diameter
    max.
    Weight
    Approx.
    mm2 No./mm mm mΩ/m mm mm mm kg/km
    0.5f 20/0.18 1.0 0.037 0.6 4.0 4.2 25
    0.85f 34/0.18 1.2 0.021 0.6 7.0 7.2 62
    1.25f 50/0.18 1.5 0.015 0.6 4.5 4.7 40

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
