    All Aluminum Conductor (AAC) Cables

    Application

    AAC conductor is also known as aluminium stranded conductor. It is manufactured from electrolytically refined aluminium, with a minimum purity of 99.7%.

    Standards

    Basic design to BS 215-1 / BS EN 50182 / IEC 61089 / ASTM B 231/B 231M / DIN 48201-5 standards

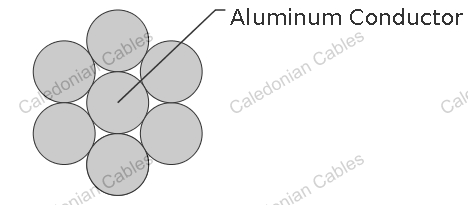

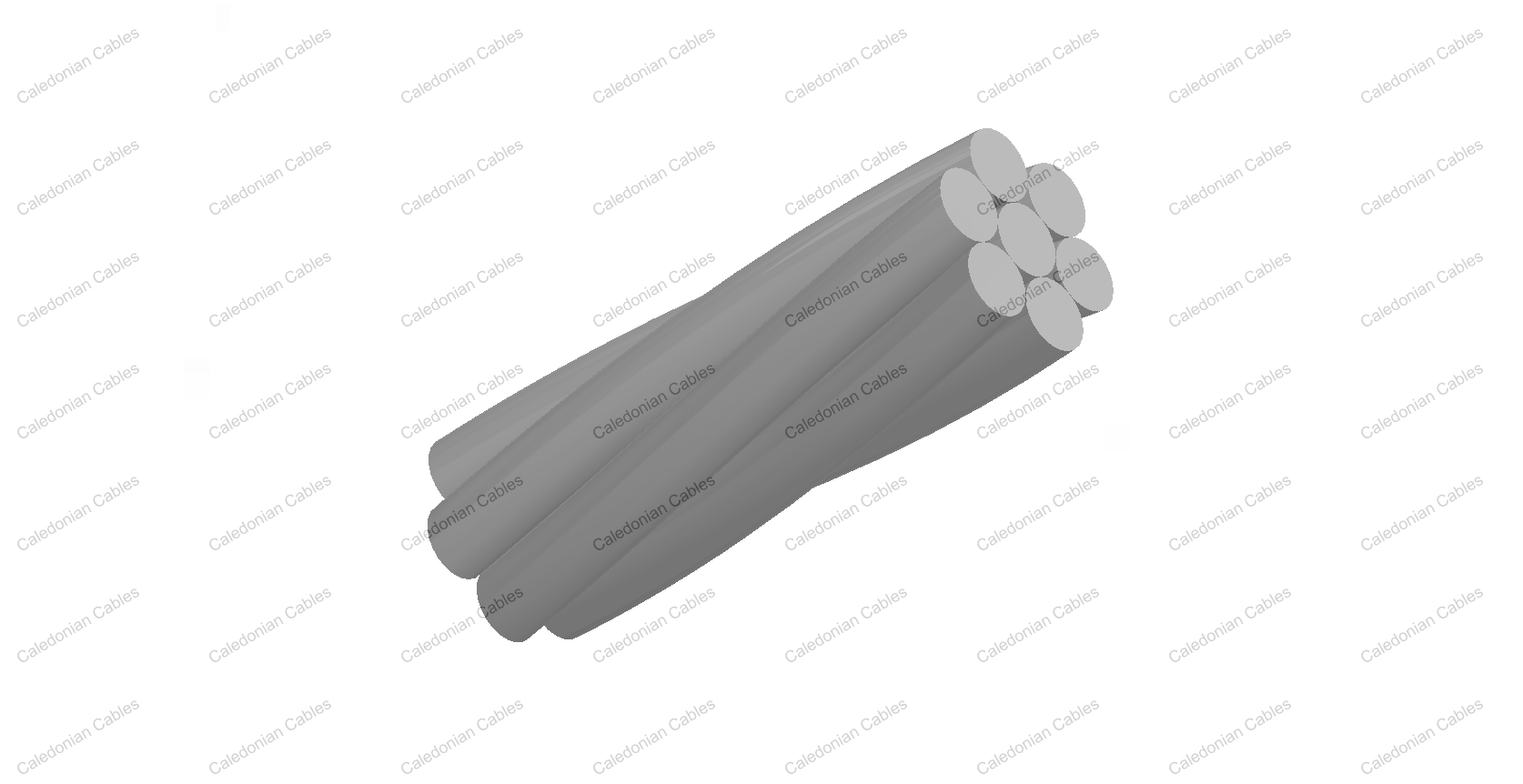

    Cable Construction

    Concentric lay stranded Aluminium Conductor ( AAC) is made up of one or more strands of hard drawn 1350 aluminum alloy. These conductors are used in low, medium and high voltage overhead lines. AAC has seen extensive use in urban areas where spans are usually short but high conductivity us required. The excellent corrosion resistance of aluminium has made AAC a conductor of choice in coastal areas. Because of its relatively poor strength to weight ratio, AAC had limited use in transmission lines and rural distribution because of long spans utilized. All aluminium conductors are made up of one or more strands of aluminium wire dep.

    Electrical Properties

    Density@20oC 2.703 kg/dm
    Temperature Coefficient@20°C 0.00403 (°C)
    Resistivity@20°C 0.028264
    Linear Expansivity 23 x10-6 (°C)

    Service Conditions

    Ambient Temperature -5°C - 50°C
    Wind Pressure 80 – 130kg/m2
    Seismic Acceleration 0.12 - 0.05g
    Isokeraunic Level 10 – 18
    Relative Humidity 5 – 100%
    Density@20oC 2.703 kg/dm
    Temperature Coefficient@20°C 0.00403 (°C)
    Resistivity@20°C 0.028264
    Linear Expansivity 23 x10-6 (°C)

    Construction Parameters

    BS 215 Part 1
    Code Nominal Area Stranding Overall Diameter Weight Rated Strength Electrical Resistance Current Rating*
    Nominal Teorical
      mm2 mm2 No.×mm mm kg/km KN Ω/Km A
    Midge 22 23.33 7/2.06 6.18 64 3.99 1.227 106
    Gnat 25 26.8 7/2.21 6.6 73.8 4.83 1.0643 122
    Mosquito 35 37 7/2.59 7.8 102.1 6.27 0.7749 141
    Ladybird 40 42.8 7/2.79 8.4 117.9 7.28 0.6678 157
    Ant 50 52.83 7/3.1 9.3 145 8.28 0.5419 175
    Fly 60 63.55 7/3.4 10.2 174 9.9 0.4505 196
    Wasp 100 106 7/4.39 13.17 290 16 0.2702 268
    Hornet 150 157.6 19/3.25 16.25 434 25.7 0.1825 342
    Charfer 200 213.2 19/3.78 18.9 587 35.4 0.1349 412
    Cockroach 250 265.7 19/4.22 21.1 731 40.4 0.1083 471
    Butterfly 300 322.7 19/4.65 23.25 888 48.75 0.08916 530
    Centipede 400 415.2 37/3.78 26.46 1145 63.1 0.06944 616
    Maybug 475 486,1 37/4,09 28,6 1342 0.05571 0,05900 740
    Skorpion 500 529,8 37/4,27 29,9 1460 0.04916 0,05400 887
    Cicada 600 628,3 37/4,65 32,6 1733 0.03423 0,04500 1056

    Note: *The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.

    BS EN 50182
    Code Nominal Area Stranding Overall Diameter Weight Rated Strength Electrical Resistance Current Rating*
    Nominal Teorical
      mm2 mm2 No.×mm mm kg/km KN Ω/Km A
    Gnat 25 26.9 7/2.21 6.63 73 4.83 1.0643 115
    Mosquito 35 36.9 7/2.59 7.77 101 6.27 0.7749 140
    Ladybird 40 42.8 7/2.79 8.37 117 7.28 0.6678 154
    Bluebottle 70 73.6 7/3.66 10.98 201 11.78 0.388 215
    Earwig 75 78.6 7/3.78 11.34 215 12.57 0.3638 223
    Grasshopper 80 84.1 7/3.91 11.73 230 13.45 0.34 233
    Clegg 90 95.6 7/4.17 12.51 261 15.3 0.2989 252
    Beetle 100 106.4 19/2.67 13.35 292 18.08 0.2701 269
    Bee 120 132 7/4.90 14.7 361 21.12 0.2165 307
    Caterpillar 180 185.9 19/3.53 17.65 511 29.75 0.1546 379
    Spider 220 237.6 19/3.99 19.95 653 38.01 0.121 440
    Moth 350 373.1 19/5.00 25 1025 59.69 0.077 579
    Drone 350 372.4 37/3.58 25.06 1027 59.59 0.0774 577
    Maybug 450 486.1 37/4.09 28.63 1341 77.78 0.0593 677
    Scorpion 500 529.8 37/4.27 29.89 1461 84.77 0.0544 713
    Cicada 600 628.3 37/4.65 32.55 1733 100.54 0.0459 788

    Note: *The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.

    IEC 61089
    Code Nominal Area Stranding Overall Diameter Weight Rated Strength Electrical Resistance Current Rating*
      mm2 No.×mm mm kg/km KN Ω/Km A
    10 10 7/1.35 4.05 27.4 1.95 2.8633 62
    16 16 7/1.71 5.13 43.8 3.04 1.7896 84
    25 25 7/2.13 6.39 68.4 4.5 1.1453 110
    40 40 7/2.70 8.1 109.4 6.8 0.7158 147
    63 63 7/3.39 10.17 172.3 10.39 0.4545 195
    100 100 19/2.59 12.95 274.8 17 0.2877 259
    125 125 19/2.89 14.45 343.6 21.25 0.2302 297
    160 160 19/3.27 16.35 439.8 26.4 0.1798 345
    200 200 19/3.66 18.3 549.7 32 0.1439 396
    250 250 19/4.09 20.45 687.1 40 0.1151 454
    315 315 37/3.29 23.03 867.9 51.97 0.0916 522
    400 400 37/3.71 25.97 1102 64 0.0721 603
    450 450 37/3.94 27.58 1239.8 72 0.0641 647
    500 500 37/4.15 29.05 1377.6 80 0.0577 688
    560 560 37/4.39 30.73 1542.9 89.6 0.0515 736
    630 630 61/3.63 32.67 1738.3 100.8 0.0458 789
    710 710 61/3.85 34.65 1959.1 113.6 0.0407 845
    800 800 61/4.09 36.81 2207.4 128 0.0361 905
    900 900 61/4.33 38.97 2483.3 144 0.0321 967
    1000 1000 61/4.57 41.13 2759.2 160 0.0289 1026
    1120* 1120 91/3.96 43.56 3093.5 179.2 0.0258 1091
    1250* 1250 91/4.18 45.98 3452.6 200 0.0231 1157
    1400* 1400 91/4.43 48.73 3866.9 224 0.0207 1226
    1500* 1500 91/4.58 50.38 4143.1 240 0.0193 1270

    * The items marked with “*” are not in our current product range and the details are for information only.
    (*) Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.

    ASTM B 231/B 231M
    Code Nominal Area Stranding Overall Diameter Weight Rated Strength Electrical Resistance Current Rating*
      AWG&MCM mm2 No.×mm mm kg/km KN Ω/Km A
    Peachbell 6 13.3 7/1.56 4.68 36.6 2.53 2.1477 75
    Rose 4 21.1 7/1.96 5.88 58.2 3.91 1.3606 99
    Iris 2 33.6 7/2.47 7.41 92.6 5.99 0.8567 132
    Pansy 1 42.4 7/2.78 8.34 116.6 7.3 0.6763 153
    Poppy 1/0.0 53.5 7/3.12 9.36 147.2 8.84 0.5369 176
    Aster 2/0.0 67.4 7/3.50 10.5 185.7 11.1 0.4267 203
    Phlox 3/0.0 85 7/3.93 11.79 233.9 13.5 0.3384 234
    Oxlip 4/0.0 107.2 7/4.42 13.26 295.2 17 0.2675 270
    Valerian 250 126.7 19/2.91 14.55 348.6 20.7 0.2274 299
    Sneezewort 250 126.7 7/4.80 14.4 348.8 20.1 0.2269 299
    Laurel 266.8 135.2 19/3.01 15.05 372.2 22.1 0.2125 312
    Daisy 266.8 135.2 7/4.96 14.88 372.3 21.4 0.2125 311
    Peony 300 152 19/3.19 15.95 418.3 24.3 0.1892 335
    Tulip 336.4 170.5 19/3.38 16.9 469.5 27.3 0.1686 359
    Daffodil 350 177.3 19/3.45 17.25 487.9 28.4 0.1618 369
    Canna 397.5 201.4 19/3.67 18.35 554.9 31.6 0.143 397
    Goldentuft 450 228 19/3.91 19.55 627.6 35 0.126 429
    Syringa 477 241.7 37/2.88 20.16 664.8 38.6 0.1192 444
    Cosmos 477 241.7 19/4.02 20.1 664.8 37 0.1192 444
    Hyacinth 500 253.3 37/2.95 20.65 696.8 40.5 0.1136 458
    Zinnia 500 253.3 19/4.12 20.6 697.1 38.9 0.1134 458
    Dahlia 556.5 282 19/4.35 21.75 775.8 43.3 0.1018 489
    Mistletoe 556.5 282 37/3.12 21.84 775.7 44.3 0.1016 490
    Meadowsweet 600 304 37/3.23 22.61 836.3 47.5 0.0948 511
    Orchid 636 322.3 37/3.33 23.31 886.9 50.4 0.0892 530
    Heuchera 650 329.4 37/3.37 23.59 907.4 51.7 0.0871 538
    Flag 700 354.7 61/2.72 24.48 975.8 57.1 0.0811 561
    Varbena 700 354.7 37/3.49 24.43 975.7 55.4 0.0812 561
    Nasturtium 715.5 362.6 61/2.75 24.75 998.5 58.4 0.0793 569
    Violet 715.5 362.6 37/3.53 24.71 998.5 56.7 0.0794 568
    Cattail 750 380 61/2.82 25.38 1046 60.3 0.0754 587
    Petunia 750 380 37/3.62 25.34 1046 58.6 0.0755 586
    Lilac 795 402.8 61/2.90 26.1 1110 63.8 0.0713 607
    Arbutus 795 402.8 37/3.72 26.04 1109 61.8 0.0715 605
    Snapdragon 900 456 61/3.09 27.81 1256 70.8 0.0628 654
    Cockscomb 900 456 37/3.96 27.72 1256 68.4 0.0631 652
    Goldenrod 954 483.4 61/3.18 28.62 1331 75 0.0593 677
    Magnolia 954 483.4 37/4.08 28.56 1331 72.6 0.0594 676
    Camellia 1000 506.7 61/3.25 29.25 1394 78.3 0.0568 695
    Hawkweed 1000 506.7 37/4.18 29.26 1395 76.2 0.0566 696
    Larkspur 1033.5 523.7 61/3.31 29.79 1442 81.3 0.0547 710
    Bluebell 1033.5 523.7 37/4.25 29.75 1441 78.8 0.0547 710
    Marigold 1113 564 61/3.43 30.87 1553 87.3 0.051 740
    Hawthorn 1192.5 604.2 61/3.55 31.95 1662 93.5 0.0476 771
    Narsissus 1272 644.5 61/3.67 33.03 1774 98.1 0.0445 802
    Columbine 1351 694.8 61/3.78 34.02 1884 104 0.042 829
    Carnation 1431 725.1 61/3.89 35.01 1997 108 0.0396 858
    Gladiolus 1510.5 765.4 61/4.00 36 2108 114 0.0375 885
    Coreopsis 1590 805.7 61/4.10 36.9 2216 120 0.0357 911
    Jassamine 1750 886.7 61/4.30 38.7 2442 132 0.0324 962
    Cowslip* 2000 1013 91/3.77 41.47 2787 153 0.0286 1032
    Sagebrush* 2250 1140 91/3.99 43.89 3166 167 0.0255 1099
    Lupine* 2500 1267 91/4.21 46.31 3519 186 0.0229 1163
    Bitterrot* 2750 1393 91/4.42 48.62 3872 205 0.0208 1223
    Trillium* 3000 1520 127/3.90 50.7 4226 223 0.0193 1271
    Bluebonnet* 3500 1773 127/4.22 54.86 4977 261 0.0165 1373

    * The items marked with “*” are not in our current product range and the details are for information only.
    (*) Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.

    DIN 48201 Part 5
    Nominal Area Stranding Overall Diameter Weight Rated Strength Electrical Resistance Current Rating*
    Nominal Teorical
    mm2 mm2 No.×mm mm kg/km KN Ω/Km A
    16 15.89 7/1.70 5.1 43 2.84 1.8022 83
    25 24.25 7/2.10 6.3 66 4.17 1.181 108
    35 34.36 7/2.50 7.5 94 5.78 0.8333 134
    50 49.48 7/3.00 9 135 7.94 0.5787 168
    50 48.35 19/1.80 9 133 8.45 0.5951 166
    70 65.81 19/2.10 10.5 181 11.32 0.4372 200
    95 93.27 19/2.50 12.5 256 15.68 0.3085 248
    120 116.99 19/2.80 14 322 18.78 0.2459 285
    150 147.11 37/2.25 15.8 406 25.3 0.196 328
    185 181.62 37/2.50 17.5 500 30.54 0.1588 373
    240 242.54 61/2.25 20.3 670 39.51 0.1191 445
    300 299.43 61/2.50 22.5 827 47.7 0.0965 506
    400 400.14 61/2.89 26 1104 60.86 0.0722 602
    500 499.83 61/3.23 29.1 1379 74.67 0.0578 688
    625* 626.2 91/2.96 32.6 1732 95.25 0.0462 786
    800* 802.09 91/3.35 36.9 2218 118.39 0.036 907
    1000* 999.71 91/3.74 41.1 2767 145.76 0.0289 1026

    * The items marked with “*” are not in our current product range and the details are for information only.
    (*) Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.

    Technical Data

    Numbers of Wires Final Modules of Elasticity Coeficient of linear Expansion
    AL Kg/mm2 lb/in2 1/Co 1/Fo
    7 6000 8.5 x106 23.0 x10-6 112.8 x10-6
    19 5700 8.1 x106 23.0 x10-6 112.8 x10-6
    37 5700 8.1 x106 23.0 x10-6 112.8 x10-6
    61 5500 7.8 x106 23.0 x10-6 112.8 x10-6
    91 5500 7.8 x106 23.0 x10-6 112.8 x10-6
