Applications
These cables are used as airfield lighting equipment primary cables for the series circuit connecting the Constant Current Regulators and the isolating transformers, and between the isolating transformers.
Standards
UNE 21161-93 (Spain)

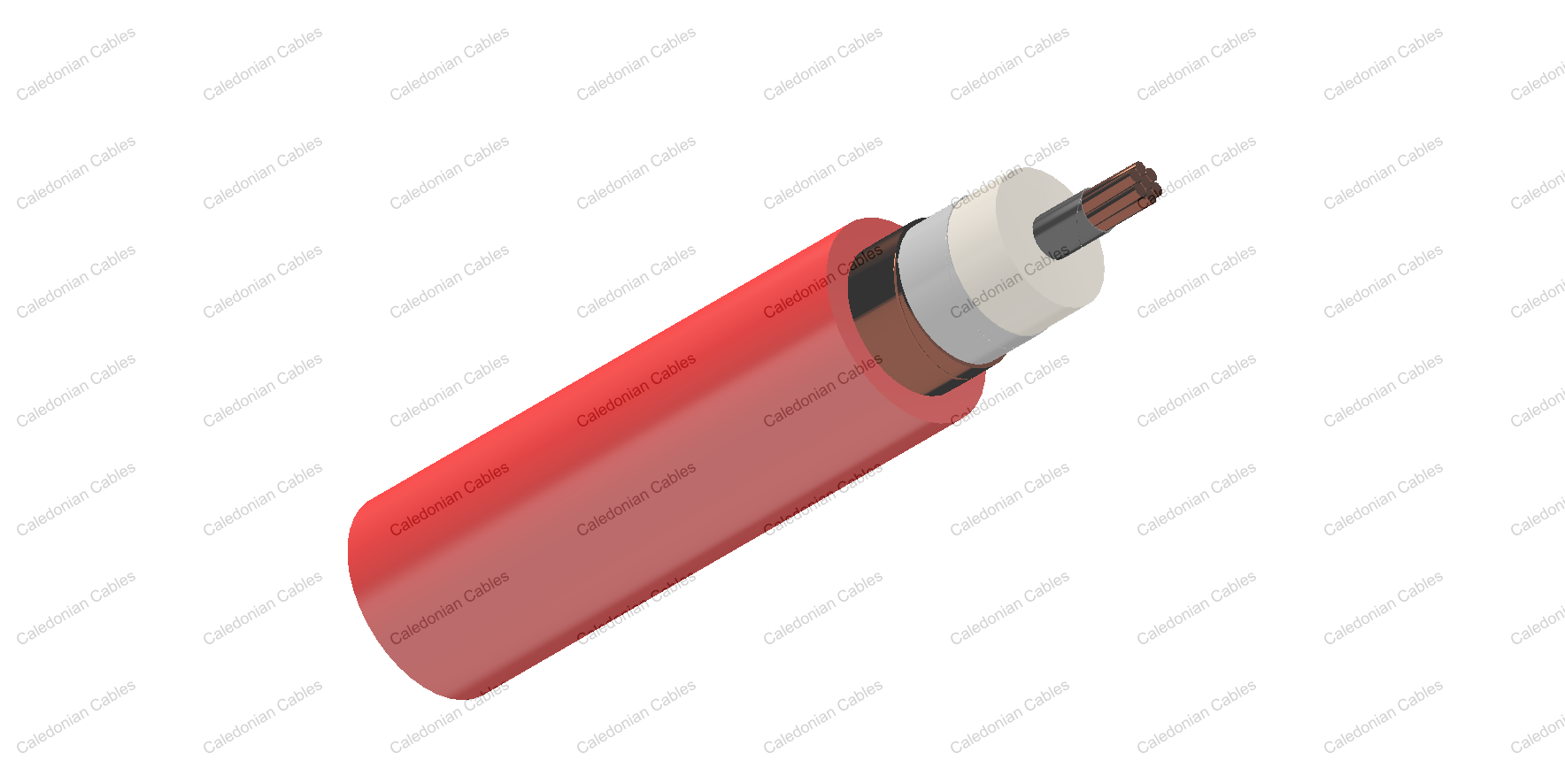

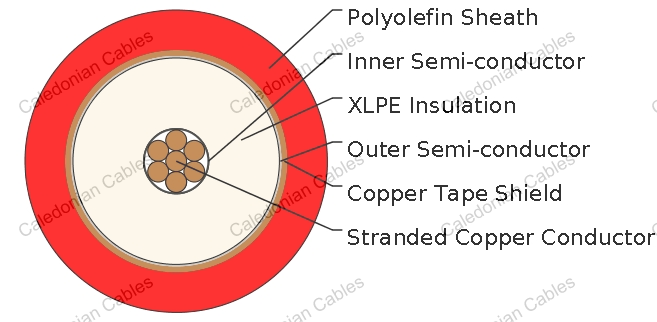

Construction
Conductor: Stranded copper conductor.
Inner Semi-Conductor: Extruded semi-conducting compound.
Insulation: XLPE.
Outer Semi-Conductor: Extruded semi-conducting compound.
Shield: Copper tape shield.
Outer Sheath: Polyolefin.
Technical Data
| Rated Voltage Uo/U (Um) | 6/10kV |
| Maximum Conductor Temperature | 90℃ |
| Short Circuit Temperature | 250℃ |
| Operating Temperatures | -20℃~+90℃ |
| Minimum Bending Radius | 18×OD |
| Halogen Free | Yes |
| No Corrosive & Toxic Gases | Yes |
| Low Smoke | Yes |
| Flame Retardant | Yes |
| Impacted Resistant | Yes |
| Weather Resistant | Yes |
| Oil Resistant | Yes |
Dimensions and Weight
| Construction | Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
|---|---|---|---|---|
| No. ×mm² | mm | mm | mm | kg/km |
| 1×6 | 3.5 | 2.0 | 18.0 | 400 |
