These cables are used as airfield lighting equipment primary cables for the series circuit connecting the Constant Current Regulators and the isolating transformers, and between the isolating transformers.
C33-224
C33-225

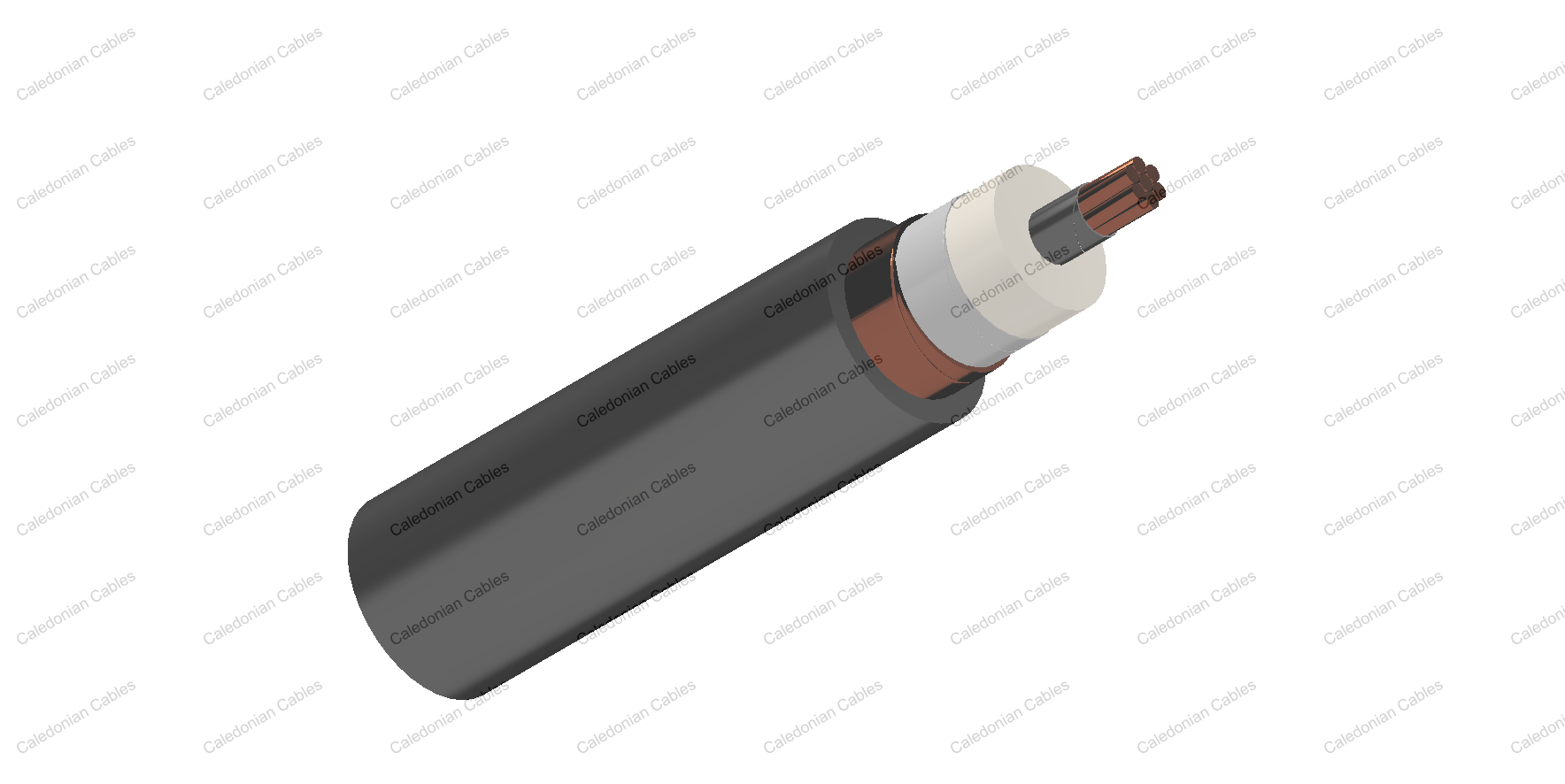

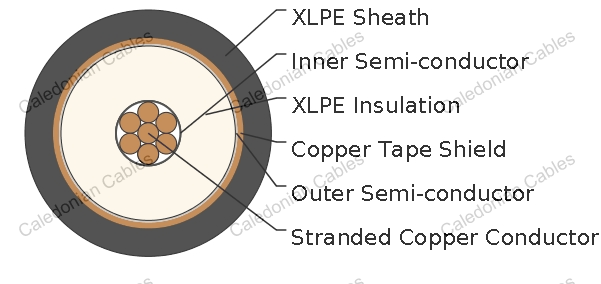

Conductor : Stranded bare or tinned copper conductor.
Inner Semi-Conductor : Extruded semi-conducting compound.
Insulation : XLPE. EPDM can be offered upon request.
Outer Semi-Conductor : Extruded semi-conducting compound.
Shield : Copper tape shield. Copper wire shield can be offered upon request.
Sheath : XLPE. PVC/HFFR/CR can be offered upon request.
| Rated Voltage Uo/U (Um) | 3.6/6 (7.2kV); 6/10 (12kV) |
| Maximum Conductor Temperature | 90℃ |
| Short Circuit Temperature | 250℃ |
| Operating Temperatures | -20℃~+70℃ |
| Minimum Bending Radius | static: 10×OD; dynamic: 20×OD |
| Impacted Resistant | Yes |
| Weather Resistant | Yes |
3.6/6 (7.2kV)
| Construction | No. of Strand | Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
|---|---|---|---|---|---|
| No. ×mm² | - | mm | mm | mm | kg/km |
| 1×6 | 7 | 2.7 | 1.4 | 12.5 | 198 |
6/10 (12kV)
| Construction | No. of Strand | Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
|---|---|---|---|---|---|
| No. ×mm² | - | mm | mm | mm | kg/km |
| 1×6 | 7 | 3.6 | 1.6 | 14.7 | 250 |
