RV-K
应用及描述
这些电缆适用于各类低电压工业型连接,城市电网，建筑安装等。其高柔软性使安装过程非常容易，因此特别适用于复杂的布线使用。它们可以埋葬或安装在管以及室外，也可用于街道照明，电源供应的建筑物，船舶设备和发电机安装使用。这些电缆能够经受住潮湿的条件，甚至是浸泡在水中。
标准及认证
- UNE 21123-2
- IEC 60502
- IEEE 383
- UNE-EN 50265-2-1
- UNE-EN 60502-1
- NF C 32-070

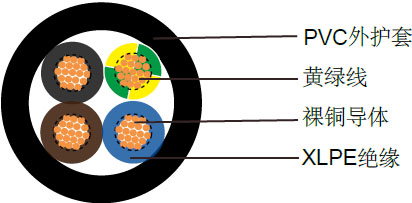

电缆结构
| 多股柔软铜导体 |
| 遵循VDE-0295 Cl 5, IEC 60228 Cl-5 |
| XLPE绝缘，遵循IEC60502 |
| 色彩编码遵循VDE-0293-308 |
| 黑色柔软PVC护套 |
技术特性
| 额定电压 |
600/1000V |
| 温度范围 |
-15°C - +90°C |
| 最小弯曲半径 |
5 x overall diameter |
| 阻燃 |
IEC 60332.1 |
| 绝缘电阻 |
20 MΩ x km |
电缆参数
| 线规 |
芯数 x 导体截面积 |
标称绝缘厚度 |
标称护套厚度 |
标称外径 |
标称电缆重量 |
| |
# x mm² |
mm |
mm |
mm |
kg/km |
| 单芯 |
| 14(50/30) |
1 x 2.5 |
0.7 |
1.4 |
6.2 |
54 |
| 12(56/28) |
1 x 4.0 |
0.7 |
1.4 |
6.7 |
70 |
| 10(84/28) |
1 x 6.0 |
0.7 |
1.4 |
7.3 |
90 |
| 8(80/26) |
1 x 10.0 |
0.7 |
1.4 |
8.2 |
133 |
| 6(128/26) |
1 x 16.0 |
0.7 |
1.4 |
9.2 |
189 |
| 4(200/26) |
1 x 25.0 |
0.9 |
1.4 |
11 |
284 |
| 2(280/26) |
1 x 35.0 |
0.9 |
1.4 |
12.1 |
381 |
| 1(400/26) |
1 x 50.0 |
1 |
1.4 |
13.8 |
517 |
| 2/0(356/24) |
1 x 70.0 |
1.1 |
1.4 |
15.7 |
712 |
| 3/0(485/24) |
1 x 95.0 |
1.1 |
1.5 |
17.6 |
923 |
| 4/0(614/24) |
1 x 120.0 |
1.2 |
1.5 |
19.2 |
1165 |
| 300MCM |
1 x 150.0 |
1.4 |
1.6 |
21.5 |
1446 |
| 350MCM |
1 x 185.0 |
1.6 |
1.7 |
23.9 |
1748 |
| 500MCM |
1 x 240.0 |
1.7 |
1.8 |
26.9 |
2280 |
| - |
1 x 300.0 |
1.8 |
1.8 |
29.6 |
2829 |
| - |
1 x 400.0 |
2 |
2.0 |
33.8 |
3731 |
| - |
1 x 500.0 |
2.2 |
2.2 |
37.4 |
4776 |
| - |
1 x 630.0 |
2.4 |
2.4 |
42.7 |
6276 |
| 两芯 |
| 16(30/30) |
2 x 1.5 |
0.7 |
1.8 |
8.2 |
90 |
| 14(50/30) |
2 x 2.5 |
0.7 |
1.8 |
9.2 |
120 |
| 12(56/28) |
2 x 4.0 |
0.7 |
1.8 |
10.3 |
161 |
| 10(84/28) |
2 x 6.0 |
0.7 |
1.8 |
11.3 |
211 |
| 8(80/26) |
2 x 10.0 |
0.7 |
1.8 |
13.2 |
316 |
| 6(128/26) |
2 x 16.0 |
0.7 |
1.8 |
14.9 |
450 |
| 三芯(包括接电缆) |
| 16(30/30) |
3 x 1.5 |
0.7 |
1.8 |
8.9 |
108 |
| 14(50/30) |
3 x 2.5 |
0.7 |
1.8 |
9.8 |
144 |
| 12(56/28) |
3 x 4.0 |
0.7 |
1.8 |
11 |
198 |
| 10(84/28) |
3 x 6.0 |
0.7 |
1.8 |
12.1 |
263 |
| 8(80/26) |
3 x 10.0 |
0.7 |
1.8 |
14.3 |
405 |
| 三芯 |
| 6(128/26) |
3 x 16.0 |
0.7 |
1.8 |
16.4 |
593 |
| 4(200/26) |
3 x 25.0 |
0.9 |
1.8 |
21.3 |
975 |
| 2(280/26) |
3 x 35.0 |
0.9 |
1.8 |
24.1 |
1319 |
| 1(400/26) |
3 x 50.0 |
1 |
1.8 |
27.8 |
1812 |
| 2/0(356/24) |
3 x 70.0 |
1.1 |
1.9 |
30.8 |
2463 |
| 四芯(包括接地线) |
| 16(30/30) |
4 x 1.5 |
0.7 |
1.8 |
9.7 |
129 |
| 14(50/30) |
4 x 2.5 |
0.7 |
1.8 |
10.7 |
175 |
| 12(56/28) |
4 x 4.0 |
0.7 |
1.8 |
12 |
243 |
| 10(84/28) |
4 x 6.0 |
0.7 |
1.8 |
13.4 |
328 |
| 8(80/26) |
4 x 10.0 |
0.7 |
1.8 |
15.7 |
505 |
| 四芯 |
| 6(128/26) |
4 x 16.0 |
0.7 |
1.8 |
18.2 |
749 |
| 4(200/26) |
4 x 25.0 |
0.9 |
1.8 |
24.1 |
1245 |
| 2(280/26) |
4 x 35.0 |
0.9 |
1.8 |
26.3 |
1671 |
| 1(400/26) |
4 x 50.0 |
1 |
1.8 |
31.3 |
2313 |
| 2/0(356/24) |
4 x 70.0 |
1.1 |
2.0 |
36.1 |
3204 |
| 3/0(485/24) |
4 x 95.0 |
1.1 |
2.2 |
40.2 |
4126 |
| 4/0(614/24) |
4 x 120.0 |
1.2 |
2.4 |
44.6 |
5245 |
| 300MCM |
4 x 150.0 |
1.4 |
2.6 |
49.8 |
6573 |
| 350MCM |
4 x 185.0 |
1.6 |
2.8 |
56.1 |
8050 |
| 500MCM |
4 x 240.0 |
1.7 |
3.0 |
64.5 |
10695 |
| 五芯(包括接地线) |
| 16(30/30) |
5 x 1.5 |
0.7 |
1.8 |
10.4 |
153 |
| 14(50/30) |
5 x 2.5 |
0.7 |
1.8 |
11.6 |
213 |
| 12(56/28) |
5 x 4.0 |
0.7 |
1.8 |
13.2 |
298 |
| 10(84/28) |
5 x 6.0 |
0.7 |
1.8 |
14.7 |
403 |
| 8(80/26) |
5 x 10.0 |
0.7 |
1.8 |
17.2 |
624 |
| 6(128/26) |
5 x 16.0 |
0.7 |
1.8 |
20.2 |
931 |
| 4(200/26) |
5 x 25.0 |
0.9 |
1.8 |
25.6 |
1555 |
| 2(280/26) |
5 x 35.0 |
0.9 |
1.8 |
29.3 |
2076 |
| 1(400/26) |
5 x 50.0 |
1 |
2.0 |
34.5 |
2878 |
