单芯阻燃无卤交联热固性X-HF-110柔软电力线,0.6/1kV
应用及描述
单芯阻燃无卤交联热固性X-HF-110柔软电力线0.6/1kV主要应用于固定安装。
标准
- AS 5000.1
- AS 1125
- AS 3808

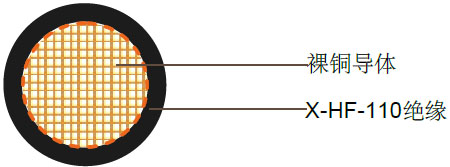

电缆结构
| 导体 |
0.2mm的多股柔软裸铜，遵循AS1125 |
| 绝缘 |
X-HF-110，遵循AS3808 |
| 颜色 |
黑色,红色,蓝色,白色,黄绿色 |
技术特性
| 导体截面积 |
20°C时的电阻 |
2根单芯线的额定电流 |
最高工作温度下电流1Am时的电压降 |
| mm² |
Ohm/km |
AMPS |
单相 |
三相 |
| 0.5 |
39 |
7 |
125 |
107 |
| 1.0 |
19.500 |
25 |
57.4 |
49.70 |
| 1.5 |
13.300 |
32 |
36.85 |
31 .90 |
| 2.5 |
7.980 |
45 |
20.1 |
17.40 |
| 4.0 |
4.950 |
59 |
12.5 |
10.80 |
| 6.0 |
3.300 |
75 |
8.35 |
7.23 |
| 10 |
1.910 |
105 |
4.97 |
4.30 |
| 16 |
1.210 |
135 |
3.13 |
2.71 |
| 25 |
0.780 |
185 |
1.99 |
1.72 |
| 35 |
0.554 |
225 |
1.44 |
1.25 |
| 50 |
0.386 |
275 |
1.07 |
0.929 |
| 70 |
0.272 |
350 |
0.769 |
0.657 |
| 95 |
0.206 |
435 |
0.567 |
0.491 |
| 120 |
0.161 |
510 |
0.465 |
0.403 |
电缆参数
| 导体截面积 |
芯数 |
导体股数/直径 |
标称绝缘厚度 |
标称电缆外径 |
标称电缆重量 |
| mm² |
|
mm |
mm |
mm |
kg/100m |
| 0.5 |
1 |
16/0.2 |
0.7 |
2.40 |
1.10 |
| 1.0 |
1 |
32/0.2 |
0.7 |
2.80 |
1.50 |
| 1.5 |
1 |
30/0.25 |
0.7 |
3.10 |
2.00 |
| 2.5 |
1 |
50/0.25 |
0.7 |
3.60 |
2.90 |
| 4.0 |
1 |
12810.2 |
0.7 |
4.20 |
4.40 |
| 6.0 |
1 |
19210.2 |
0.7 |
4.80 |
6.60 |
| 10 |
1 |
32210.2 |
0.7 |
5.80 |
10.50 |
| 16 |
1 |
511/0.2 |
0.7 |
6.90 |
16.10 |
| 25 |
1 |
78410.2 |
0.9 |
8.70 |
28.80 |
| 35 |
1 |
1120/0.2 |
0.9 |
9.60 |
36.30 |
| 50 |
1 |
1568/0.2 |
1.0 |
11.20 |
49.50 |
| 70 |
1 |
2240/0.2 |
1.1 |
13.20 |
70.10 |
| 95 |
1 |
3040/0.2 |
1.1 |
15.00 |
94.20 |
| 120 |
1 |
3800/0.2 |
1.2 |
16.70 |
116.80 |
