MFX300 0.6/1 kV Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed Fire Resistant Power & Control Cables (Single Core)

Applications

These unarmoured fire resistant cables are used on board of ships in all locations for fixed installations where cable protection is not required. These cables are fire resistant, flame retardant, low smoke & halogen free.

Standards

  • IEC 60092-350/351/353/359
  • IEC 60331-21
  • IEC 60332-1
  • IEC 60332-3-22
  • IEC 60754-1/2
  • IEC 61034

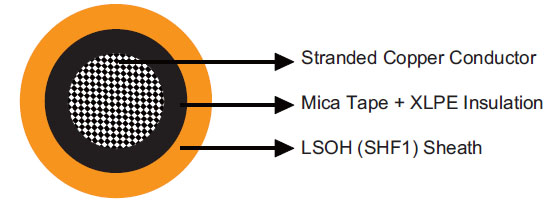

Construction

  MFX300 0.6/1 kV Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed Fire Resistant Power & Control Cables (Single Core)
Conductors Class 2 stranded copper conductor, round or sector shaped.
  Class 5 stranded conductors can be offered upon request.
Insulation Mica tape + XLPE
Outer Sheath LSOH (SHF1). SHF2 can be offered upon request.

Core Identification

Single core Black

Mechanical and Thermal Properties

Bending Radius for Fixed Installations 6×OD(OD>25mm)
  4×OD (OD ≤25mm)
Temperature Range -30℃ ~ +80℃

Dimensions and Weight

MFX300 1mRZ1-R Single Core 0.6/1kV (-R stands for class 2 conductor. For class 5 conductor, please change –R to –F)

Part No. Construction No. of cores×Cross section Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
  mm² mm mm mm kg/km
MFX300-1mRZ1-R-1C25 1×25 0.9 1.1 10.7 310
MFX300-1mRZ1-R-1C35 1×35 0.9 1.1 12.0 410
MFX300-1mRZ1-R-1C50 1×50 1.0 1.2 13.6 560
MFX300-1mRZ1-R-1C70 1×70 1.1 1.3 15.8 780
MFX300-1mRZ1-R-1C95 1×95 1.1 1.3 17.7 1030
MFX300-1mRZ1-R-1C120 1×120 1.2 1.4 19.7 1290
