| EPR/HFXLEVA LSOH 0.6/1kV Torsion Resistant Power Cable |  |
|
|
Windmill Cables
Application
These screened cables are designed for flexible use for medium mechanical stresses as measuring and control cables in tool machines, conveyor belts, production lines; for plant installations, air conditioning, in steel production plants and rolling mills, suitable for dry, moist and wet rooms as well as outside (fixed installation).
Standards
DIN VDE 0262/12.95
DIN VDE 0281 part 13

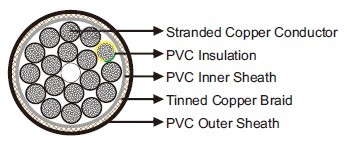

Construction
Conductor: Stranded bare copper, class 5 according to DIN VDE 0295/IEC60228.
Insulation: PVC Type TI 2
Inner Sheath: PVC.
Screen: Tinned copper braid.
Outer Sheath: PVC Type TM 2.
Technical Data
Rated Voltage Uo/U (Um) |
600/1000V |
Operating Temperatures |
flexing: -5℃~+80℃; fixed: -40℃~+90℃ |
Minimum Bending Radius |
flexing: 10×OD; fixed: 5×OD |
Flame Retardant |
VDE 0482-332-1-2/DIN EN 60332-1-2/IEC 60332-1 |
Oil Resistant |
Yes |
Silicone Free |
Yes |
UV Resistant |
Yes |
Dimensions and Weight
Construction |
Nominal Overall Diameter |
Nominal Weight |
No. of coresGmm² |
mm |
kg/km |
2×0.5 |
8.5 |
129 |
3G0.5 |
8.8 |
150 |
4G0.5 |
9.6 |
170 |
5G0.5 |
10.2 |
199 |
7G0.5 |
11.1 |
235 |
12G0.5 |
14.0 |
320 |
18G0.5 |
16.2 |
428 |
25G0.5 |
19.2 |
503 |
2×0.75 |
8.8 |
143 |
3G0.75 |
9.3 |
155 |
4G0.75 |
9.9 |
190 |
5G0.75 |
10.8 |
228 |
7G0.75 |
11.5 |
323 |
12G0.75 |
14.6 |
410 |
18G0.75 |
17.1 |
560 |
25G0.75 |
20.3 |
730 |
2×1 |
9.4 |
150 |
3G1 |
9.8 |
163 |
4G1 |
10.4 |
200 |
5G1 |
11.4 |
239 |
7G1 |
12.5 |
289 |
12G1 |
15.7 |
464 |
18G1 |
18.4 |
628 |
25G1 |
21.8 |
855 |
2×1.5 |
10.4 |
162 |
3G1.5 |
11.1 |
187 |
4G1.5 |
11.8 |
240 |
5G1.5 |
13.1 |
289 |
7G1.5 |
14.2 |
383 |
12G1.5 |
18.4 |
592 |
18G1.5 |
21.5 |
806 |
25G1.5 |
25.6 |
1241 |
2×2.5 |
11.8 |
272 |
3G2.5 |
12.7 |
298 |
4G2.5 |
13.8 |
345 |
5G2.5 |
15.1 |
427 |
7G2.5 |
16.3 |
561 |
12G2.5 |
21.3 |
857 |
18G2.5 |
25.4 |
1355 |
25G2.5 |
30.0 |
1995 |
2×4 |
14.2 |
306 |
3G4 |
15.1 |
391 |
4G4 |
16.2 |
527 |
5G4 |
18.0 |
700 |
7G4 |
19.8 |
920 |
12G4 |
25.8 |
1510 |
2×6 |
15.9 |
420 |
3G6 |
16.9 |
629 |
4G6 |
18.7 |
731 |
5G6 |
20.4 |
1105 |
7G6 |
22.2 |
1465 |
2×10 |
18.3 |
845 |
3G10 |
19.2 |
1125 |
4G10 |
21.2 |
1345 |
5G10 |
23.2 |
1635 |
7G10 |
26.8 |
2210 |
2×16 |
22.8 |
1150 |
3G16 |
24.7 |
1395 |
4G16 |
27.0 |
1870 |
5G16 |
30.0 |
2720 |
7G16 |
32.2 |
3213 |
3G25 |
29.2 |
2465 |
4G25 |
32.0 |
2750 |
5G25 |
35.7 |
3490 |
7G25 |
39.0 |
4980 |
3G35 |
32.3 |
3230 |
4G35 |
35.8 |
4100 |
5G35 |
39.5 |
4950 |
3G50 |
39.7 |
4590 |
4G50 |
43.4 |
5780 |
5G50 |
47.8 |
7210 |
3G70 |
44.9 |
5610 |
4G70 |
49.1 |
7480 |
5G70 |
53.8 |
9390 |
3G95 |
49.6 |
8585 |
4G95 |
54.1 |
10220 |
5G95 |
57.7 |
13800 |
3G120 |
51.5 |
11105 |
4G120 |
59.4 |
13750 |
4G150 |
67.9 |
15990 |
4G185 |
74.0 |
18470 |
G: with green-yellow earth core
×: without green-yellow earth core
